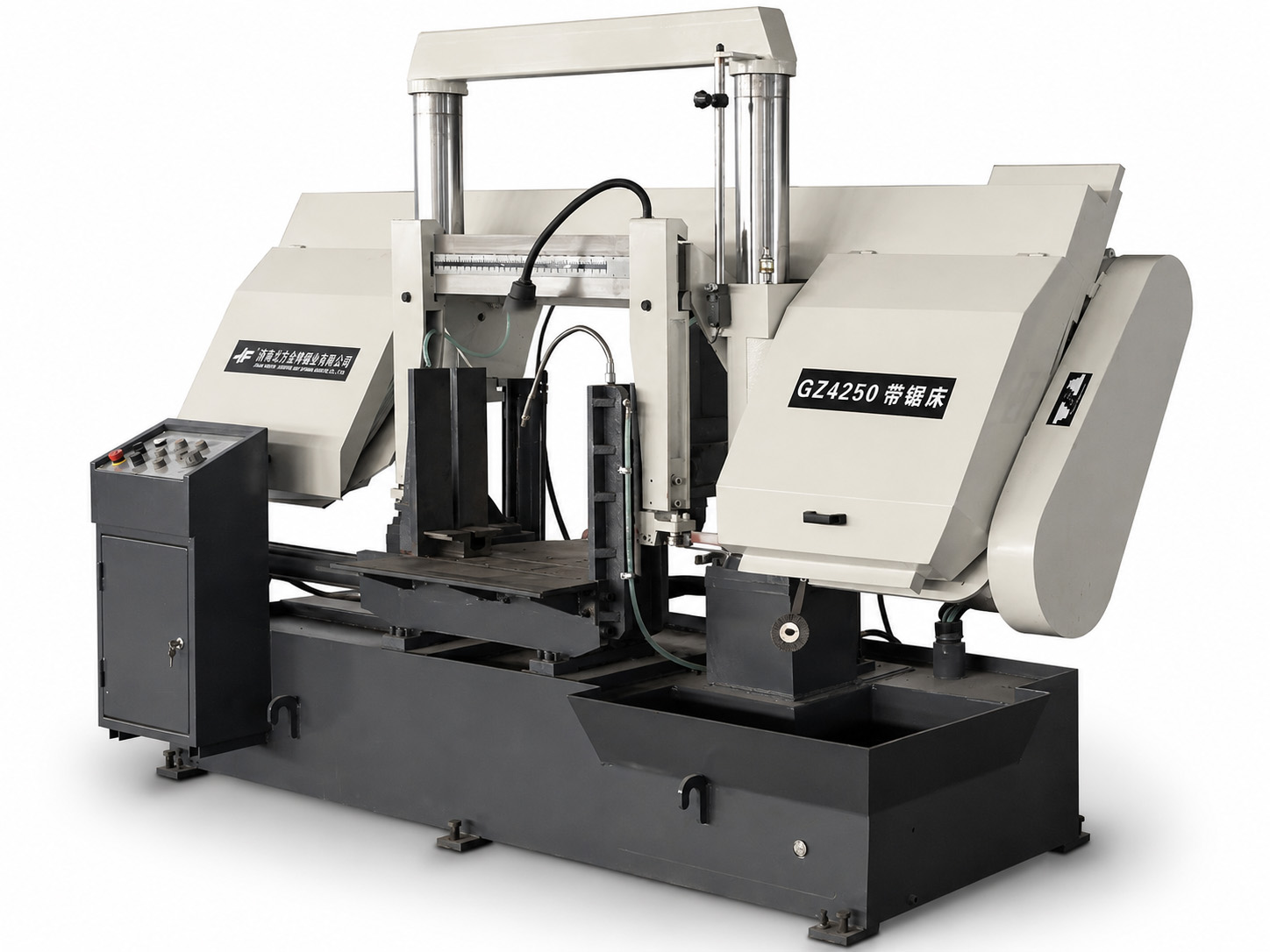

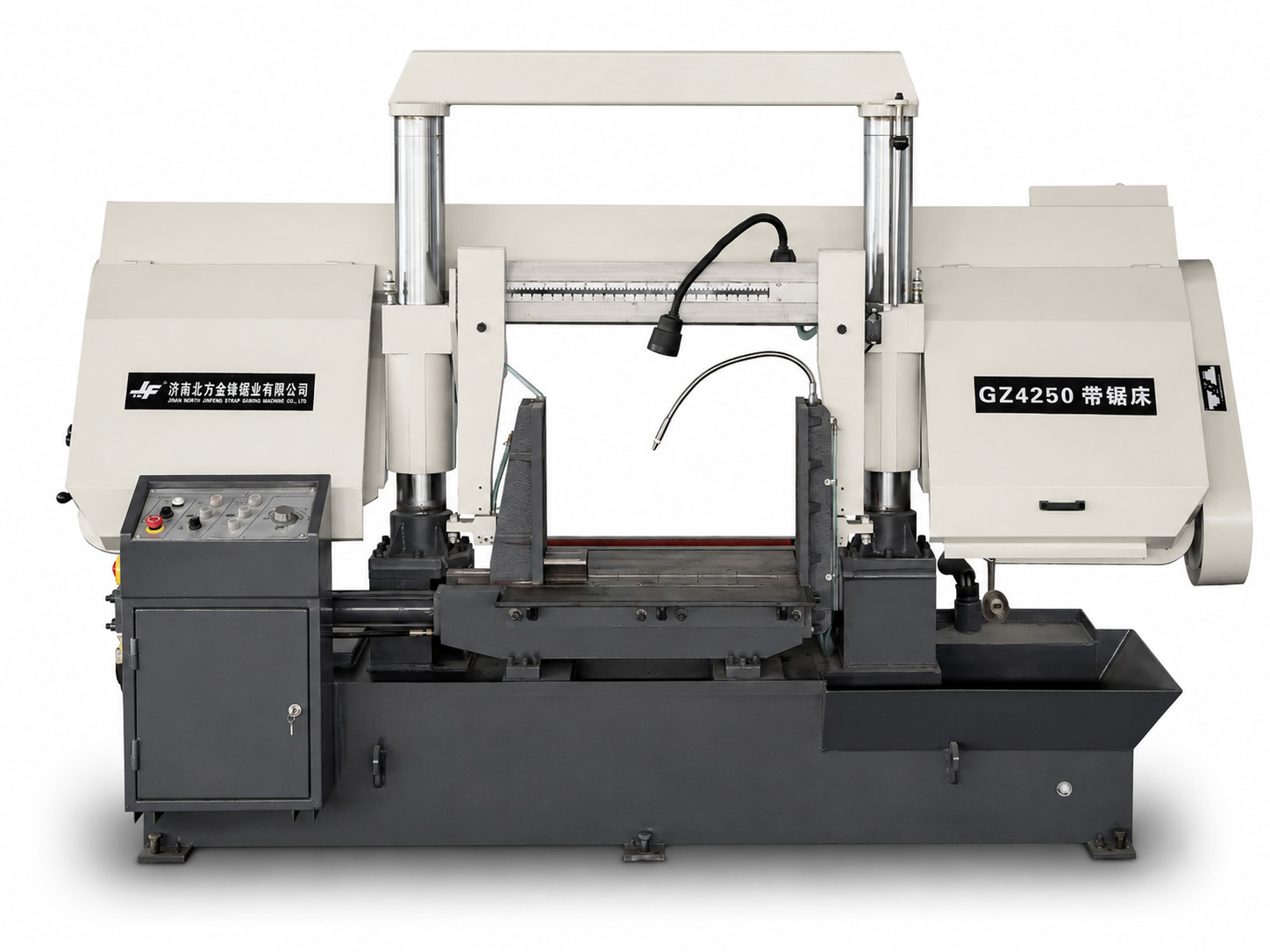

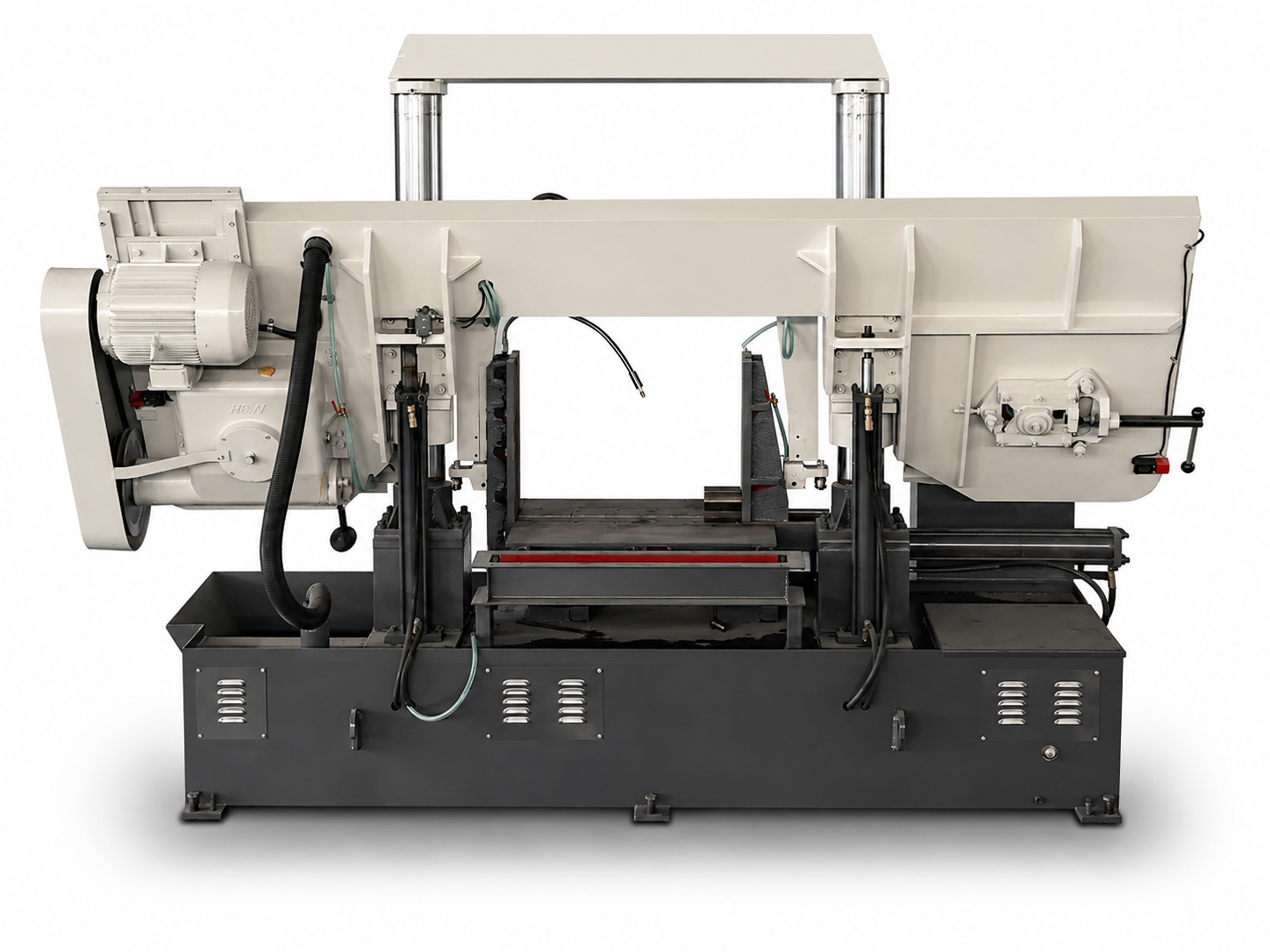

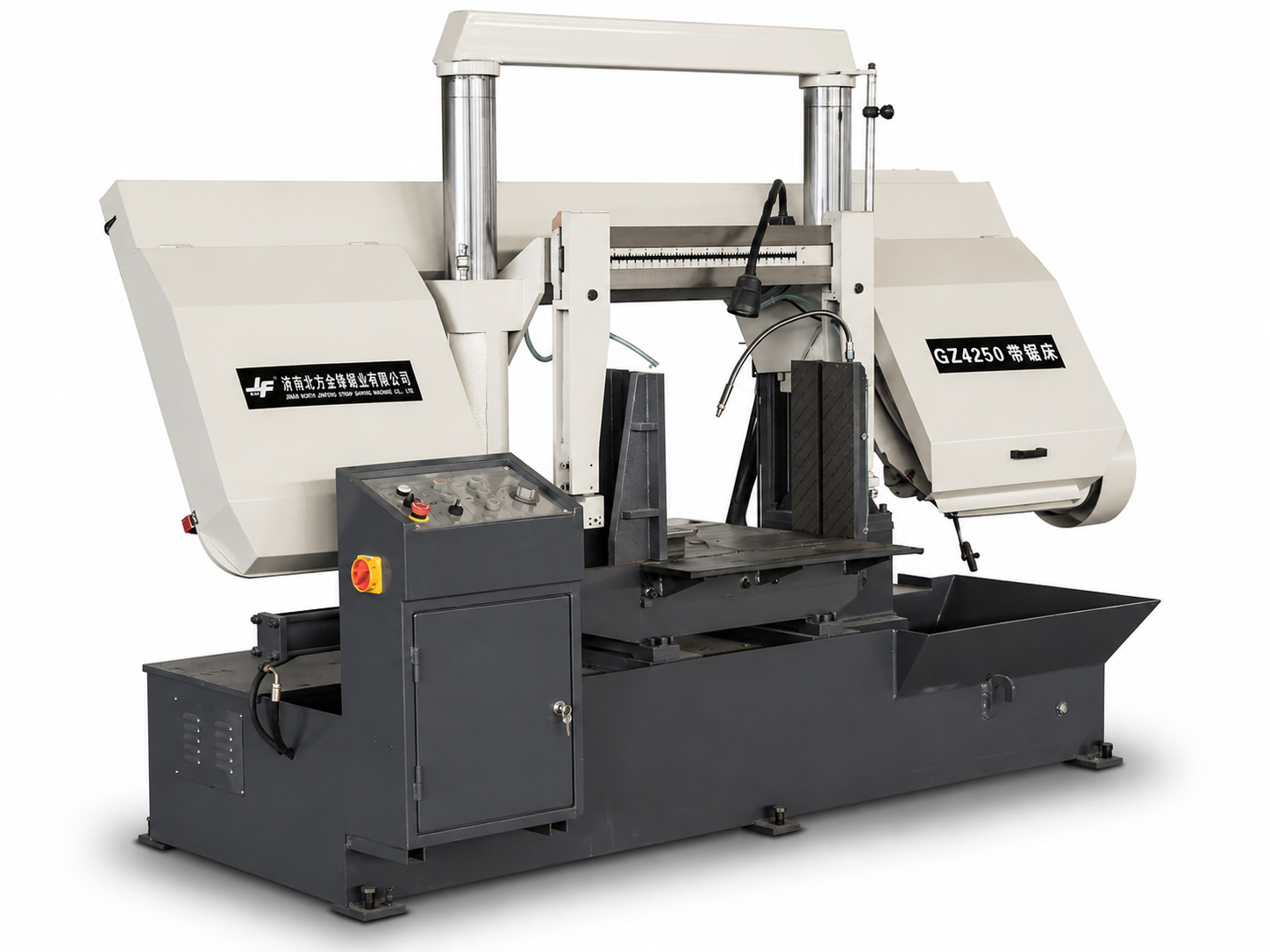

Semi automatic double column horizontal band saw machine designed for stable and efficient metal cutting applications.
Features:
✓ Double column structure based on Taiwan technology ensures stable cutting performance and high guiding accuracy. ✓ Hydraulic vise clamping system prevents workpiece loosening during cutting and protects the saw blade from damage. ✓ Steel brush chip cleaning system effectively removes chips from blade teeth and extends blade service life. ✓ Precision-balanced transmission mechanism reduces vibration and helps prevent tooth damage or blade stripping.
Typical Applications:
Mainly designed for cutting metal bars, solid materials, square materials, and structural steel sections. Suitable for medium and large-size metal cutting applications in fabrication workshops, machinery manufacturing, and industrial processing industries.
MODEL
GZ4250
Maximum Cutting Capacity(mm)
● Φ500mm
■ 500×500mm
Minimum Cutting Capacity(mm)
● Φ0mm ■ 0×0mm
Main Motor Power(kw)
4.0kw
Hydraulic Motor Power(kw)
0.75kw
Cooling Motor Power(kw)
0.09kw
Saw Blade Speed(m/min)
40/60/80m/min
Saw Blade Size(mm)
5370×41×1.3mm
Saw Blade Tension
Manual
Machine Size(L×W×H)
2600×1200×1800mm
Weight(kg)
1800kg
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
