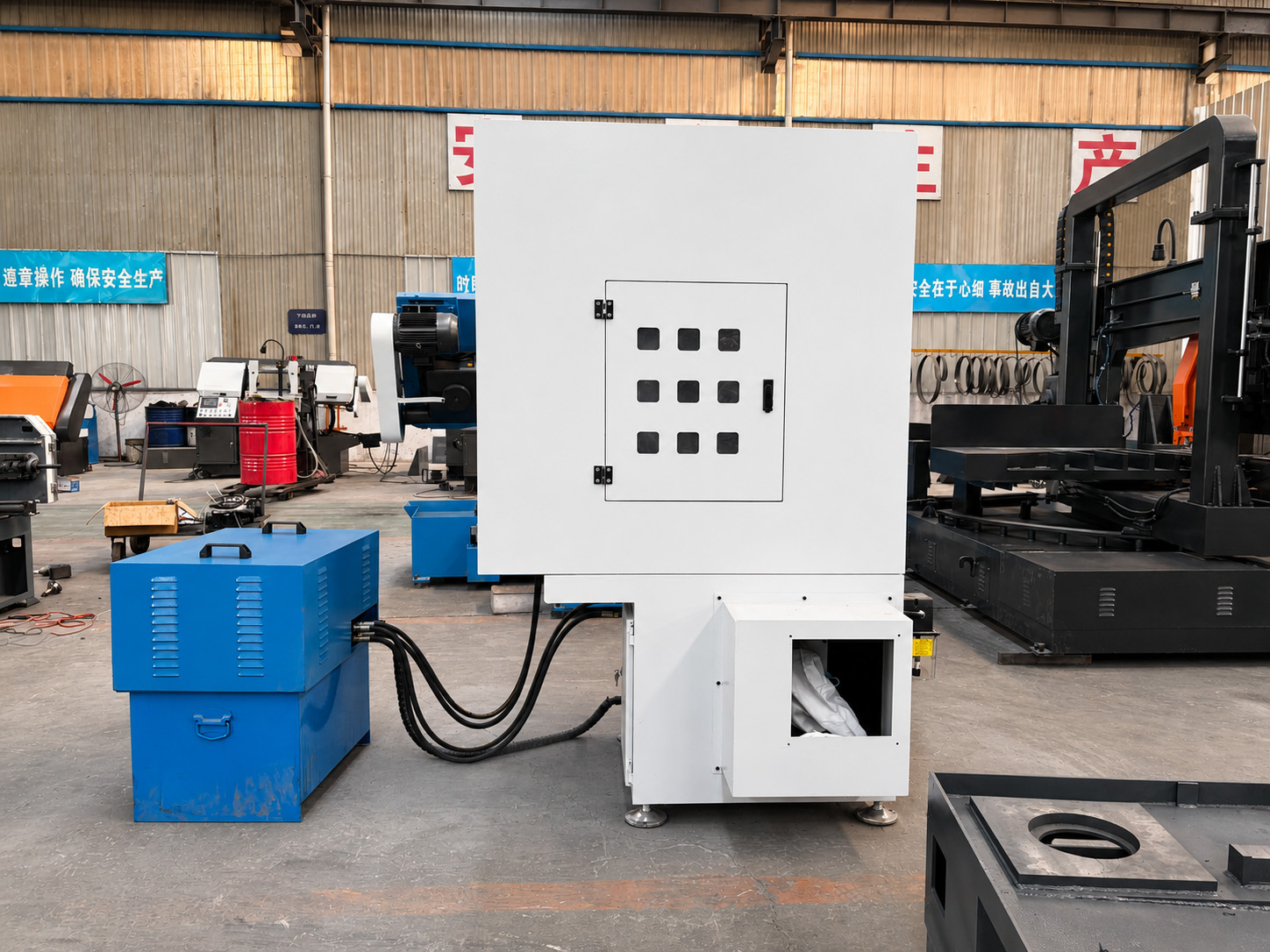

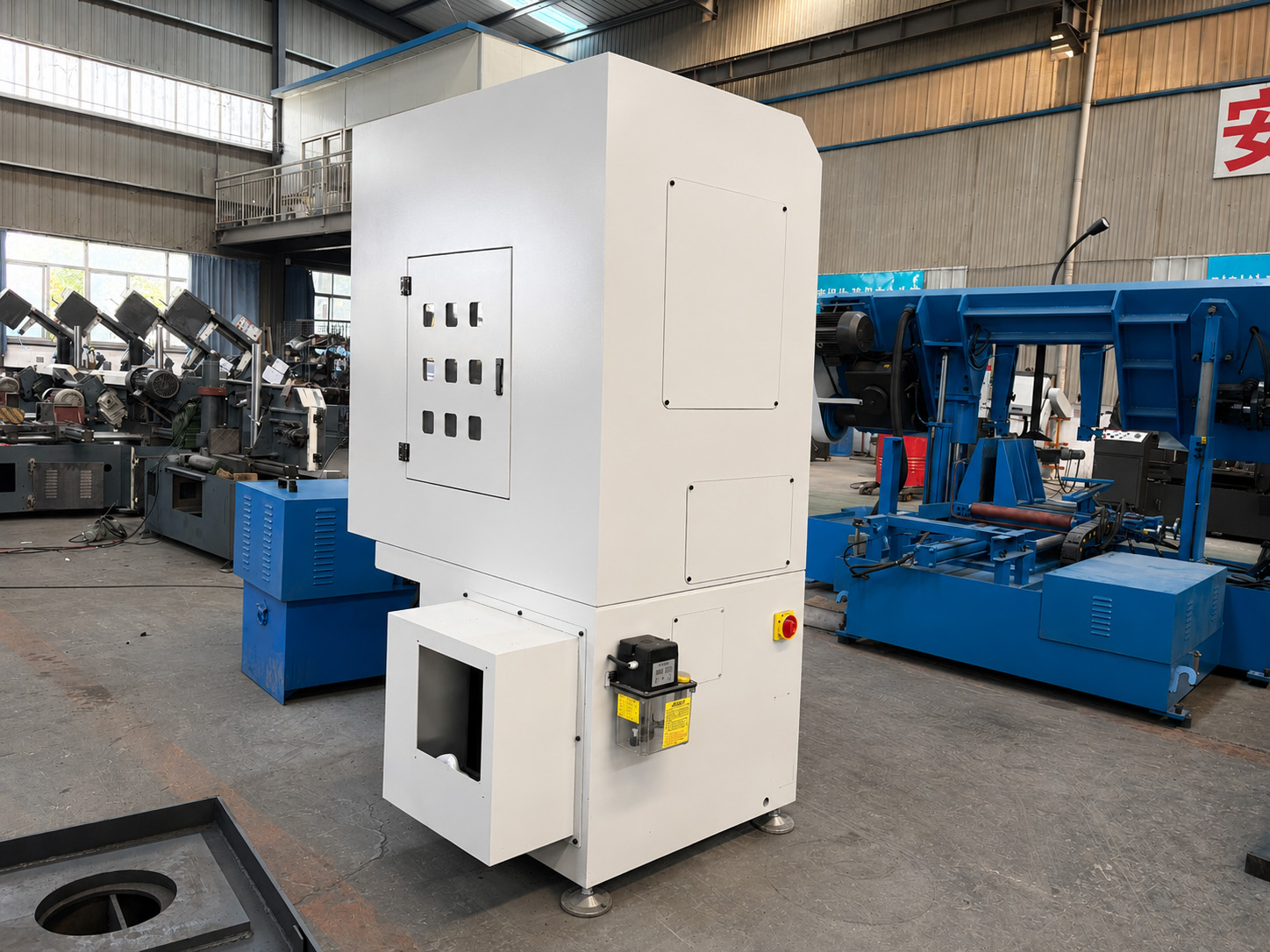

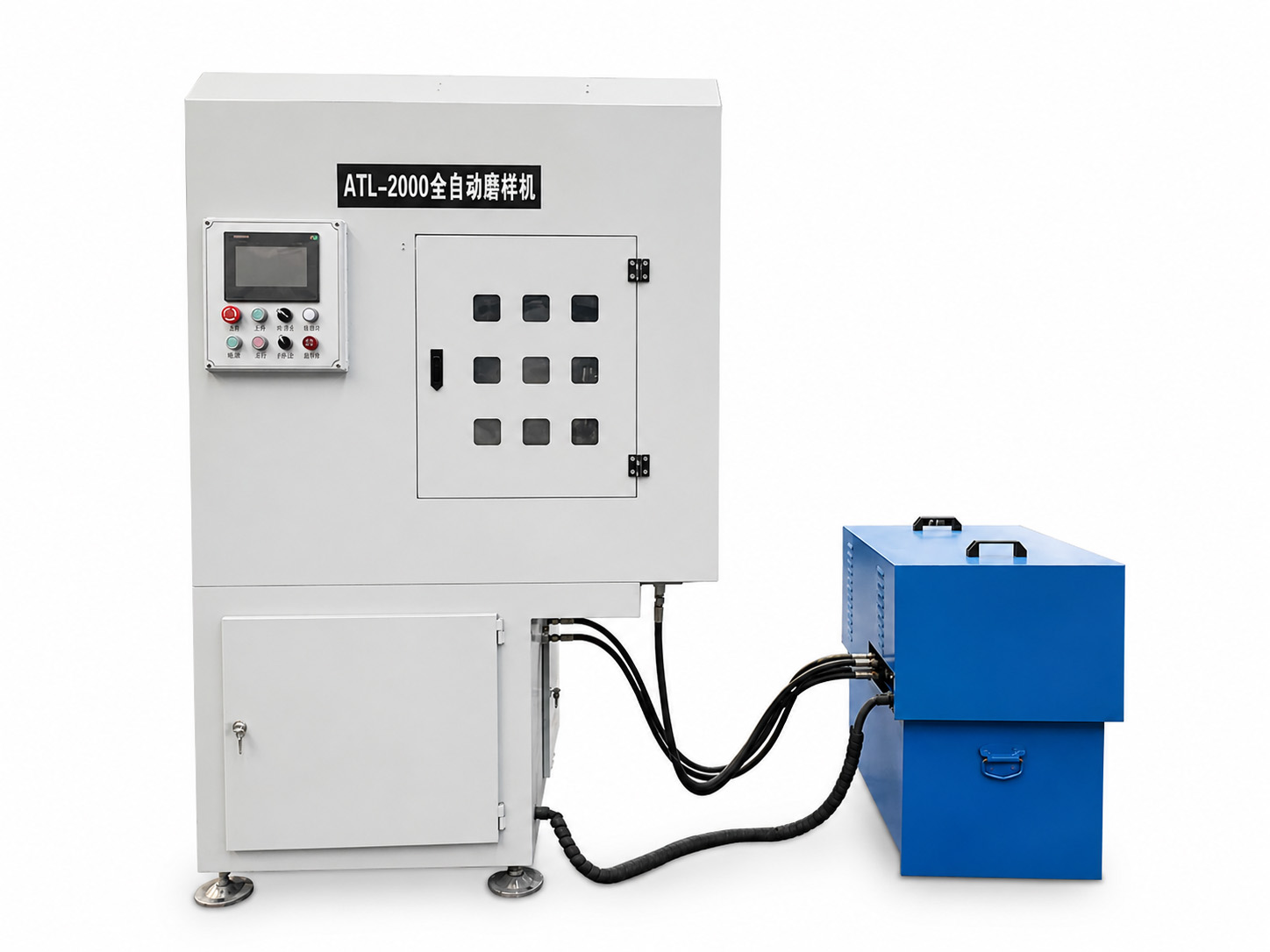

Fully Enclosed Automatic Grinding Sample Machine ATL-200D automatic cup wheel grinding sample machine is designed for grinding and preparation of cast iron and steel samples for spectral analysis. The machine adopts a fully enclosed structure with an independent dust removal system to ensure a clean working environment and stable operation.
Features:

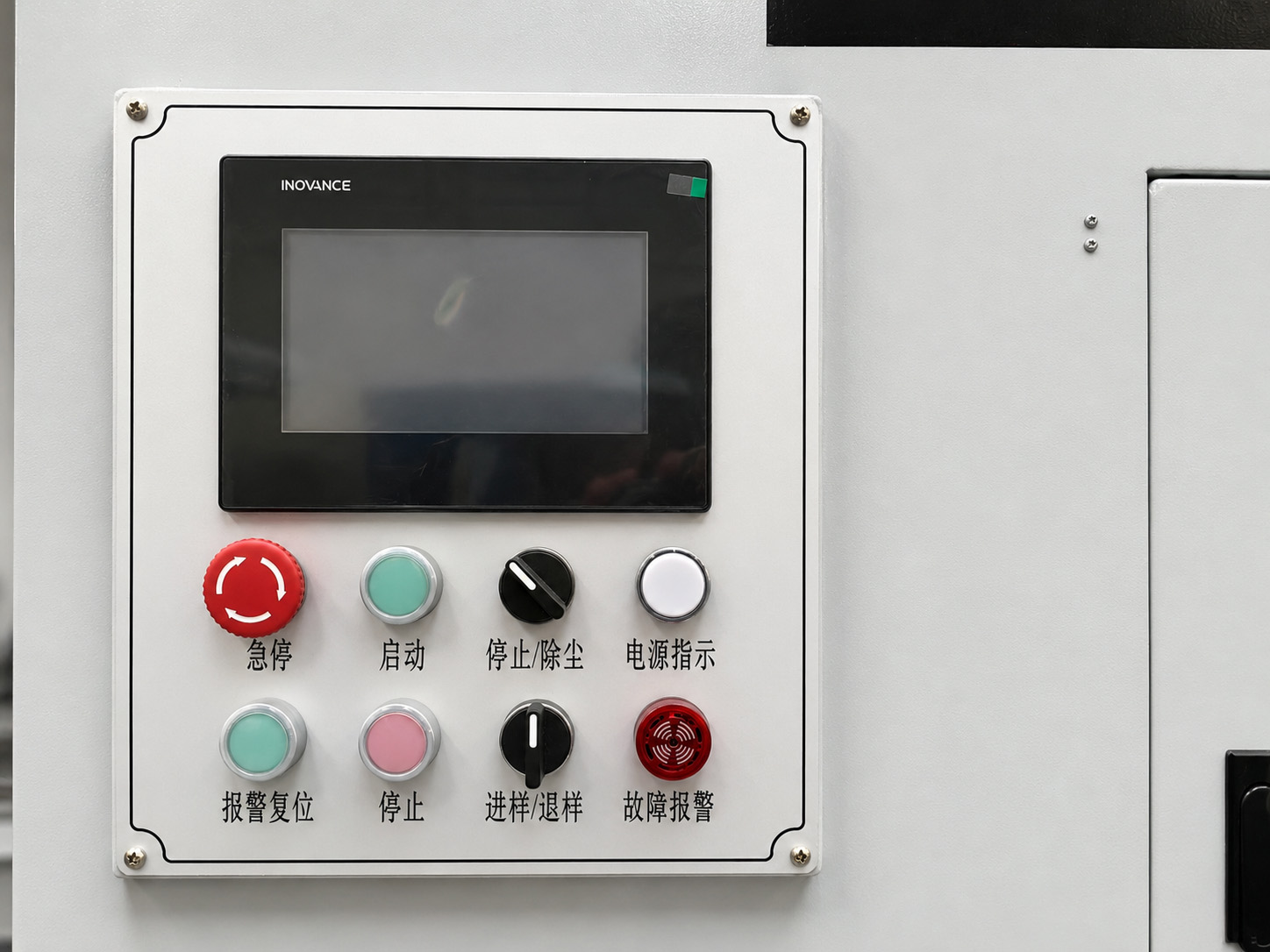

✓ Fully enclosed grinding structure with dust isolation design. ✓ Equipped with dust collector and silencing device for low-noise operation. ✓ Automatic sample feeding and automatic sample return. ✓ PLC control system with adjustable grinding depth and grinding speed. ✓ Supports rough grinding and fine grinding programs. ✓ Automatic clamping system with hydraulic control. ✓ Hardware self-diagnosis and automatic alarm functions. ✓ High grinding efficiency with smooth sample surface finish. ✓ Cup wheel automatic positioning structure for stable grinding accuracy. ✓ Human-machine interface control panel for convenient operation.
Typical Applications:
Mainly designed for preparation of steel and cast iron samples used in atomic emission spectrometers and XRF fluorescence spectrometers. Suitable for metallurgical production process sample preparation and rapid composition analysis applications. The machine is capable of automatic grinding for cylindrical samples with stable accuracy and high surface quality.
MODEL
ATL-200D
Sample Shape
Cylindrical
Sample Diameter
20-60mm
Sample Height
8-60mm
Maximum Grinding Depth
2mm
Grinding Time
3-5s
Grinding Amount Per Pass
0.05-0.2mm Adjustable
Surface Roughness
≤Ra6.3
Reciprocating Stroke
120mm
Clamping Type
Automatic Hydraulic Clamping
Grinding Wheel Motor Power
5.5KW
Grinding Wheel Motor Speed
2800rpm
Grinding Wheel Feed Servo Motor
1.5KW / 2500rpm
Hydraulic Pump Motor
1.5KW / 1400rpm
Hydraulic Pressure
12Mpa
Left-Right Feed Servo Motor
750W / 2500rpm
Grinding Wheel Size
φ200×100×100mm
Grinding Wheel Mesh
24 Mesh Or 36 Mesh
Feeding Method
Automatic
Feeding Position
Front Right Side
Discharge Method
Automatic
Applicable Materials
Steel And Cast Iron
Machine Size (L×W×H)
1200×1000×1700mm
Reserved Maintenance Space
800mm Around Machine
Main Components
Machine Frame, Hydraulic Station, Clamping System, Grinding Mechanism, Electrical Control Unit, Operation Panel
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
