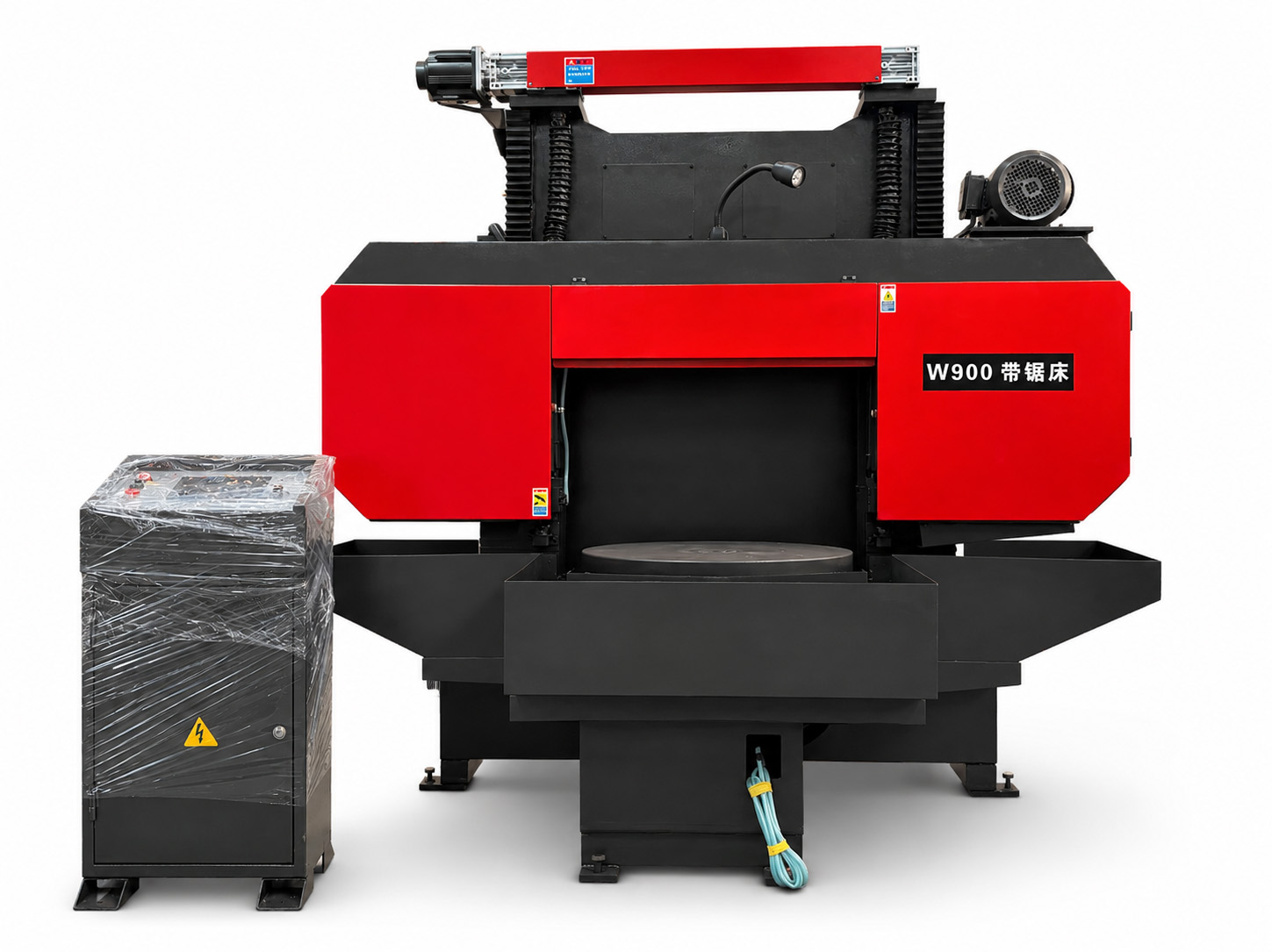

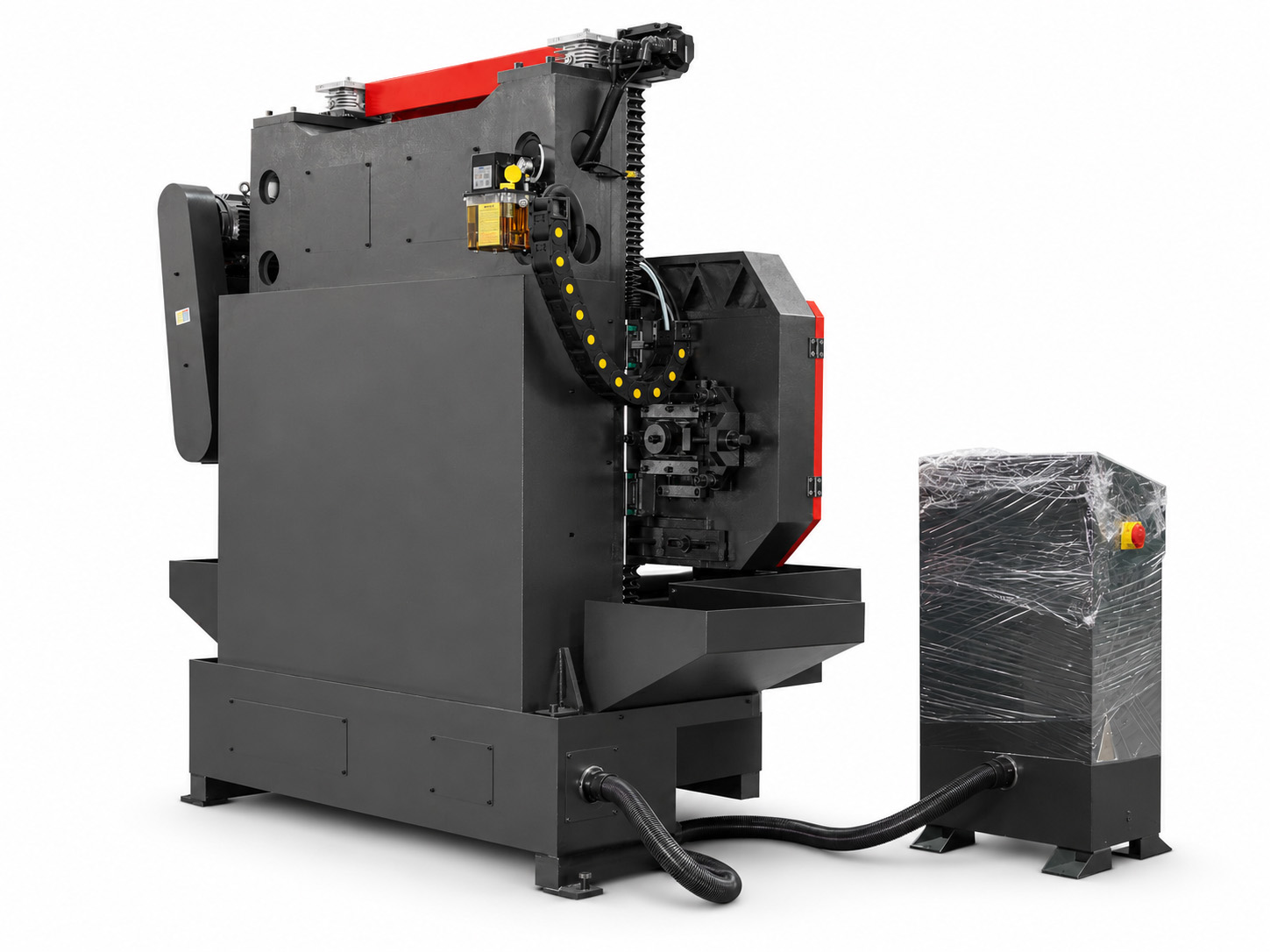

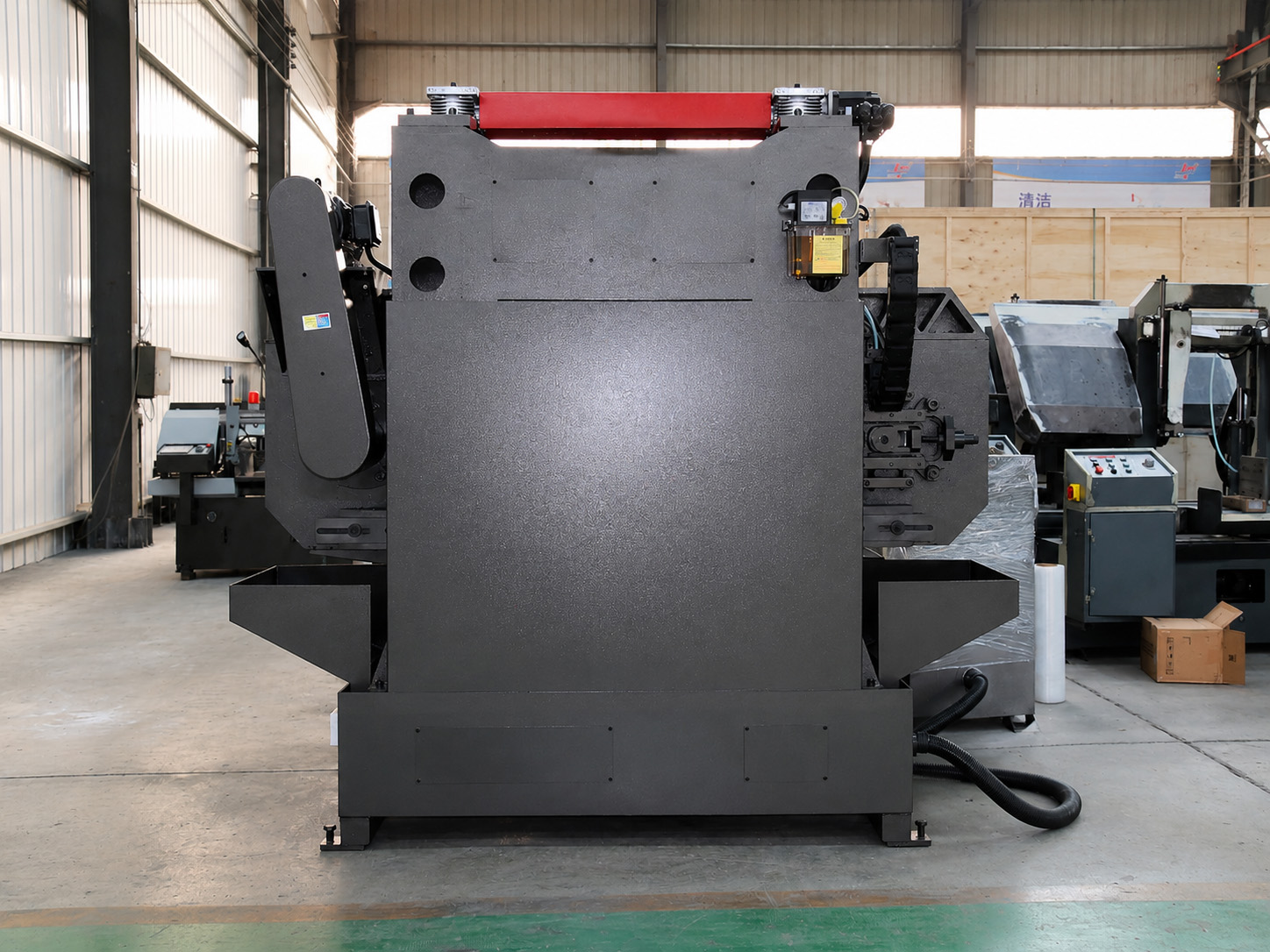

High Precision Jade Cutting Band Saw Machine The W900 high precision band saw machine is mainly designed for horizontal cutting of jade raw materials and stone materials. It features high cutting precision, narrow kerf cutting, energy saving, material saving, and simple operation. The machine adopts a double-column gantry horizontal structure with a full cast iron body. All castings are heat treated and precision machined to ensure stable cutting performance and high machining accuracy. The equipment is controlled by a CNC touch screen system and equipped with a special diamond abrasive band saw blade, making it suitable for high precision batch cutting applications.
Features:

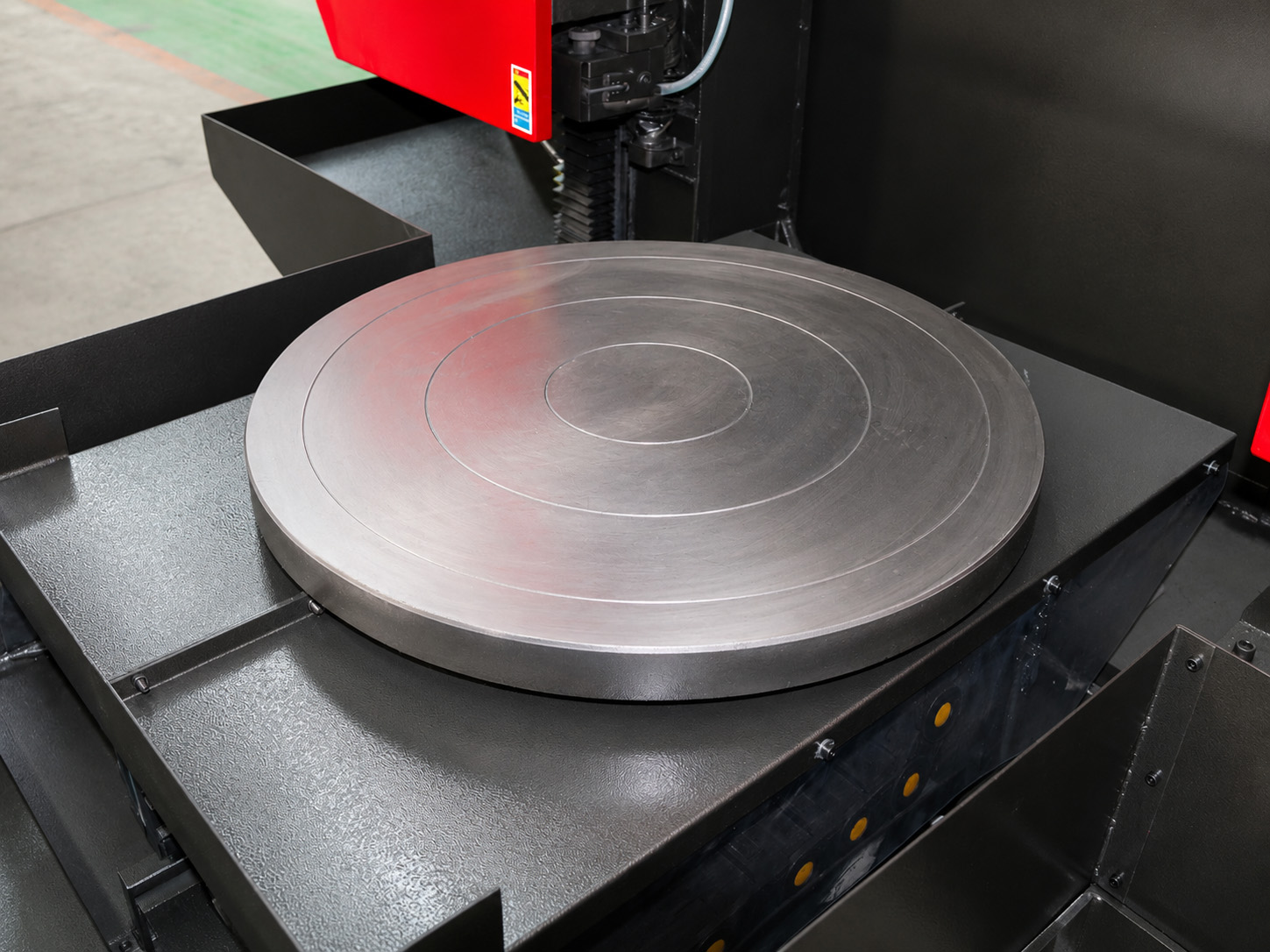

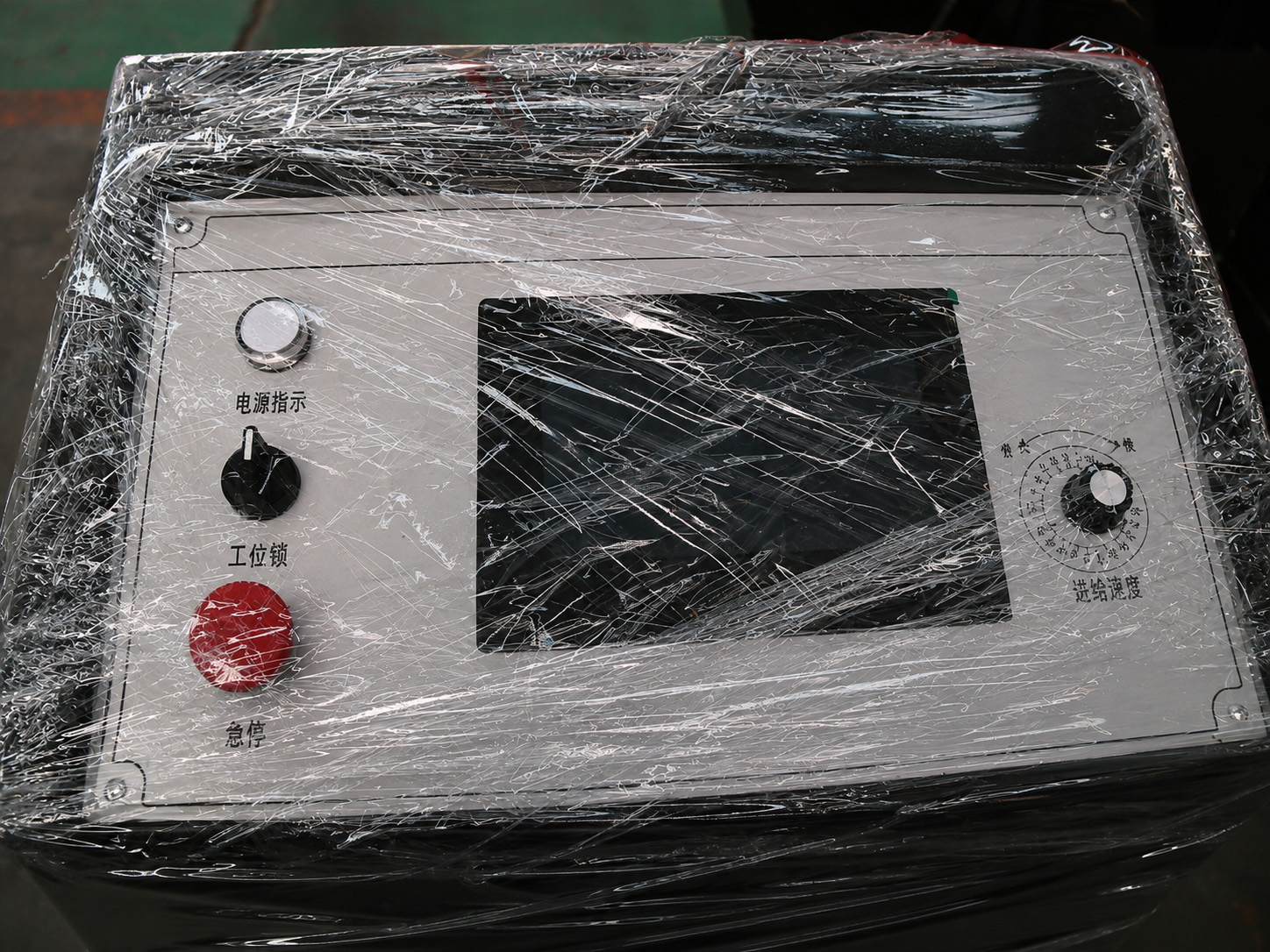

✓ Full cast machine structure with heat treatment process for high rigidity and stable operation. ✓ CNC touch screen control system for convenient operation and high cutting precision. ✓ Servo motor, ball screw drive, and linear guide rail structure. ✓ Horizontal cutting and rotary cutting dual-function selection. ✓ Variable frequency blade speed adjustment from 500-1500m/min. ✓ Servo-controlled 360° rotary worktable with digital speed control. ✓ Diamond abrasive band saw blade for precision jade cutting applications. ✓ Independent cooling system with external water tank and dual-stage filtration.
Typical Applications:
Mainly designed for horizontal cutting and rotary cutting of jade raw materials and stone materials. Suitable for precision cutting applications requiring stable accuracy and smooth cutting performance.
MODEL
W900
Maximum Cutting Capacity(mm)
Height ≤450mm / Width ≤900mm
Throat Depth(mm)
370mm
Worktable Travel(mm)
500mm
Control Method
CNC Touch Screen Control
Saw Blade Size(mm)
50×0.65mm
Saw Blade Speed(m/min)
500-1500m/min (Variable Frequency Speed Control)
Main Drive Method
Multi-rib Belt Drive
Cutting Feed Method
Servo Motor Parametric Control
Saw Blade Tension
Manual
Workpiece Fixing Method
Bonding
Input Power Voltage
AC380V 50Hz
Main Motor Power
4kW
Hydraulic Motor Power
None
Servo Motor Power
1.3KW / 0.75KW / 1.5KW
Cooling Pump Power
80W
Cooling Tank Capacity
50L
Rotary Worktable Size(mm)
Φ700mm
Worktable Rotation
Servo Controlled 360° Arbitrary Rotation
Worktable Load Capacity
1000KG
Machine Weight
Approx. 2.3 Tons
Machine Size(L×W×H)
Approx. 1655×2280×2150mm
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
