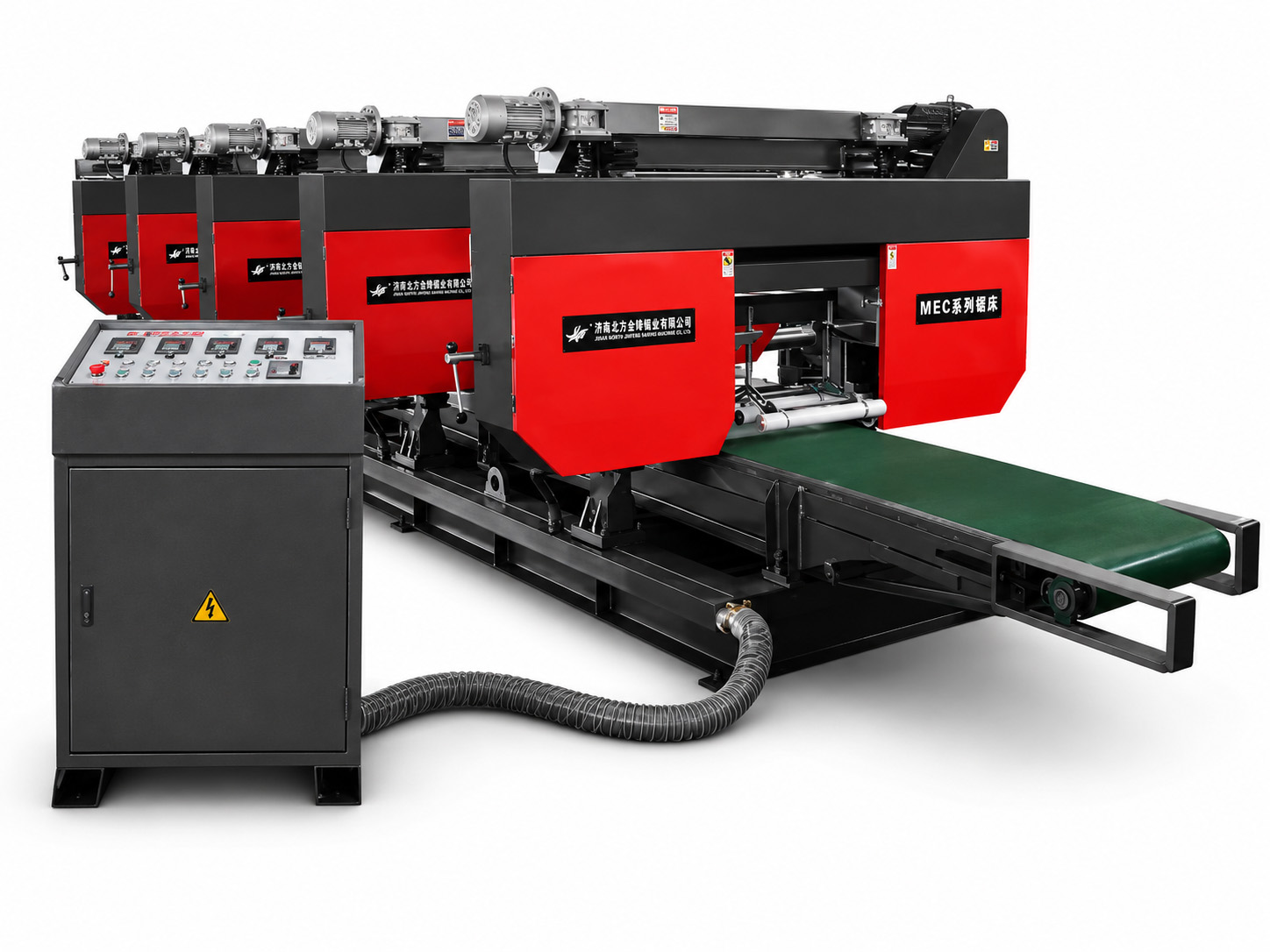

W-600 Multi-head Horizontal Cutting Band Saw Machine The W-600 series band saw machine is mainly designed for horizontal cutting of fiber boards and panel materials. It features high cutting efficiency, energy saving, narrow kerf cutting, material saving, and simple operation. The machine adopts a horizontal cross-cutting structure with a multi-head design and conveyor feeding system, improving both cutting efficiency and cutting precision. It is an ideal solution for batch cutting applications.
Features:
✓ Horizontal cross-cutting structure with multi-head sawing design. ✓ Conveyor feeding system improves cutting efficiency and processing accuracy. ✓ Variable frequency blade speed adjustment from 200-1000m/min. ✓ Cutting speed controlled by inverter with adjustable feeding speed. ✓ Independent control for each saw frame allows flexible thickness adjustment. ✓ Carbide side guides and bearing guide structure improve blade stability and extend blade service life. ✓ Equipped with five dust collectors for cleaner operation.
Typical Applications:
Mainly designed for horizontal cutting of fiber boards and panel materials. Suitable for continuous batch cutting applications requiring high efficiency and stable cutting precision.
MODEL
W-600
Maximum Cutting Capacity(mm)
Height ≤300mm Width ≤600mm
Saw Blade Size(mm)
27×0.9mm
Saw Blade Speed(m/min)
200-1000m/min (Variable Frequency Speed Control)
Cutting Speed
0-5m/min Variable Frequency Speed Control
Worktable
Conveyor Belt
Saw Frame Movement
Motor & Lead Screw
Saw Blade Tension
Manual
Input Power Voltage
AC 380V 50Hz
Main Motor Power
4kW × 5 Sets
Conveyor Motor Power
750W
Feeding Conveyor Size(mm)
600 × 8200
Dust Collection System
Equipped with 5 Dust Collectors
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
