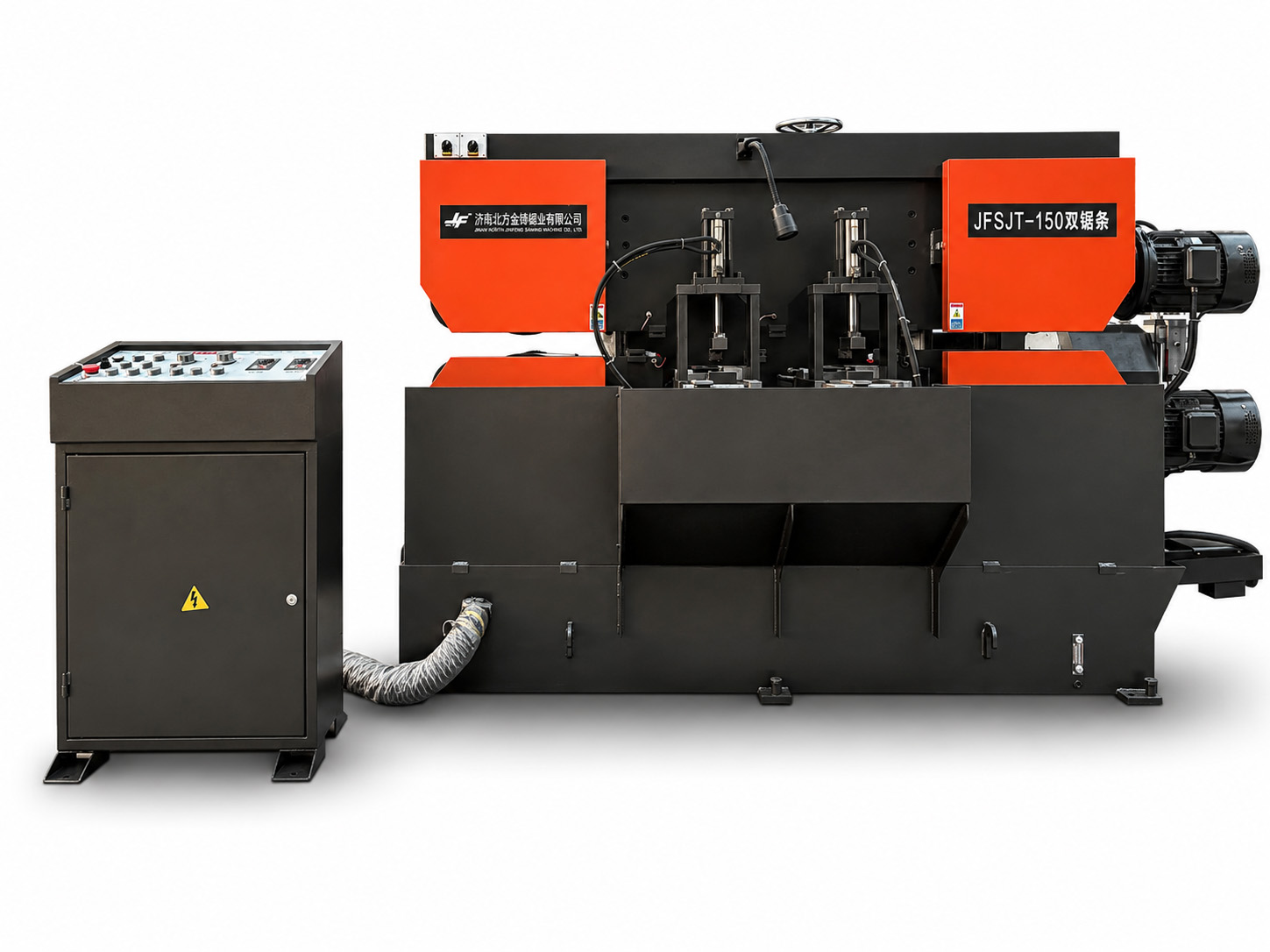

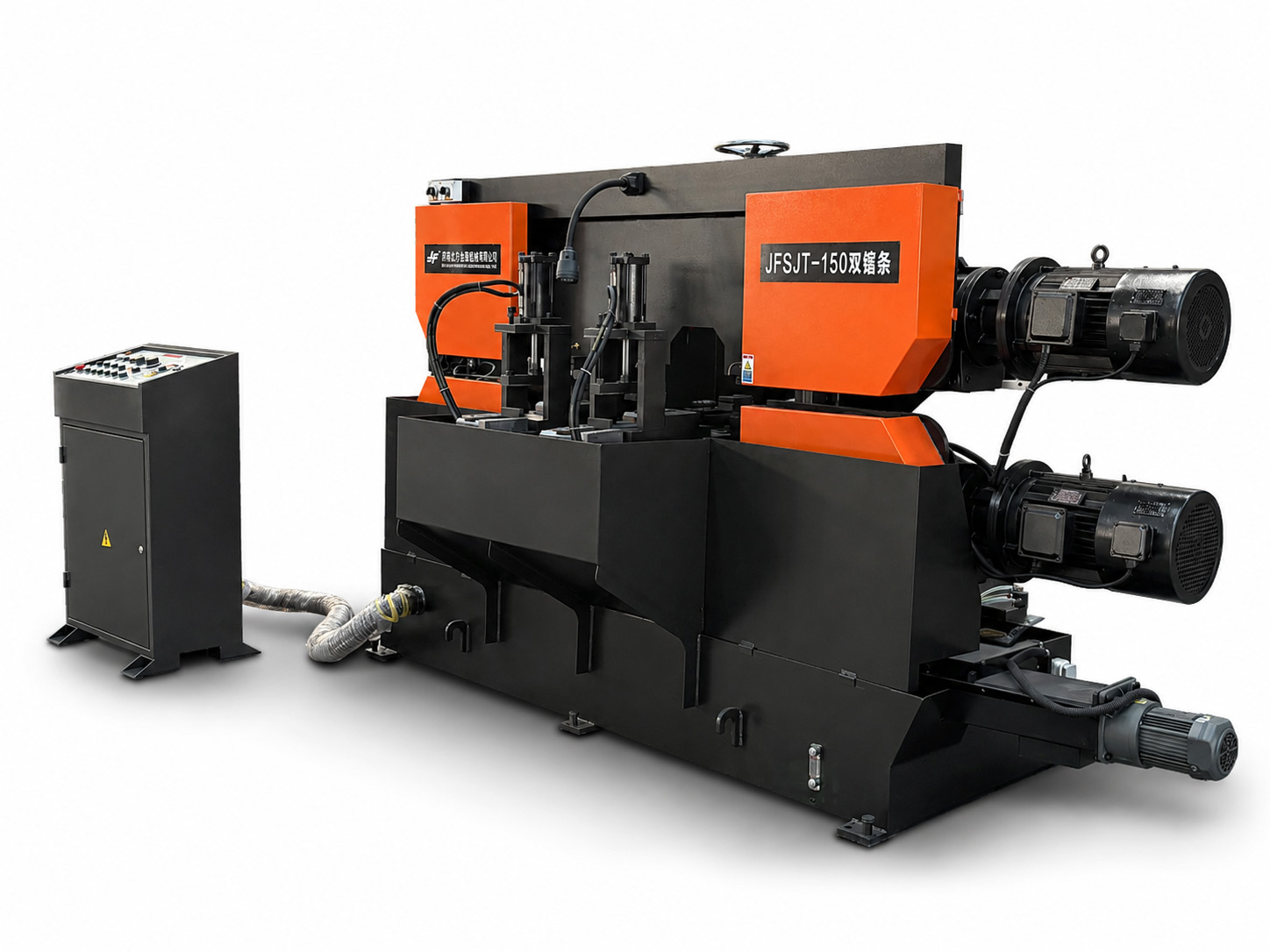

Heavy-duty customized dual-blade band saw machine designed for precision slotting and groove cutting applications. The machine adopts an upper and lower dual-blade horizontal structure, enabling simultaneous cutting and dual-station alternating operation to significantly improve cutting efficiency and machining accuracy.
Features:
✓ Upper and lower dual-blade simultaneous sawing structure. ✓ Dual-station alternating cycle operation improves productivity. ✓ Narrow kerf cutting saves material and reduces waste. ✓ Hydraulic stepless feeding speed control. ✓ Down-pressing hydraulic cylinder clamping system. ✓ Manual lead screw saw frame adjustment. ✓ Linear guide rail worktable structure for stable movement. ✓ Specialized fixture positioning system for precision processing. ✓ High-torque helical gear reducer provides stable power transmission. ✓ Helical screw chip conveyor improves chip removal efficiency. ✓ Compact customized structure for batch groove cutting applications. ✓ Stable transmission with low vibration and smooth operation. ✓ Suitable for continuous industrial production environments.
Typical Applications:
Mainly designed for slotting, grooving, and precision cutting of metal workpieces requiring dual-blade simultaneous processing. Suitable for carbon steel, alloy steel, stainless steel, and customized industrial components in batch production workshops and precision metal processing applications.
MODEL
JFSJT-150
Cutting type
Dual-blade simultaneous cutting
Slotting width
20–60mm
Effective cutting stroke
150mm
Single station width
150mm
Blade size
34 × 1.1mm
Blade speed
40–70m/min
Blade speed control
Inverter frequency control
Feeding speed
Hydraulic stepless speed control

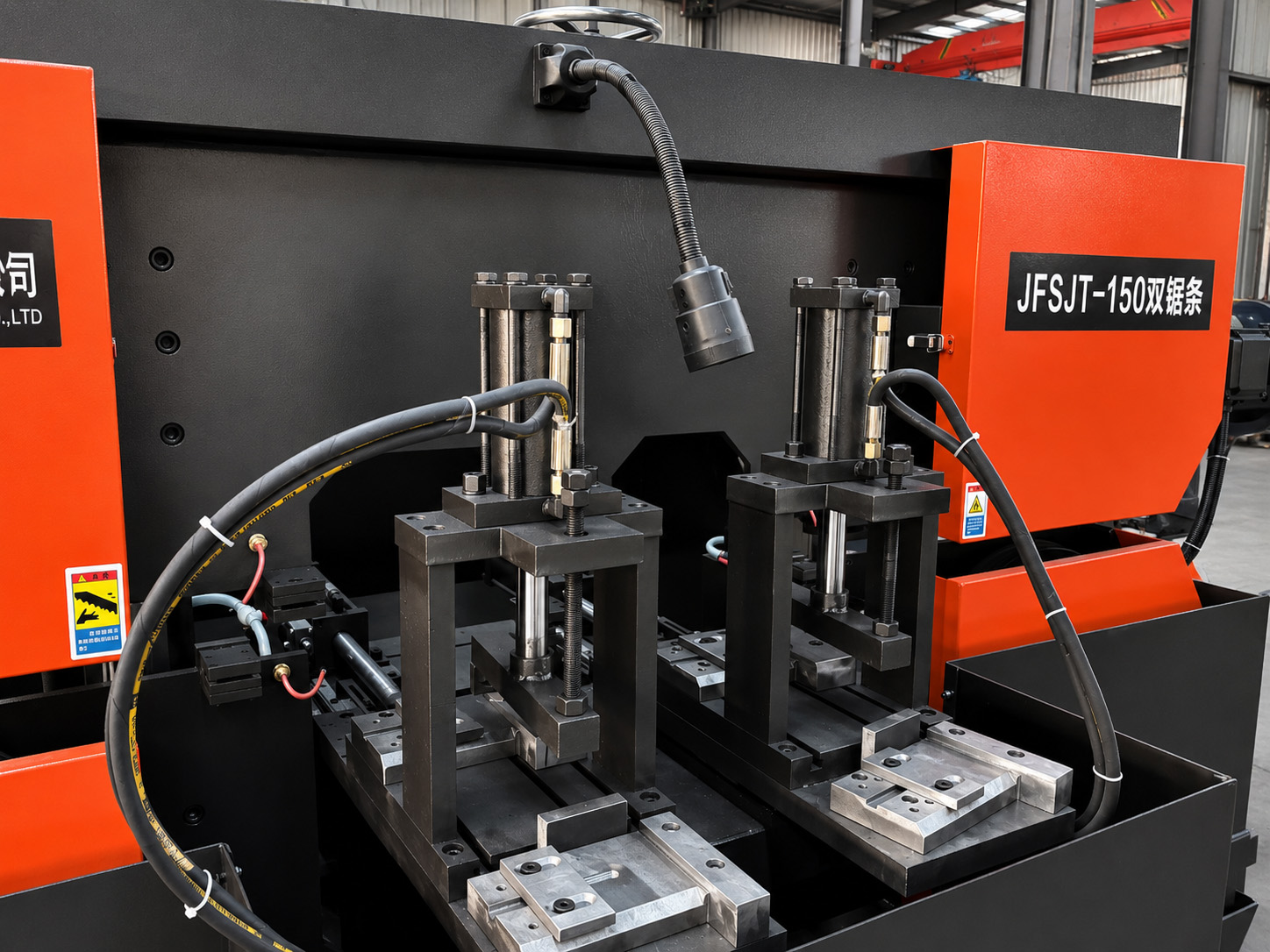

Clamping method
Down-pressing hydraulic cylinder
Saw frame adjustment
Manual lead screw adjustment
Input power
AC380V / 50Hz / 3-Phase
Main motor power
5.5kW × 2 units
Hydraulic motor power
0.75kW
Max. table load
Approx. 100kg
Table guidance
Linear guide rails
Number of stations
2 stations
Positioning method
Specialized fixture positioning
Lower blade adjustment stroke
15mm
Chip removal
Helical screw chip conveyor
Overall dimensions
Approx. 2200 × 1100 × 1900mm
Worktable height
Approx. 970mm
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
