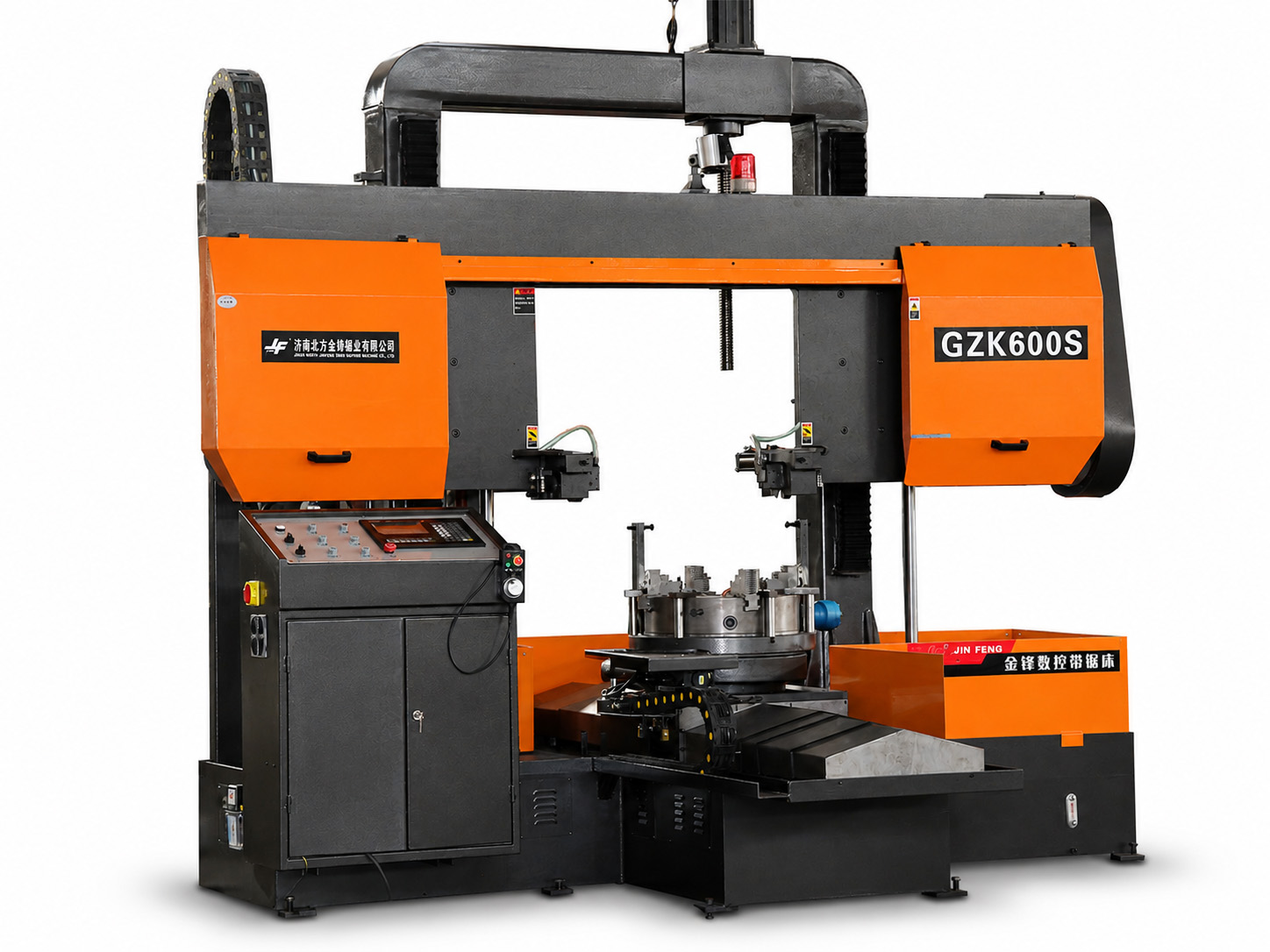

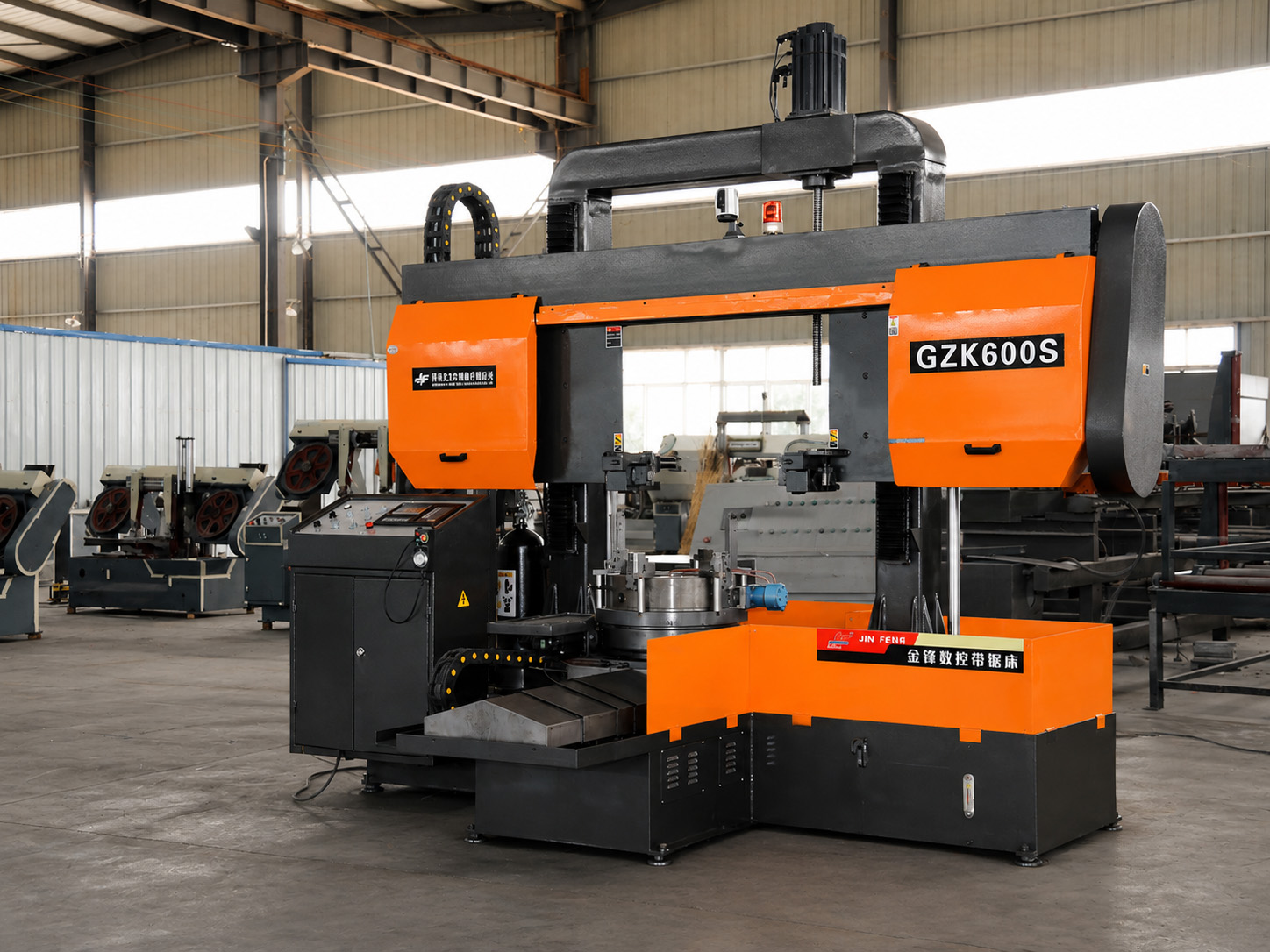

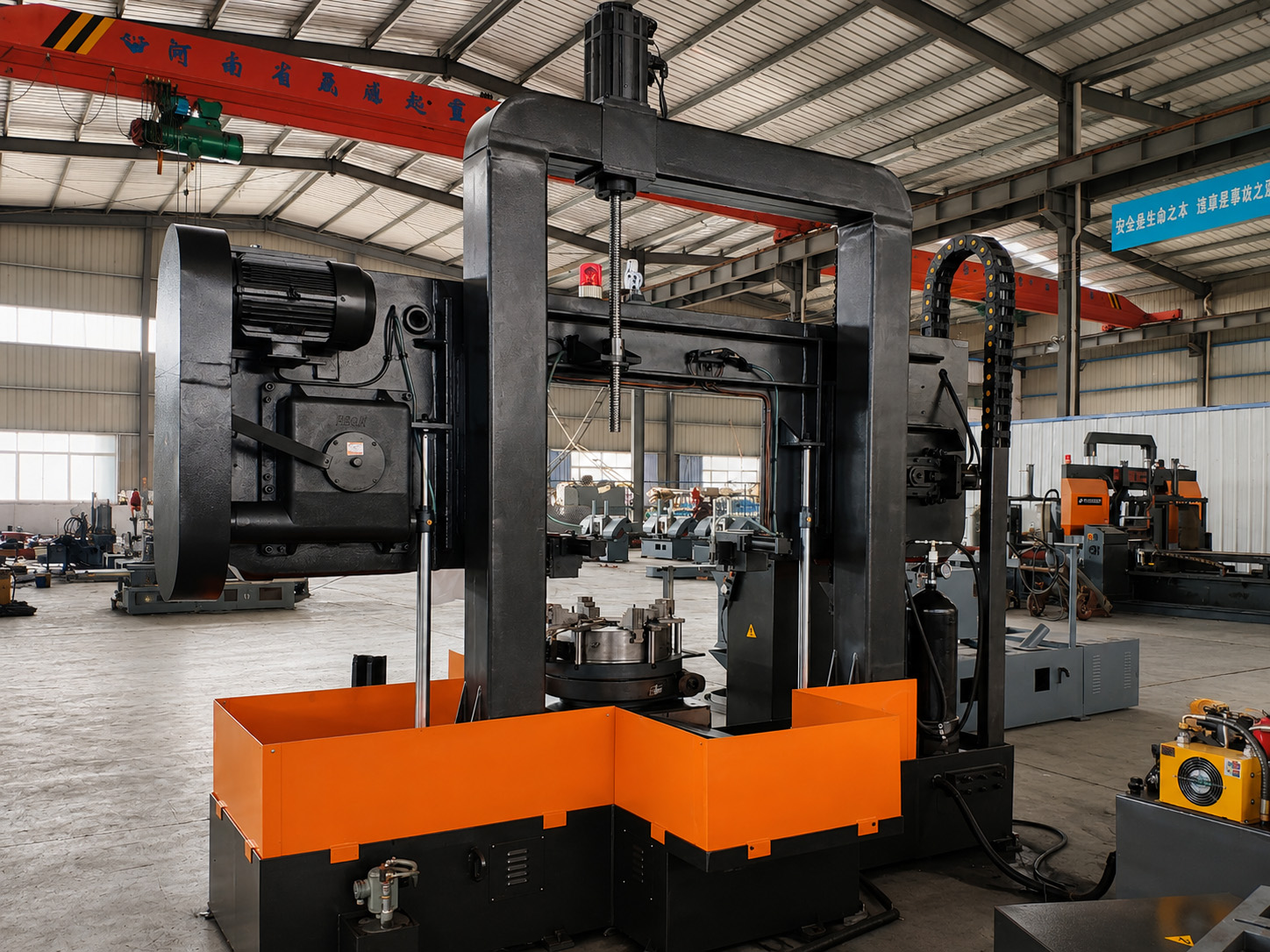

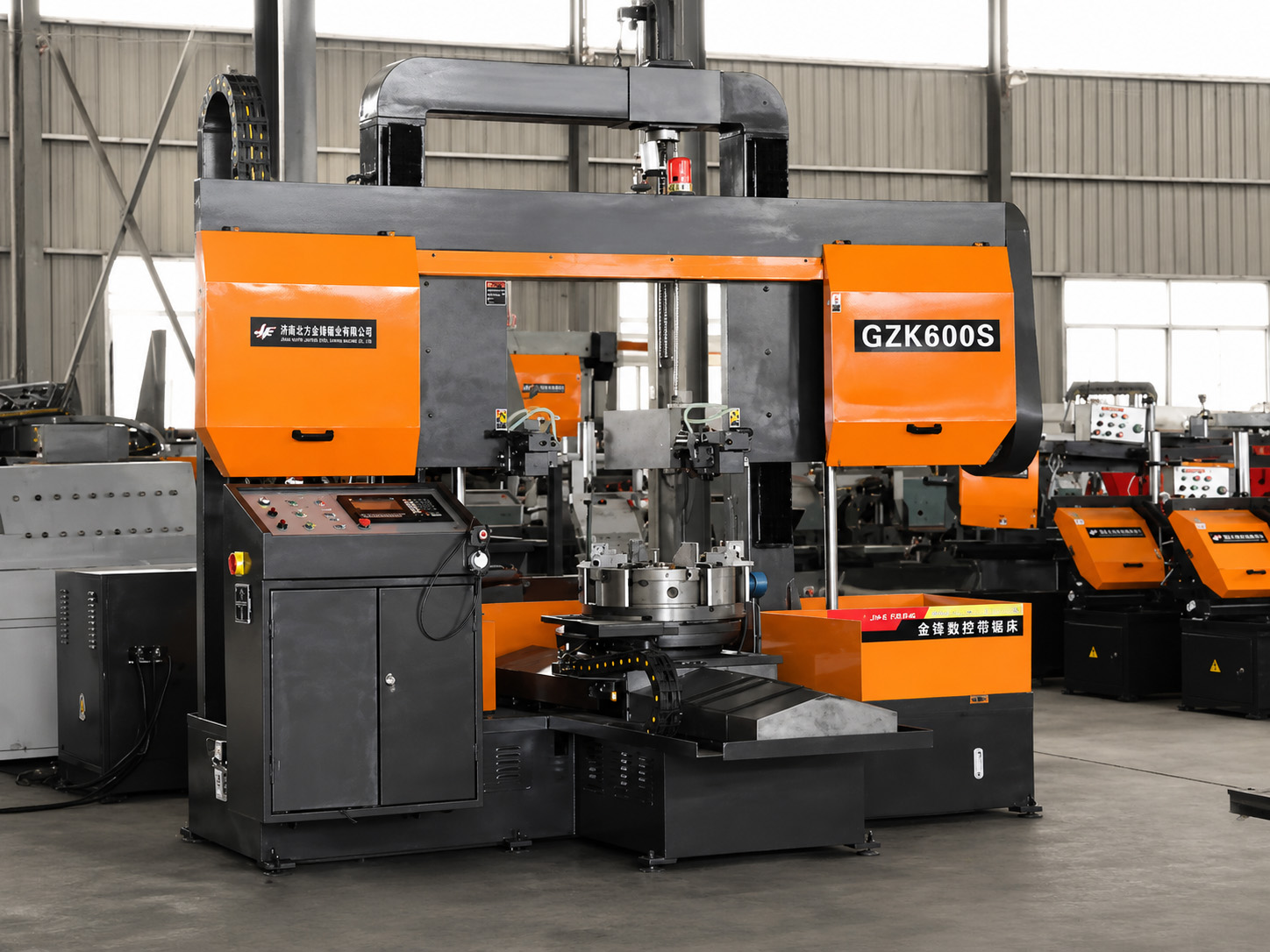

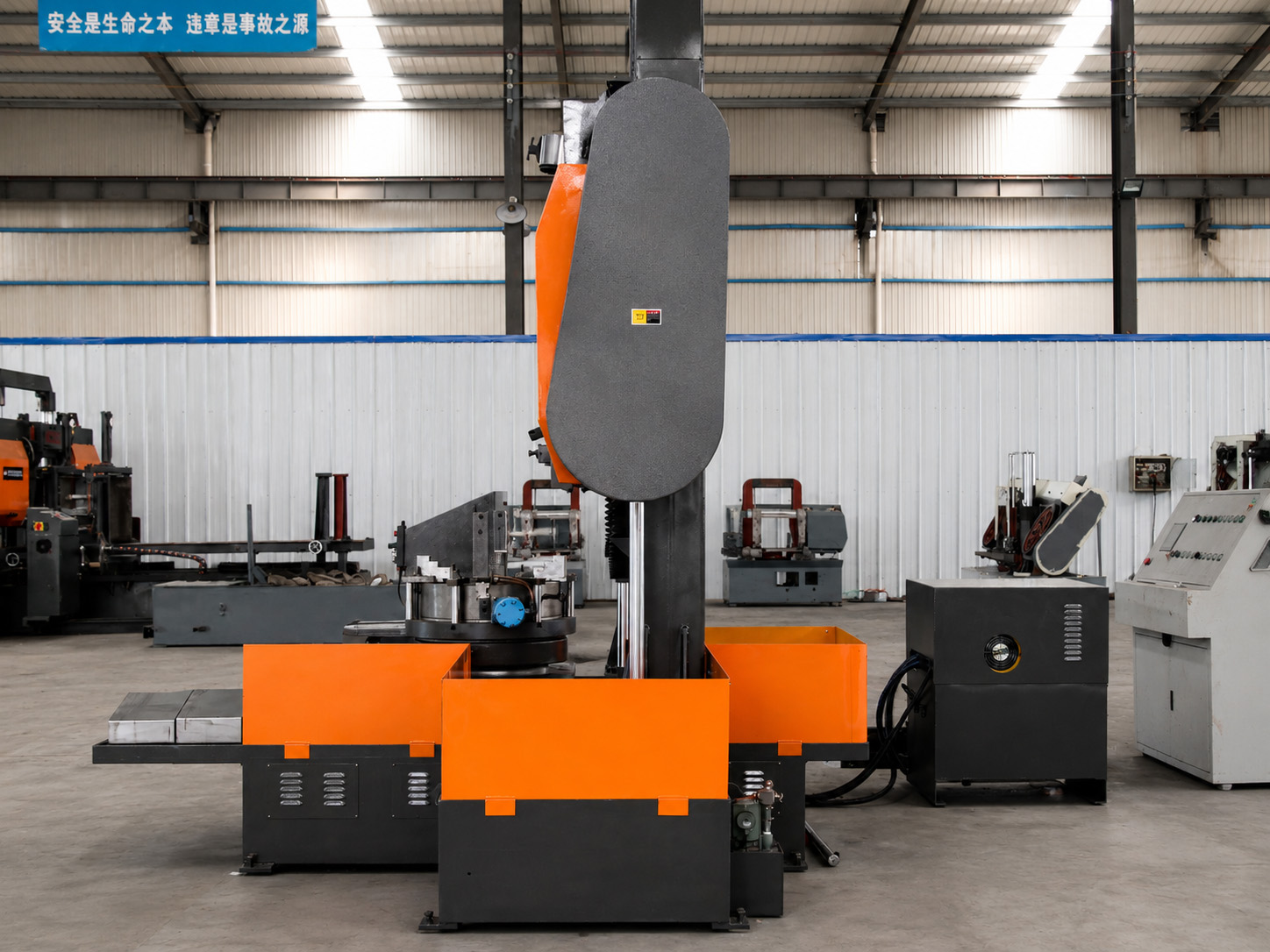

Heavy-duty CNC vertical and horizontal dual-purpose band saw machine specially designed for large-size metal cutting and precision batch processing applications.
Features:
✓ Vertical and horizontal dual-purpose cutting structure. ✓ Double-column gantry horizontal structure for stable operation. ✓ CNC control system with standard G-code programming. ✓ Servo motor driven cutting system with parameterized control. ✓ 360° servo-controlled rotary worktable positioning. ✓ Hydraulic blade tension system ensures stable cutting performance. ✓ Four-jaw self-centering chuck clamping system. ✓ Compatible with standard material cutting applications. ✓ Circular worktable structure with linear guide rail movement. ✓ Hydraulic bed clamping system for ordinary cutting operations. ✓ Hard alloy guide system extends blade service life. ✓ Independent electrical control cabinet with electronic handwheel. ✓ Automatic chip cleaning structure improves cutting efficiency. ✓ Narrow kerf design reduces material waste and improves energy efficiency.
Typical Applications:
Mainly designed for cutting non-ferrous metals, medium carbon steel, and low carbon steel materials. Suitable for vertical cutting, horizontal cutting, rotary positioning cutting, and precision batch production applications in heavy machinery manufacturing, metal processing workshops, mold manufacturing, and industrial fabrication industries.
MODEL
GZK600S
Maximum cutting height(mm)
≤620mm
Maximum cutting width(mm)
≤620mm
Worktable moving stroke(mm)
500mm
Control system
CNC numerical control system
Programming method
Standard G-code
Saw blade specification(mm)
54×1.6mm
Saw blade speed(m/min)
20/35/65/80
Cutting speed
Servo motor drive, parameterized control
Saw blade tension
Hydraulic
Workpiece clamping
Four-jaw self-centering chuck
Input power supply
AC380V 50Hz
Main motor power(kw)
7.5kw
Hydraulic motor power(kw)
2.2kw
Servo motor power(kw)
4.7/1.5/1.5kw (vertical/horizontal/rotation)
Cooling pump power
120W
Hydraulic tank capacity
150L
Cooling tank capacity
120L
Worktable size
Φ620mm
Worktable rotation
Servo controlled 360° arbitrary rotation
Worktable loading capacity
≤2000KG
Machine weight
Approx. 7T
Overall dimensions(mm)
Approx. L3080×W2200×H1950
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
