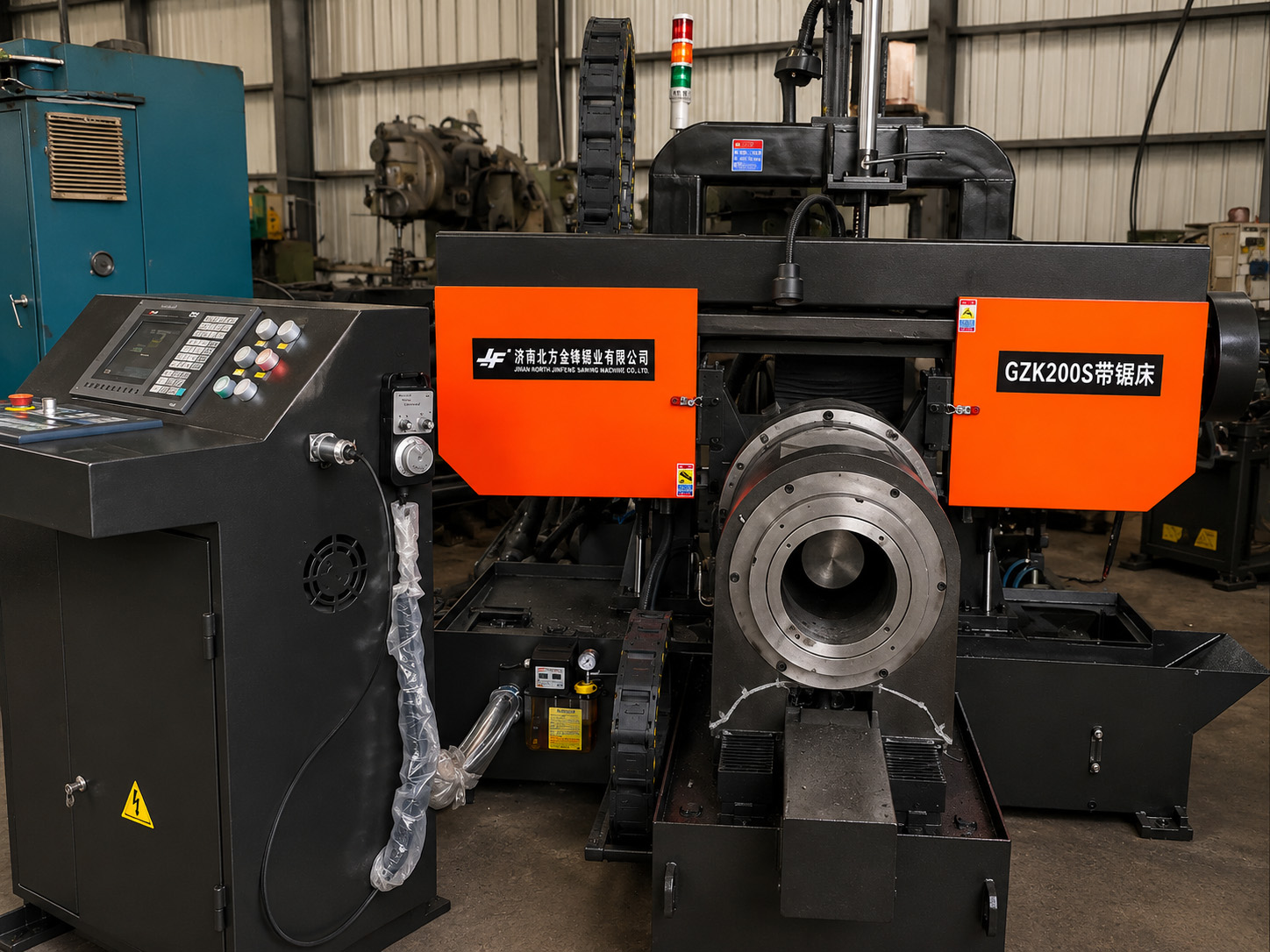

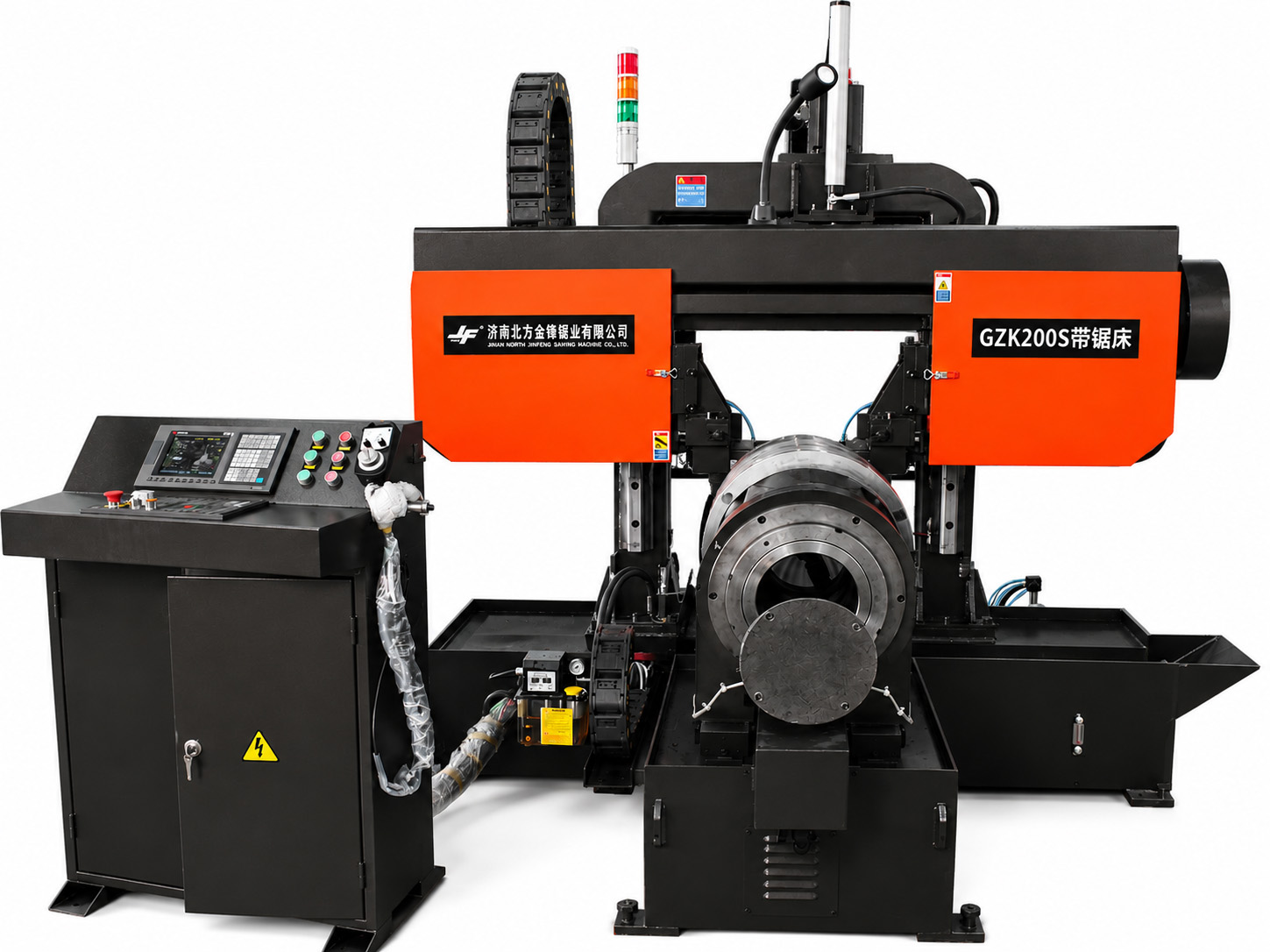

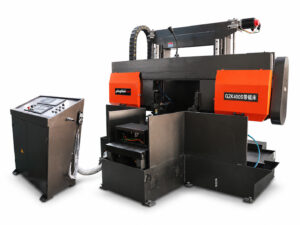

CNC vertical and horizontal dual-purpose band saw machine designed for precision cutting and automated batch production applications.
Features:
✓ Vertical and horizontal dual-purpose cutting design. ✓ Band saw blade automatically changes direction by 90°. ✓ Workpiece supports 180° hydraulic rotation positioning. ✓ CNC control system with standard G-code programming. ✓ Double column horizontal structure with stable cutting performance. ✓ Hydraulic blade tension system ensures stable blade operation. ✓ Servo motor driven moving worktable with linear guide rail structure. ✓ Parameterized control improves cutting efficiency and cutting accuracy. ✓ Equipped with electronic handwheel for convenient tool setting operation. ✓ Compact kerf design reduces material waste and improves energy efficiency.
Typical Applications:
Mainly designed for cutting non-ferrous metals, medium carbon steel, and low carbon steel materials. Suitable for vertical cutting, horizontal cutting, and special workpiece processing applications in machinery manufacturing, pipe processing, precision metal fabrication, and batch production environments.
MODEL
GZK200S
Maximum cutting height(mm)
200mm
Maximum cutting width(mm)
200mm
Worktable moving stroke(mm)
200mm

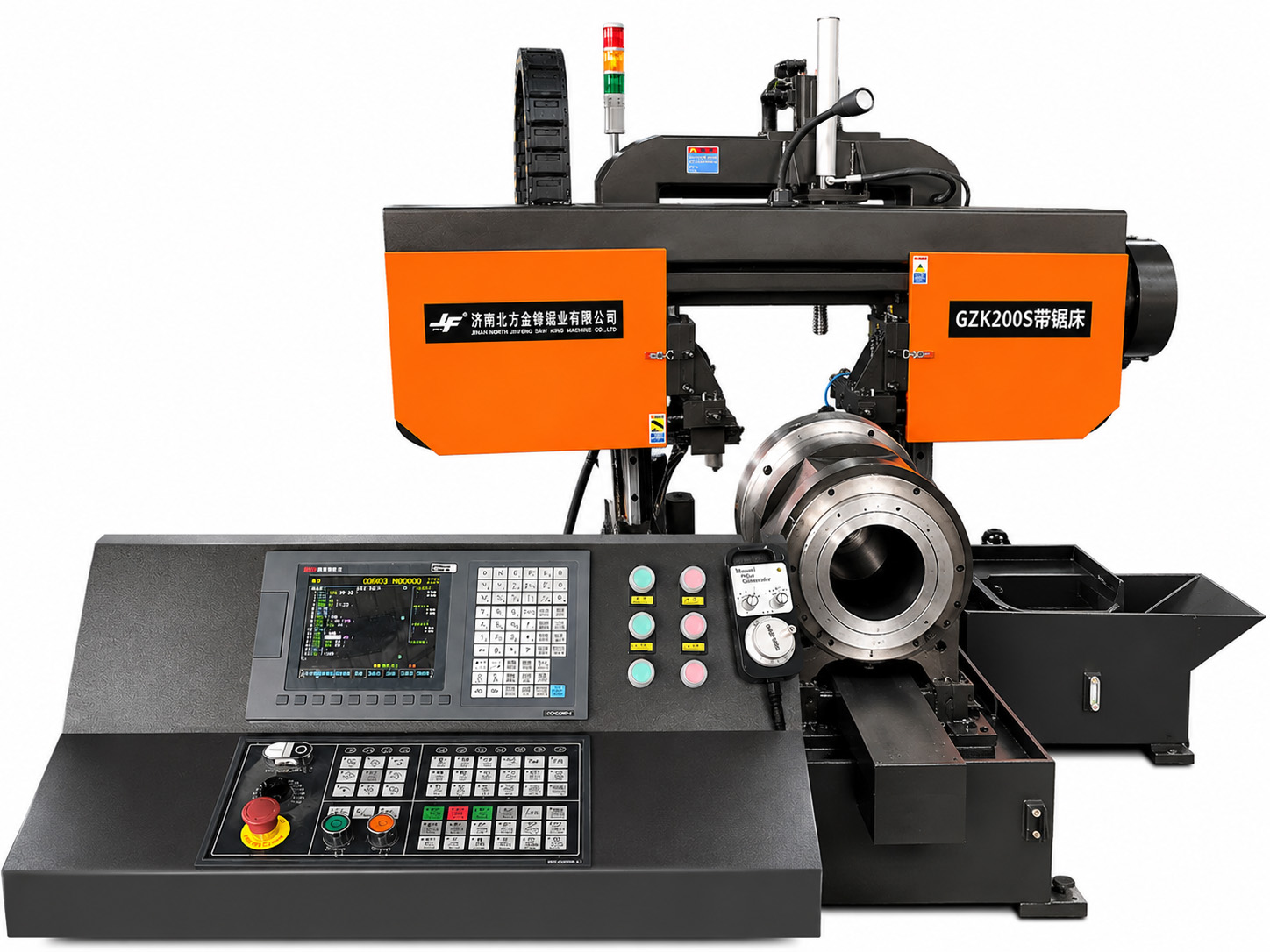

Control system
CNC numerical control system
Programming method
Standard G-code
Saw blade specification(mm)
4115×34×1.1mm
Saw blade speed(m/min)
40/60/80 (cone pulley speed regulation)
Cutting speed
Parameterized control
Saw blade tension
Hydraulic
Workpiece clamping
Chuck
Input power supply
AC380V 50Hz
Main motor power(kw)
3.0kw
Hydraulic motor power(kw)
0.75kw
Servo motor power(kw)
1.5/1.5kw (vertical/horizontal movement)
Cooling pump power
90W
Workpiece rotation

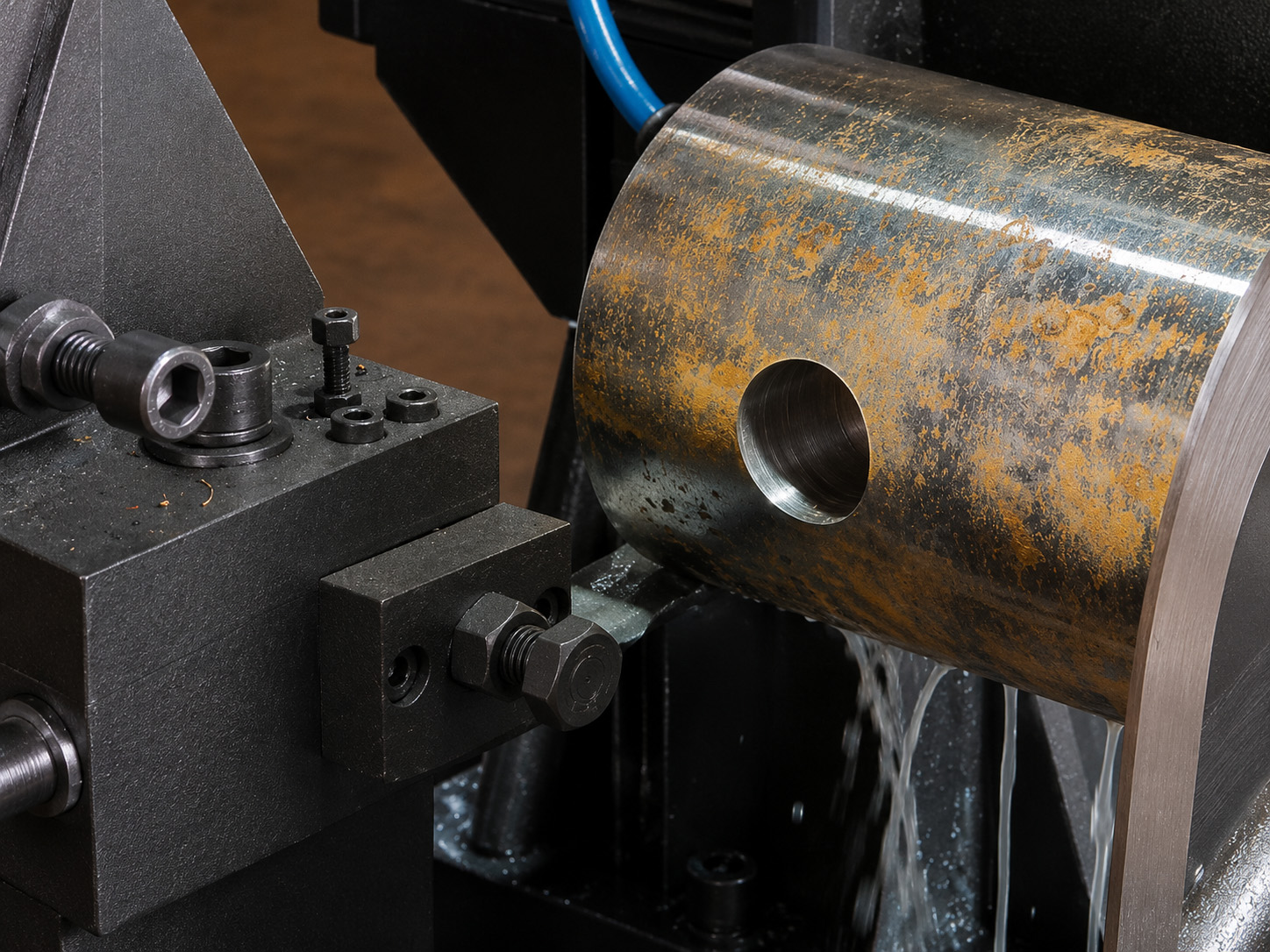

Hydraulic driven 180° rotation
Table loading capacity
≤1T
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
