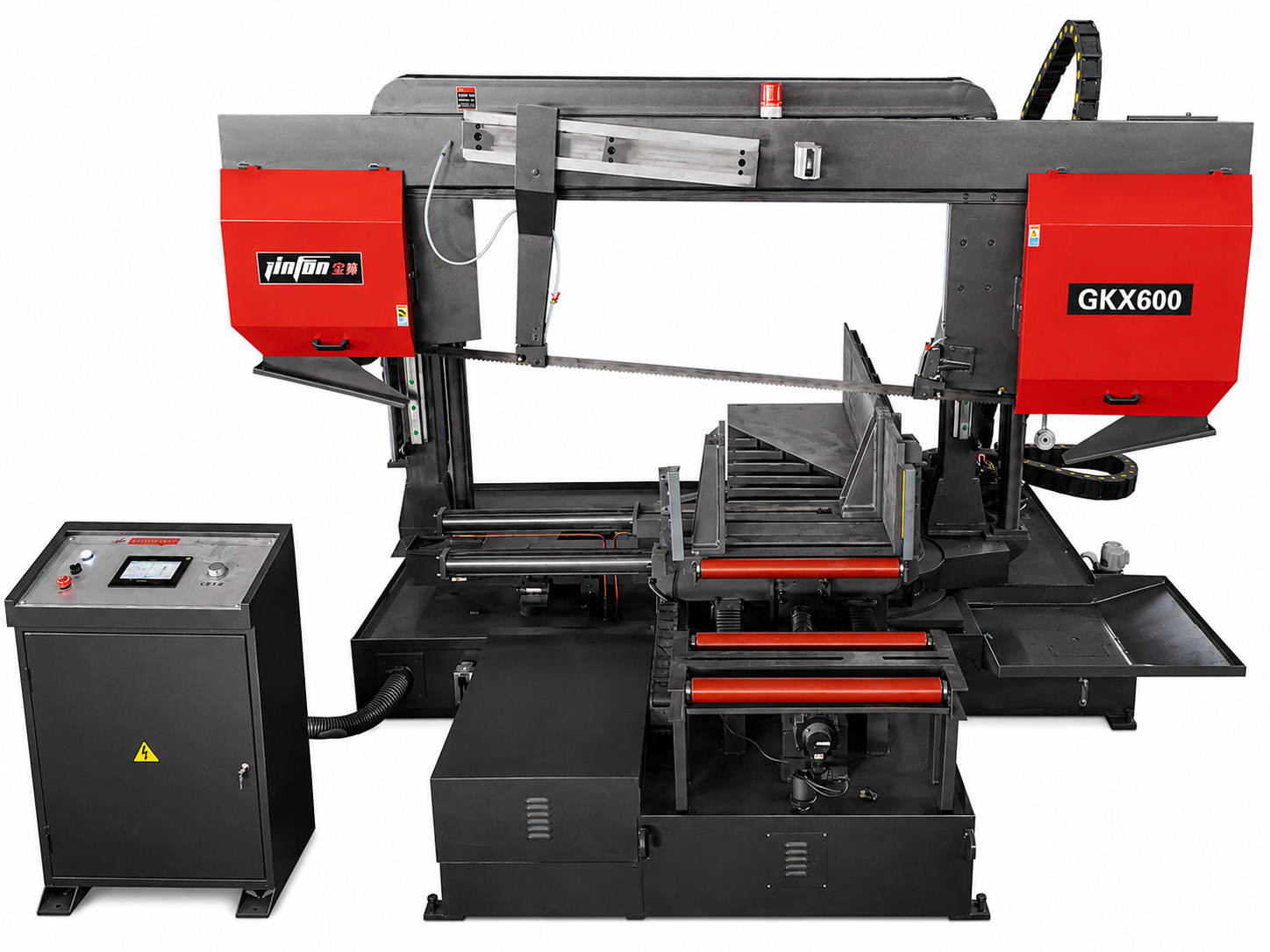

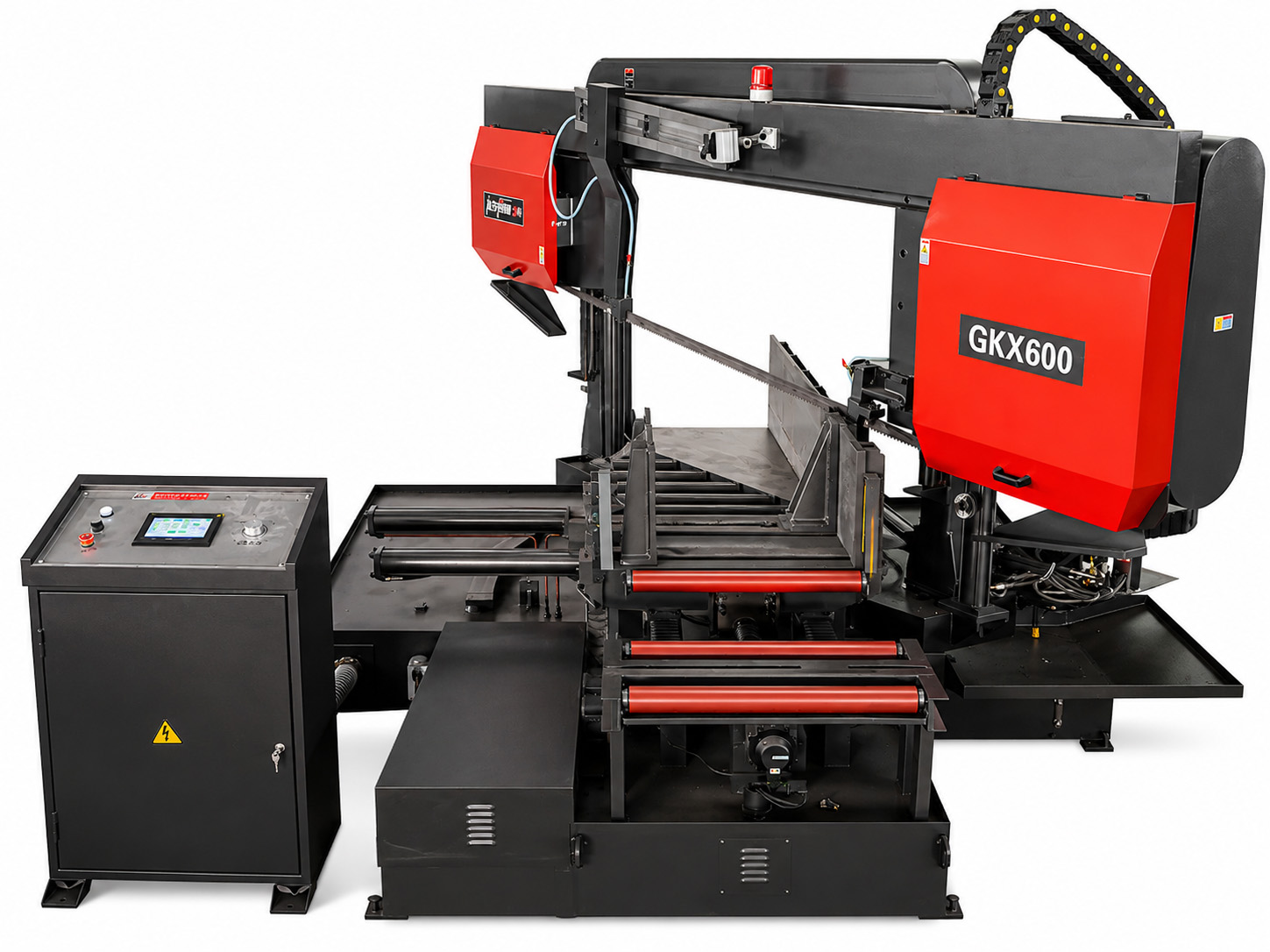

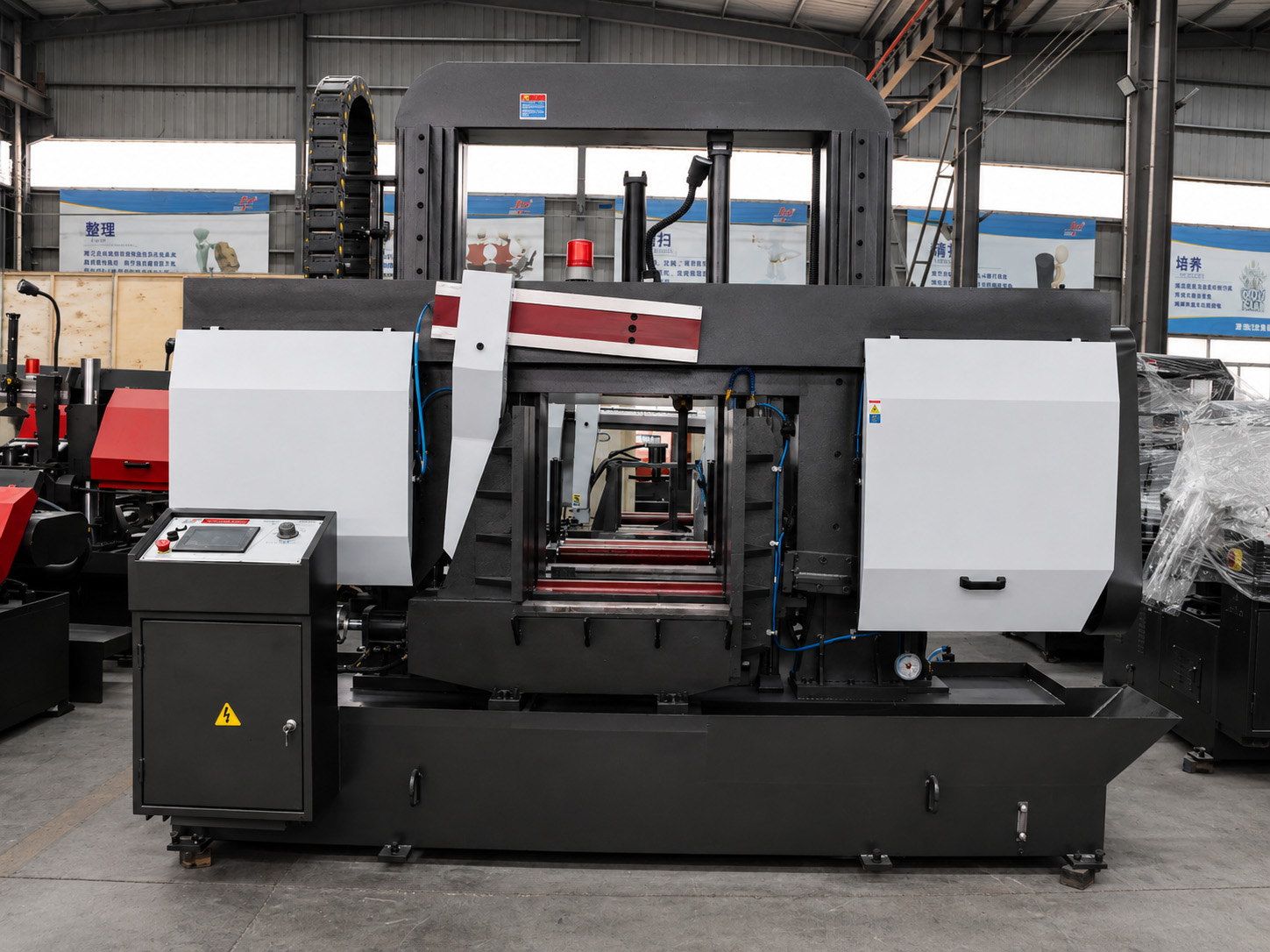

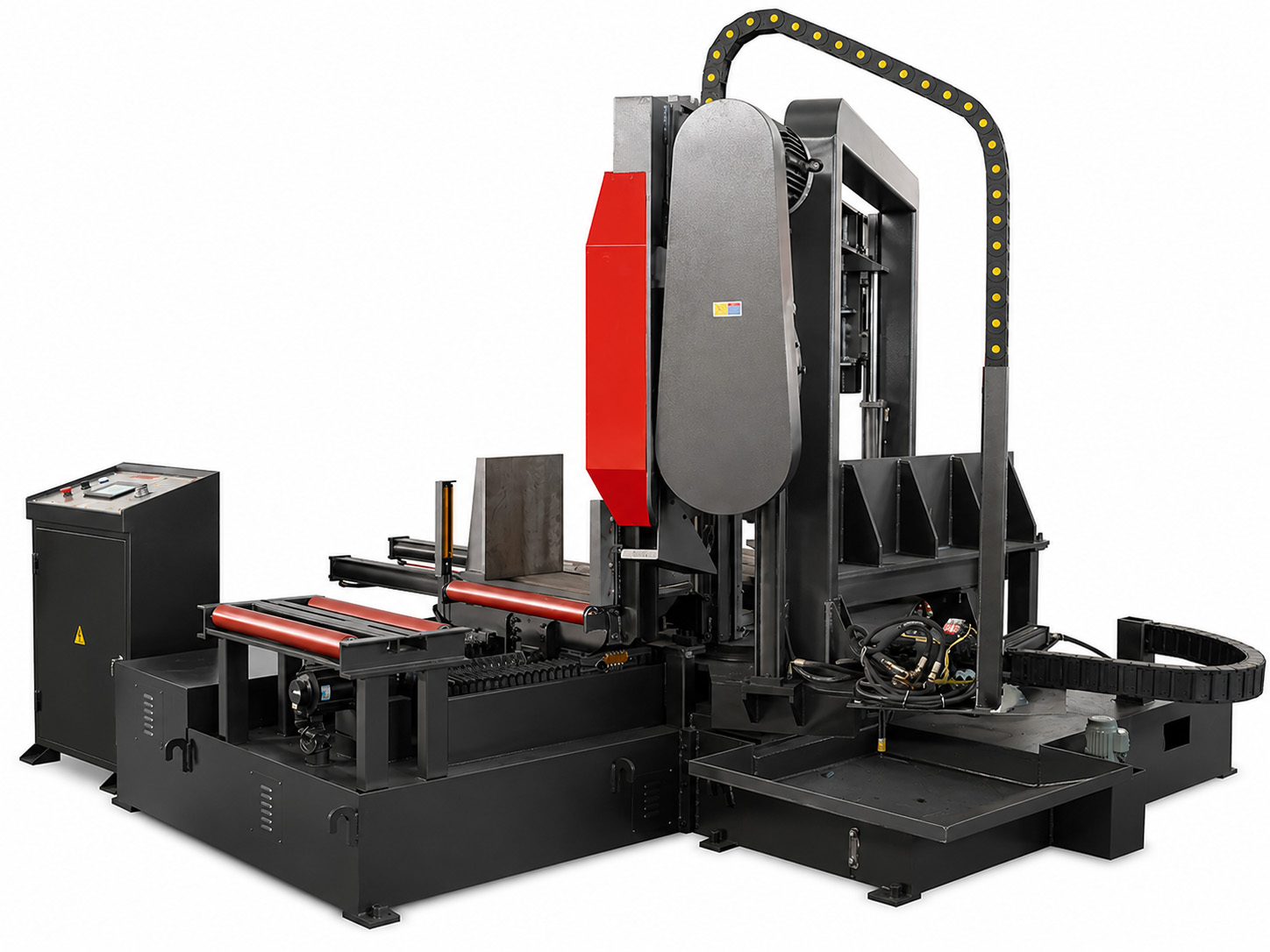

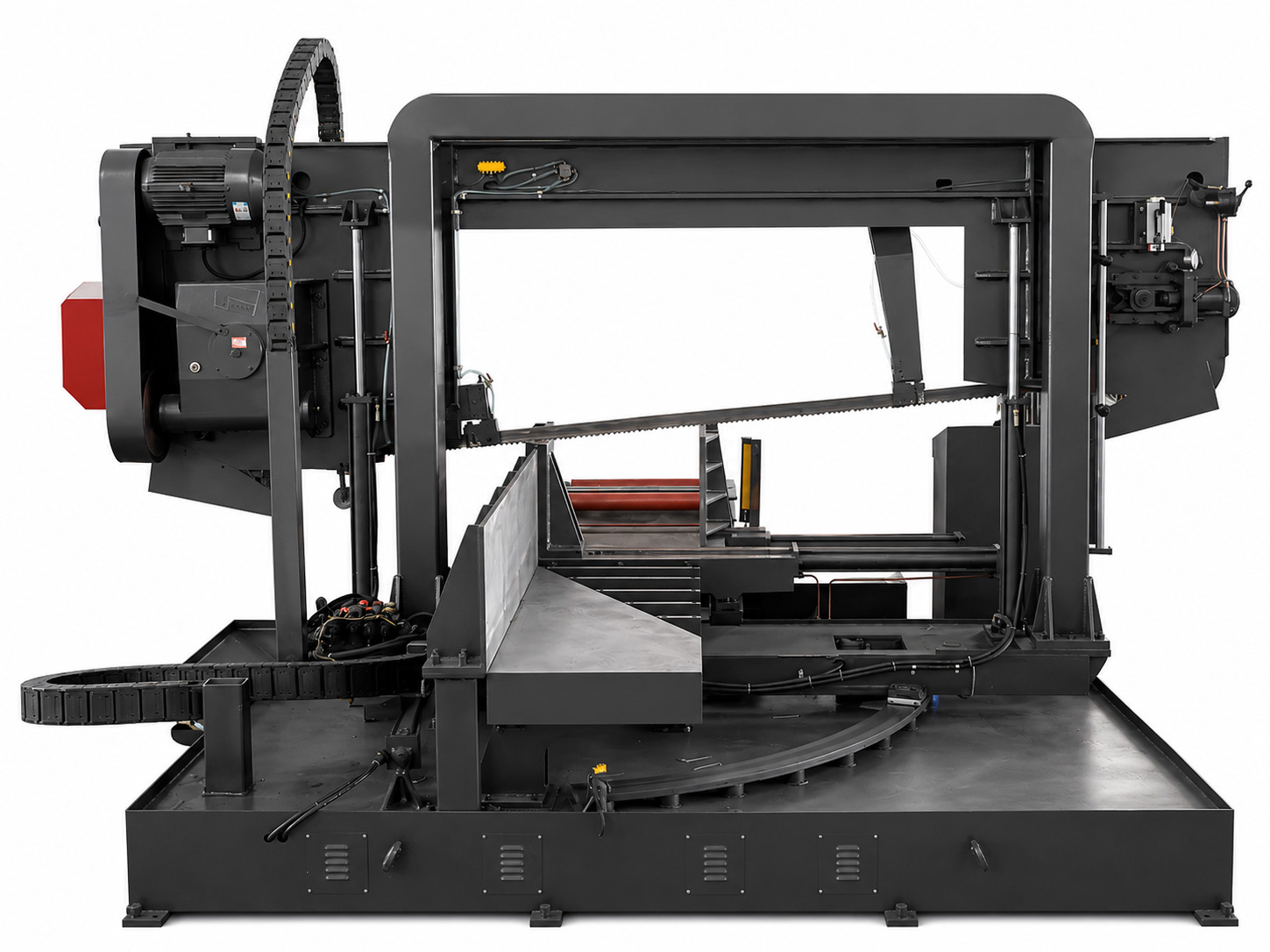

Heavy-duty CNC angle band saw machine designed for large-size metal cutting and high-efficiency automatic angle cutting applications.
Features:
✓ Gantry structure design with strong rigidity and stable cutting performance. ✓ Hydraulic feeding system with stepless speed adjustment. ✓ Hydraulic blade tension system ensures stable high-speed operation and extends blade life. ✓ PLC intelligent control system with color touch screen interface. ✓ Automatic angle positioning with touch screen display and high positioning accuracy. ✓ Servo motor feeding system with linear guide rail structure. ✓ Frequency inverter blade speed control, adjustable from 15-80m/min. ✓ Machine supports arbitrary angle cutting from 0° to -45°. ✓ Automatic cooling system and steel brush chip cleaning system. ✓ Equipped with overload protection, blade break protection, and centralized lubrication system.
Typical Applications:
Mainly designed for cutting large metal bars, pipes, profiles, and structural steel materials. Suitable for automatic straight cutting and angle cutting applications in steel structure processing, heavy equipment manufacturing, bridge engineering, shipbuilding, and industrial metal fabrication.
MODEL
GKX600
Cutting capacity(mm)
0°: ● Φ600mm ■ W600×H600mm
Angle cutting capacity(mm)
45°: ● Φ350mm ■ W350×H600mm
Main motor power(kw)
7.5kw 380v 50Hz
Hydraulic motor power(kw)
1.5kw 380v 50Hz
Cooling motor power(kw)
0.12kw 380v 50Hz
Saw blade specification(mm)
54×1.6mm
Saw blade speed(m/min)
15-80m/min (frequency control)
Feeding method
Hydraulic stepless feeding
Workpiece clamping
Hydraulic
Saw blade tension
Hydraulic tension
Angle adjustment
Hydraulic cylinder drive with magnetic ruler display
Angle / section accuracy
≤0.5mm
Feeding accuracy
≤±0.2mm
Table loading capacity
5000kg
Main transmission
Worm gear reducer
Maximum single feeding length
500mm
Feeding table movement
Servo motor control with linear guide rail
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
