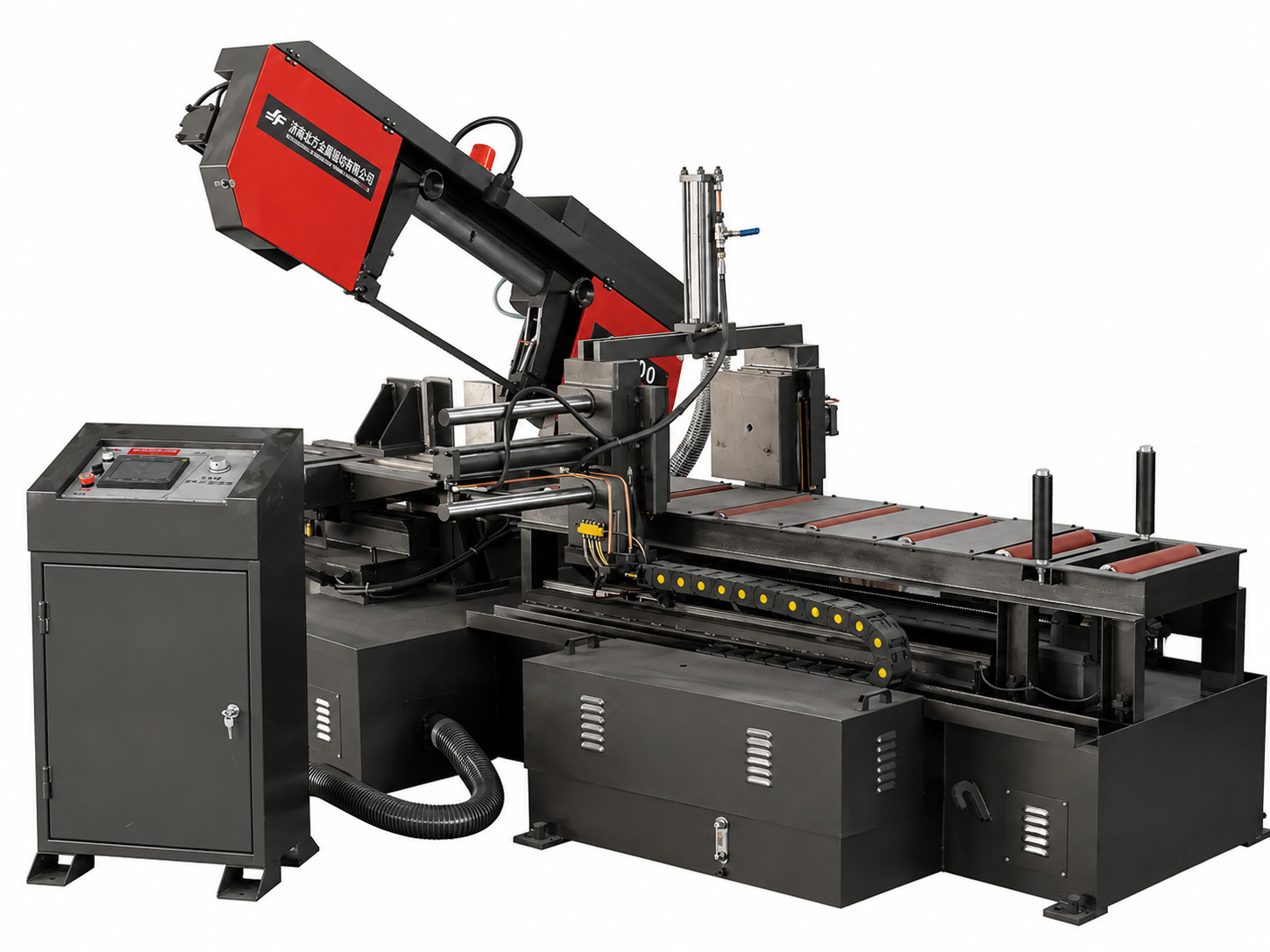

Fully automatic CNC angle band saw machine designed for high-precision metal cutting and angle cutting applications.
Features:
✓ Servo automatic angle adjustment with touch screen digital display. ✓ Hydraulic feeding system with stepless speed regulation. ✓ Hydraulic workpiece clamping for stable cutting performance. ✓ Hydraulic blade tension system for reliable operation. ✓ Frequency converter speed control, blade speed adjustable from 20-80m/min. ✓ Double down-pressure structure and chip conveyor configuration. ✓ Machine can rotate freely between 90° and -45° for angle cutting applications.
Typical Applications:
Mainly designed for cutting metal bars, pipes, profiles, and structural steel materials. Suitable for straight cutting and angle cutting applications in steel fabrication workshops, industrial manufacturing, and heavy-duty metal processing environments.
MODEL
GKX300
Cutting ability(mm)
90°: ● Φ300mm ■ W300×H300mm
Angle cutting capacity(mm)
-45°: ● Φ200mm ■ W200×H300mm
Main motor power(kw)
3.0kw 380v 50Hz
Hydraulic motor power(kw)
0.75kw 380v 50Hz
Cooling motor power(kw)
0.09kw 380v 50Hz
Saw blade specification(mm)
27×0.9mm
Saw blade tension
hydraulic
Saw blade speed(m/min)
20-80m/min (frequency control)
Feeding system
Hydraulic cylinder control with grating ruler measurement
Feeding accuracy
±0.2mm
Maximum single feeding length
500mm
Workpiece clamping
Hydraulic
Table loading capacity
2000kg
Main transmission
Worm gear reducer
Angle adjustment
Servo automatic adjustment
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
