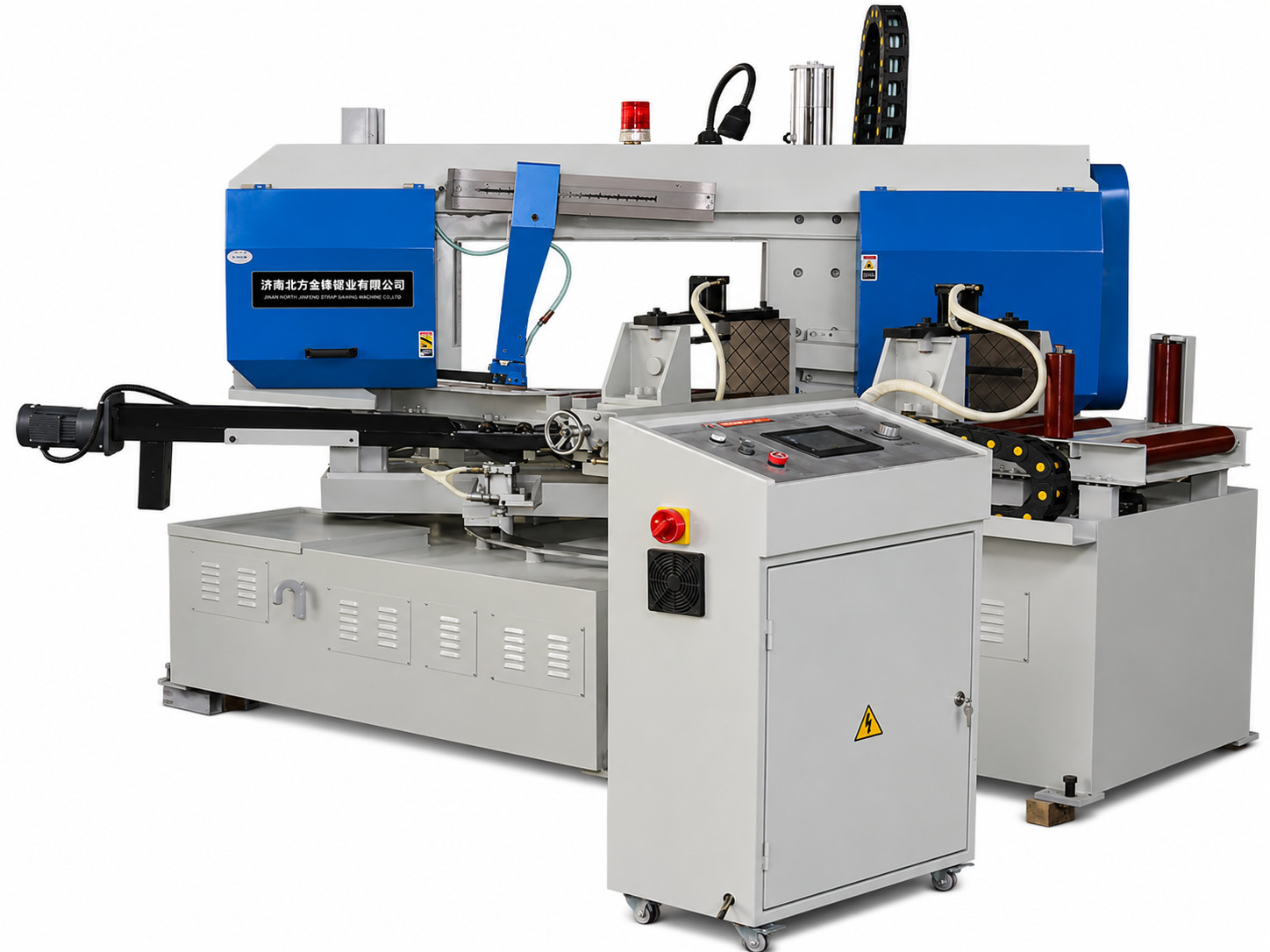

Fully automatic CNC angle band saw machine designed for high-efficiency metal cutting and automatic angle cutting applications.
Features:
✓ PLC control system with intelligent touch screen operation interface. ✓ Servo motor automatic angle adjustment with digital display. ✓ Automatic feeding, clamping, cutting, and return cycle operation. ✓ Hydraulic clamping system for stable and reliable cutting. ✓ Hydraulic blade tension system with adjustable tension force. ✓ Frequency converter speed regulation, blade speed adjustable from 20-80m/min. ✓ Double column structure ensures stable operation and cutting accuracy. ✓ Automatic chip cleaning system with chip conveyor for continuous production. ✓ Machine supports arbitrary angle cutting between 90° and -45°.
Typical Applications:
Mainly designed for cutting metal bars, tubes, profiles, and structural steel materials. Suitable for automatic straight cutting and angle cutting applications in steel structure processing, machinery manufacturing, industrial fabrication, and mass-production metal cutting environments.
MODEL
GKX350
Cutting capacity(mm)
0°: ● Φ350mm ■ W400×H350mm
Angle cutting capacity(mm)
-45°: ● Φ350mm ■ W350×H350mm
Main motor power(kw)
4.0kw 380v 50Hz
Hydraulic motor power(kw)
0.75kw 380v 50Hz
Cooling motor power(kw)
0.09kw 380v 50Hz
Saw blade specification(mm)
34×1.1mm
Saw blade tension
Hydraulic
Saw blade speed(m/min)
20-80m/min (frequency control)
Feeding method
Servo motor / hydraulic feeding
Feeding accuracy
±0.2mm
Vertical cutting accuracy
0.2/100
Angle rotation accuracy
±0.2°
Maximum single feeding length
500mm
Workpiece clamping
Hydraulic
Table loading capacity
3000kg
Main transmission
Worm gear reducer
Vise height(mm)
220mm
Feeding roller table
2m/section × 3 sections
Feeding roller loading
＞6 tons
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
