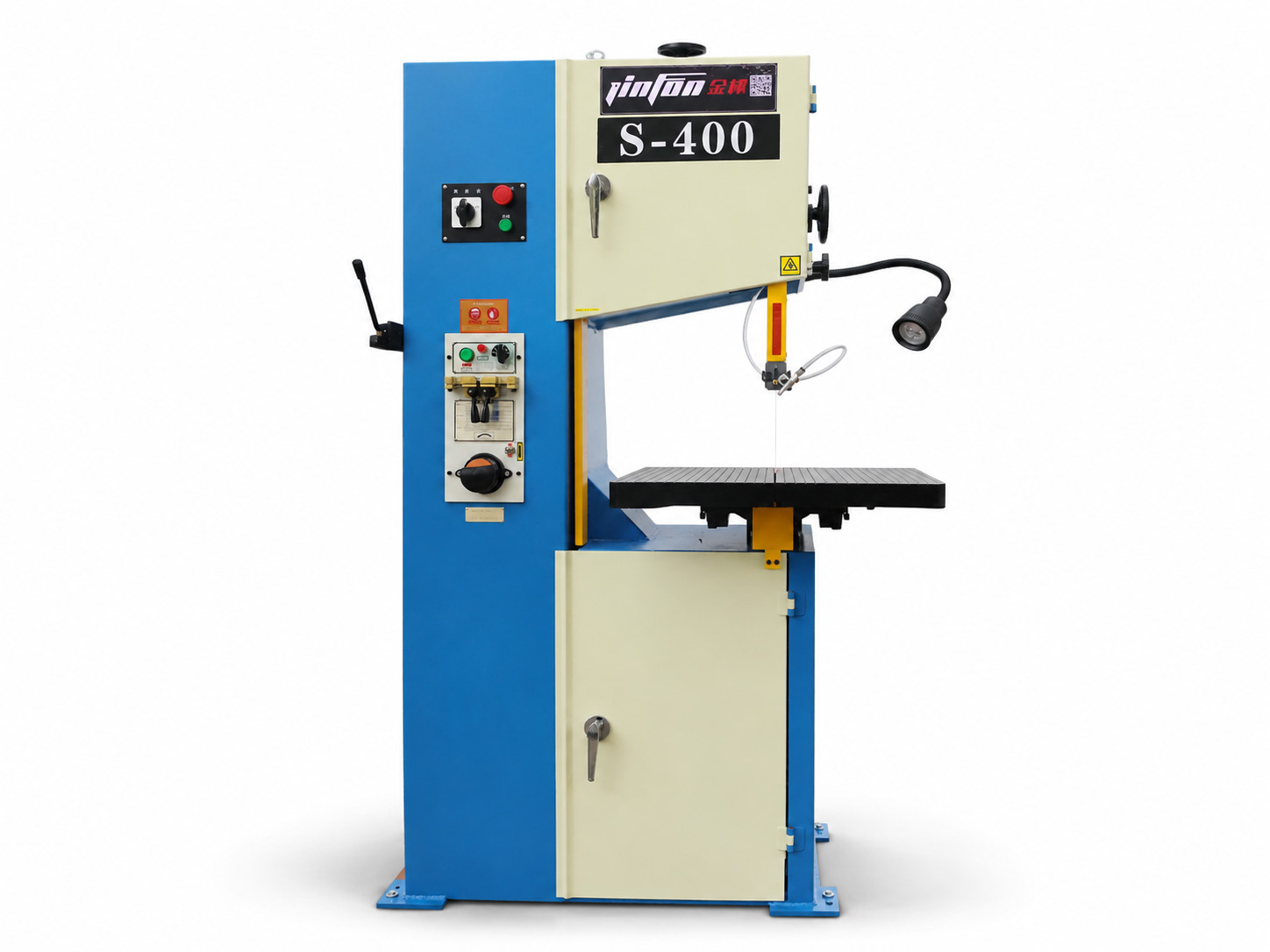

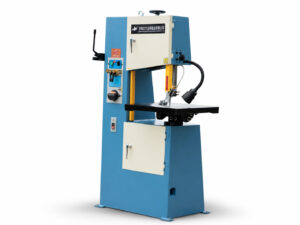

S-400 vertical bandsaw machine is designed for cutting various metal materials with stable cutting performance and flexible operation. The machine features adjustable worktable tilting angles, multiple blade speed selections and integrated blade welding capability, making it suitable for industrial metalworking and fabrication applications.
Features:
✓ Vertical bandsaw structure for efficient metal cutting. ✓ Adjustable worktable for angle cutting applications. ✓ Multiple saw blade speed selections for different materials. ✓ Integrated blade welding function for convenient blade repair. ✓ Stable machine structure for continuous operation. ✓ Suitable for narrow band saw blade cutting applications. ✓ Equipped with work light for improved cutting visibility. ✓ Compact operation layout with convenient controls. ✓ Durable industrial design for workshop environments. ✓ Smooth cutting performance with flexible material handling.
Typical Applications:
Mainly designed for cutting metal plates, profiles and industrial workpieces in metal fabrication workshops. Suitable for straight cutting and angle cutting operations on various metal materials using vertical band saw blades.
MODEL
S-400
Maximum Sawing Capacity
400mm
Maximum Working Height
320mm
Worktable Size
550×600mm
Saw Blade Length
3360mm
Saw Blade Width
3-16mm
Worktable Tilting Angle
Front And Rear 10° / Left And Right 15°
Main Motor Power
1.5 / 2.4kw (4P/8P)
Variable Speed Power
1HP
Saw Blade Speed 50HZ
27 / 43 / 65 / 108 / 53 / 85 / 127 / 212m/min
Welding Power
2.0kva
Welding Capacity
3-16mm
Machine Weight
Approx. 430kg
Machine Size (L×W×H)
1130×850×1830mm
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
