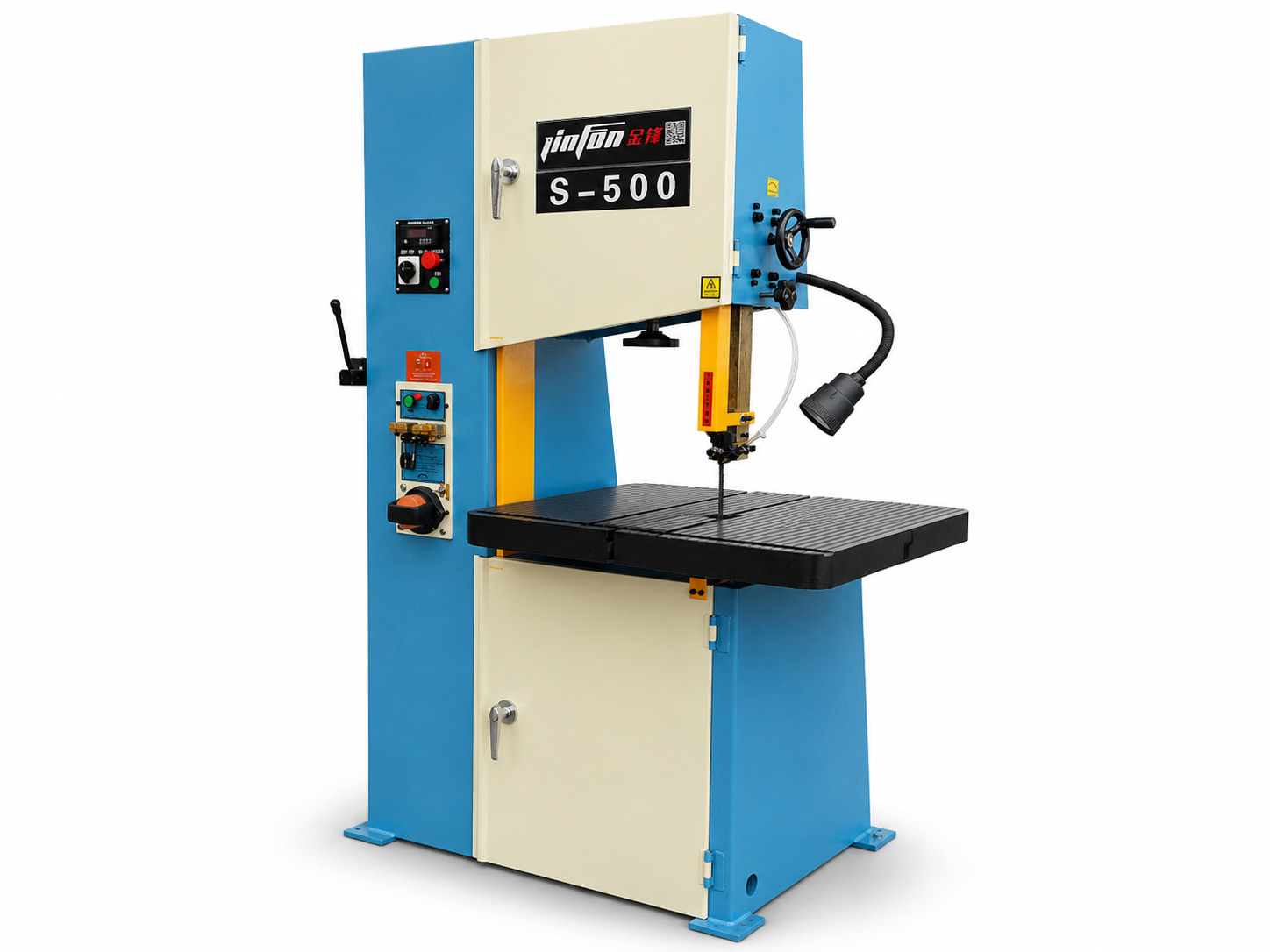

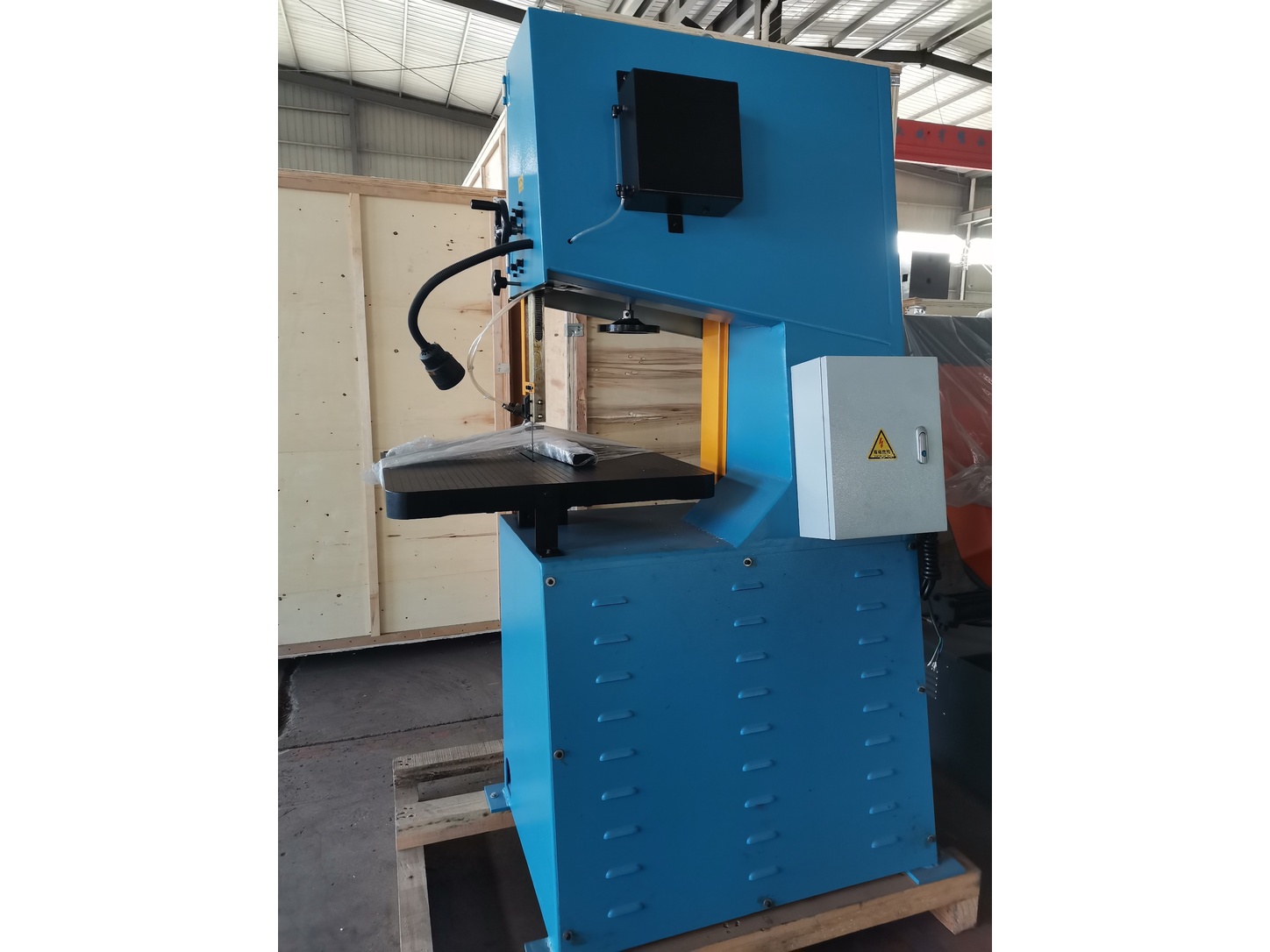

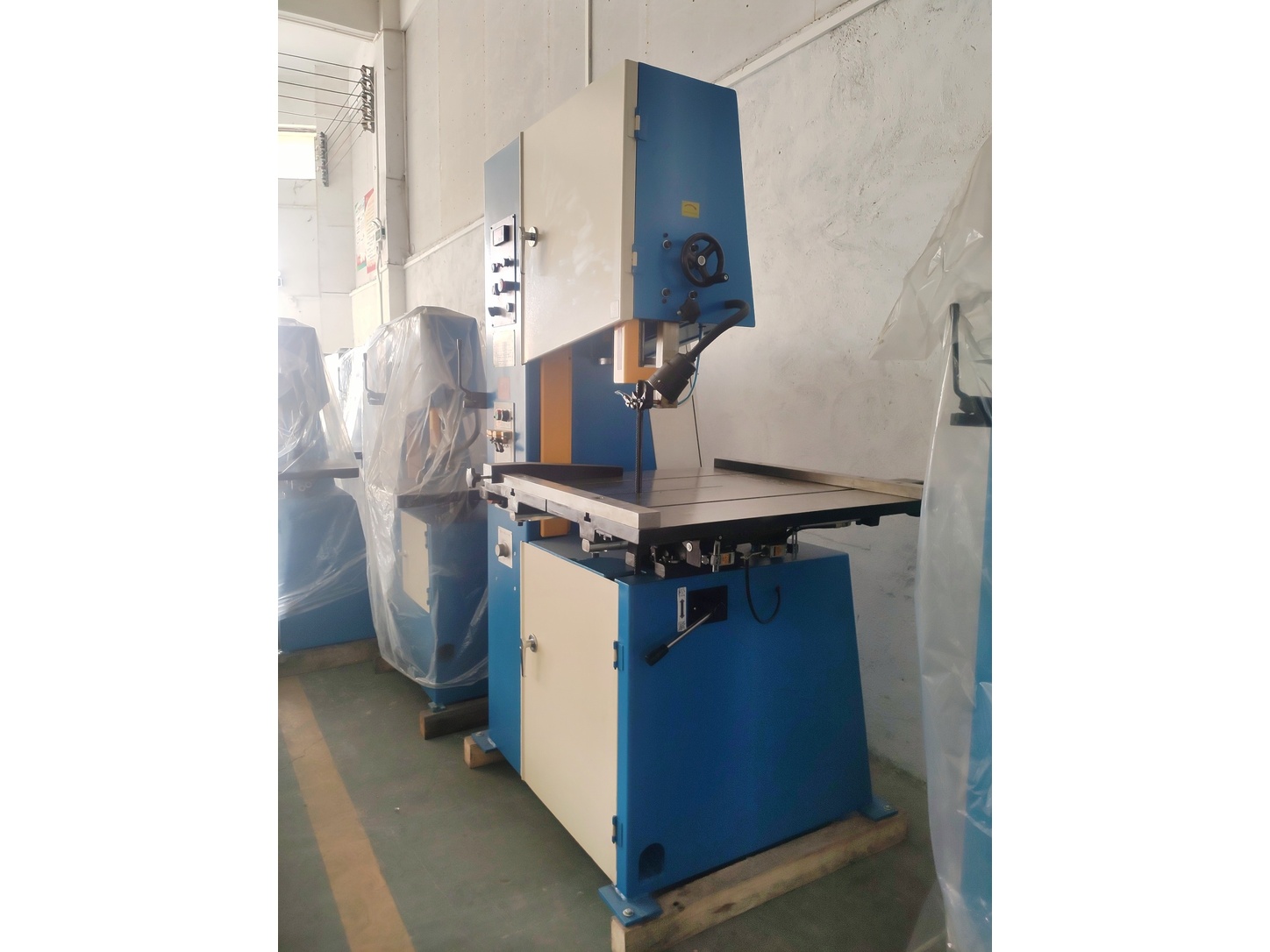

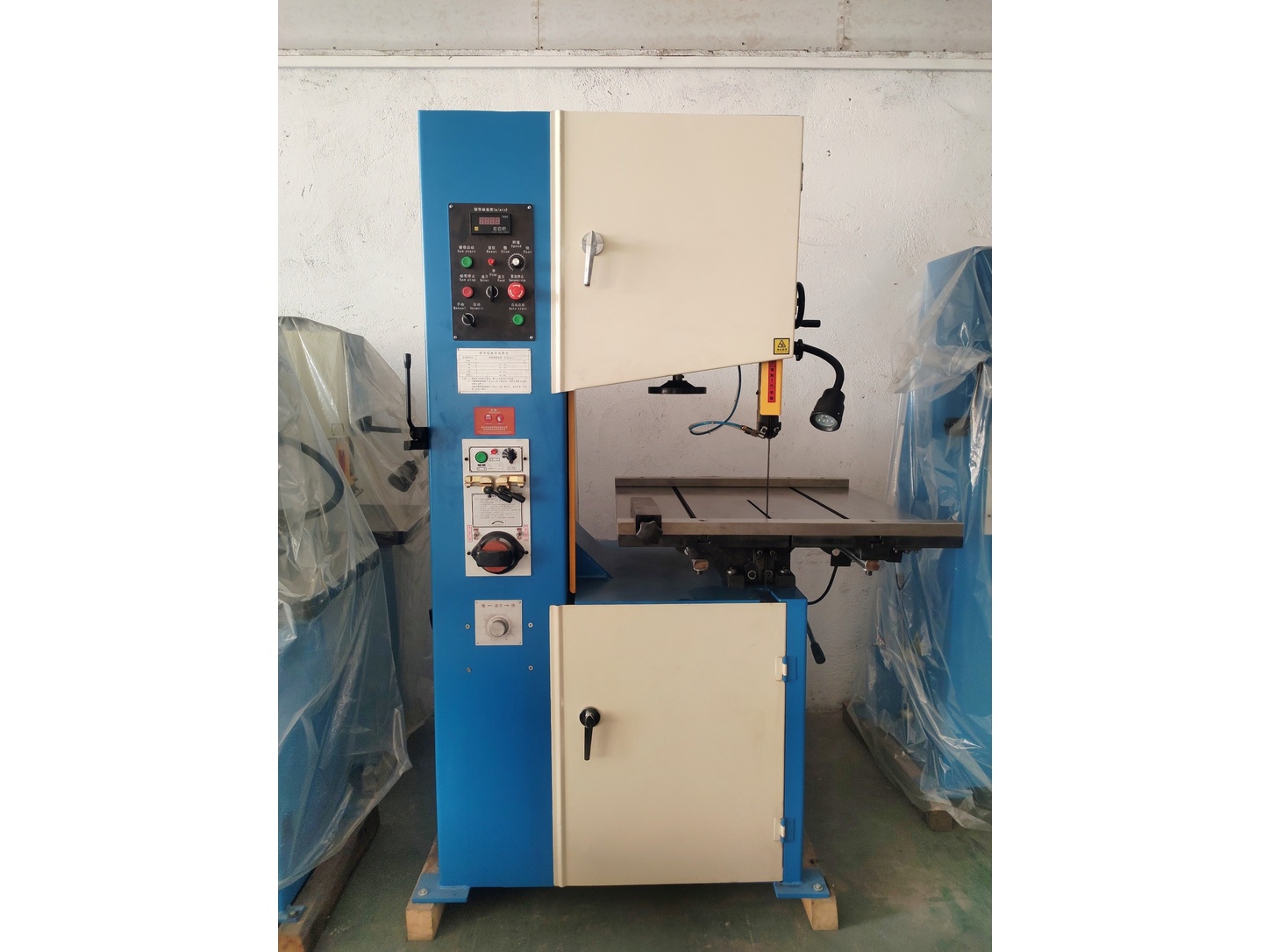

S-500 vertical bandsaw machine is designed for cutting large metal workpieces with stable cutting performance and flexible operation. The machine features adjustable worktable tilting angles, multiple blade speed selections and integrated blade welding capability, making it suitable for industrial metal fabrication and workshop processing applications.
Features:
✓ Vertical bandsaw structure for large workpiece cutting. ✓ Adjustable worktable tilting angles for angle cutting operations. ✓ Multiple saw blade speed options for different materials. ✓ Integrated blade welding function for convenient blade repair. ✓ Stable industrial machine structure for continuous operation. ✓ Suitable for narrow band saw blade cutting applications. ✓ Equipped with working light for improved cutting visibility. ✓ Flexible operation layout with convenient manual controls. ✓ Heavy-duty machine body for industrial workshop environments. ✓ Smooth cutting performance for metal fabrication applications.
Typical Applications:
Mainly designed for cutting metal plates, profiles and industrial workpieces in metal fabrication workshops and machinery manufacturing industries. Suitable for straight cutting and angle cutting operations on various metal materials using vertical band saw blades.
MODEL
S-500
Maximum Sawing Capacity
500mm
Maximum Working Height
320mm
Worktable Size
680×750mm
Saw Blade Length
3930mm
Saw Blade Width
5-19mm
Worktable Tilting Angle
Front And Rear 10° / Left And Right 15°
Main Motor Power
1.5 / 2.4kw (4P/8P)
Variable Speed Power
1HP
Saw Blade Speed 50HZ
34 / 54 / 81 / 134 / 66 / 106 / 159 / 265m/min
Welding Power
5.0kva
Welding Capacity
5-19mm
Machine Weight
Approx. 600kg
Machine Size (L×W×H)
1280×970×2020mm
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
