YP40-200

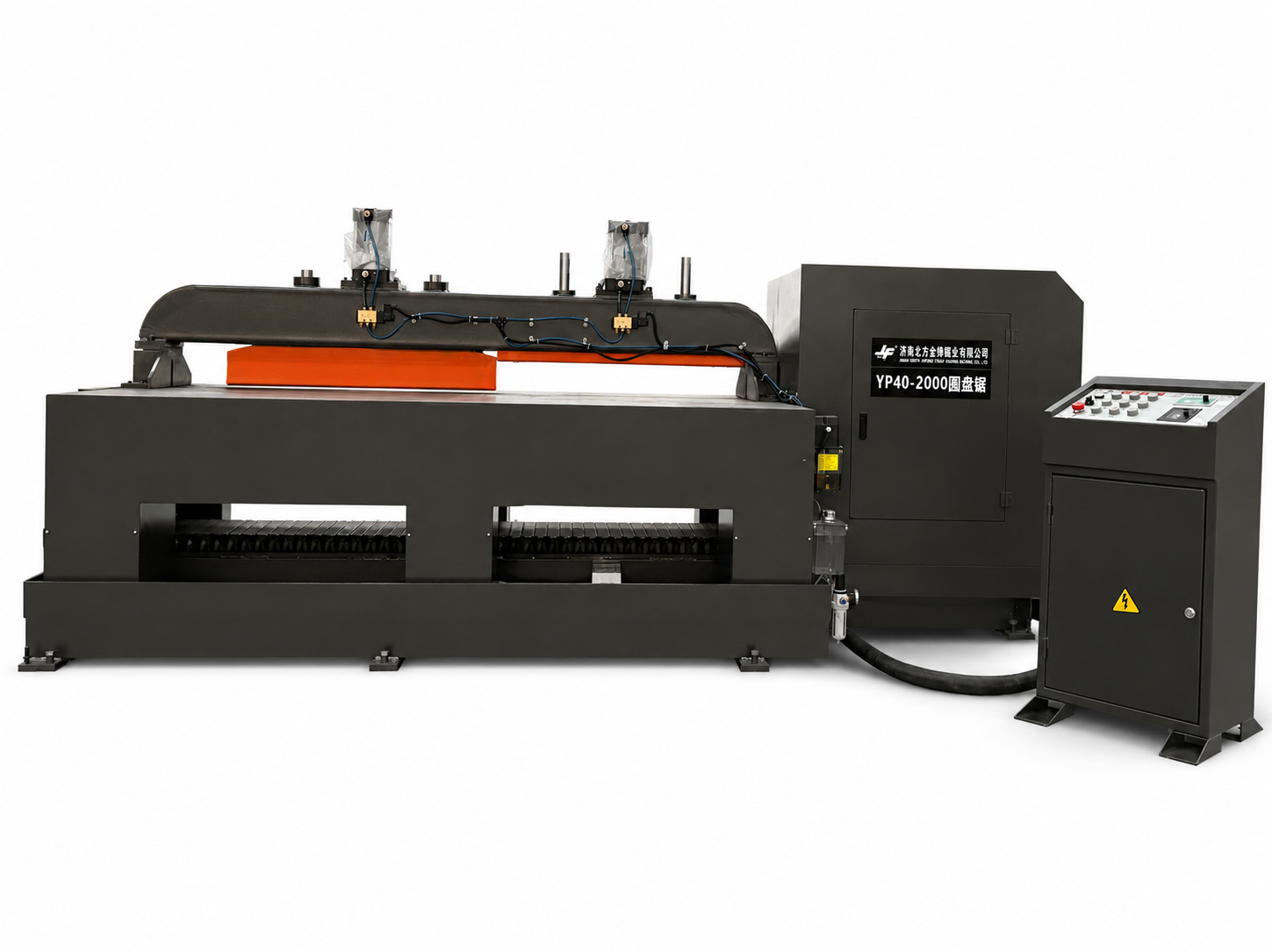

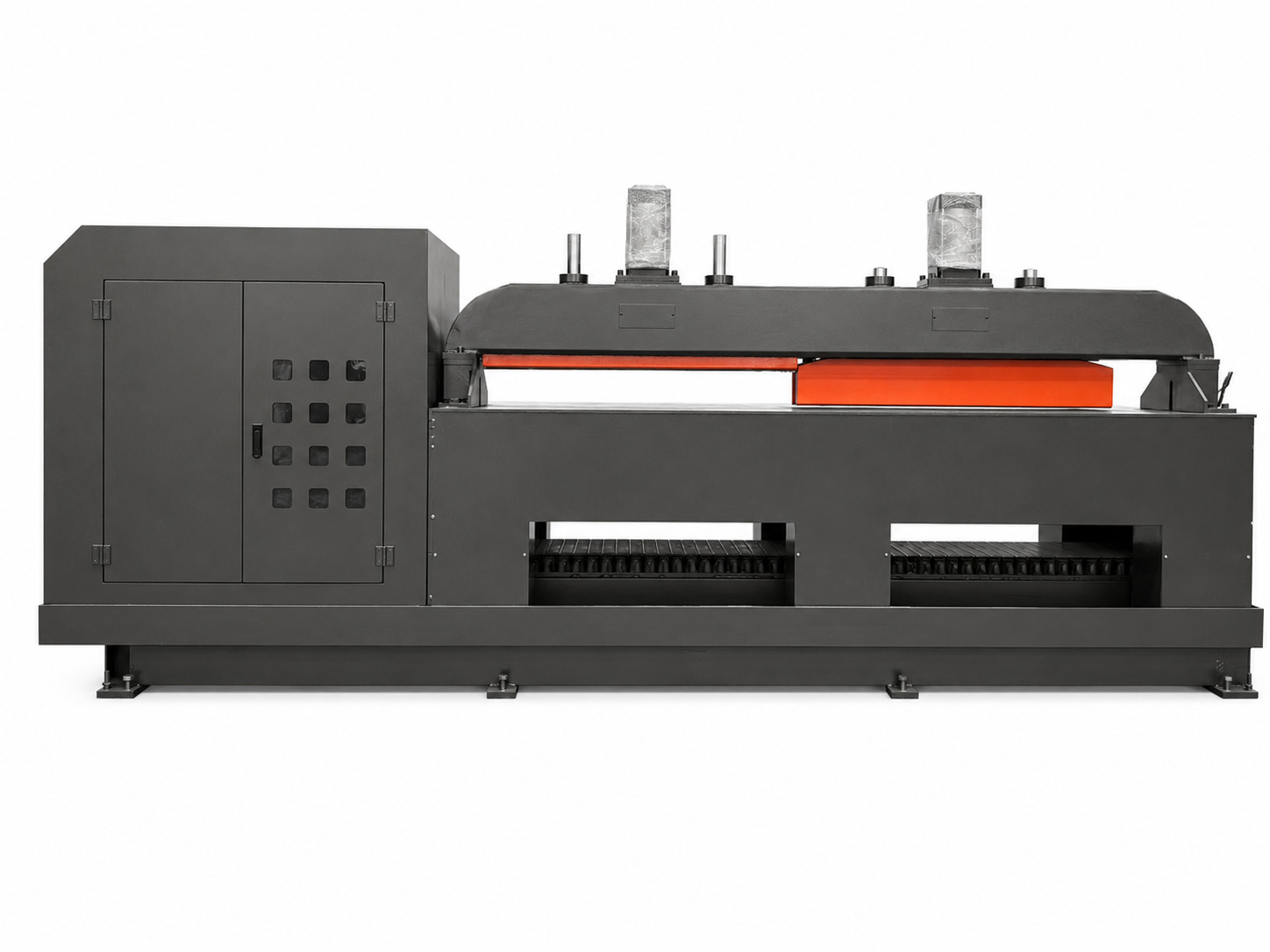

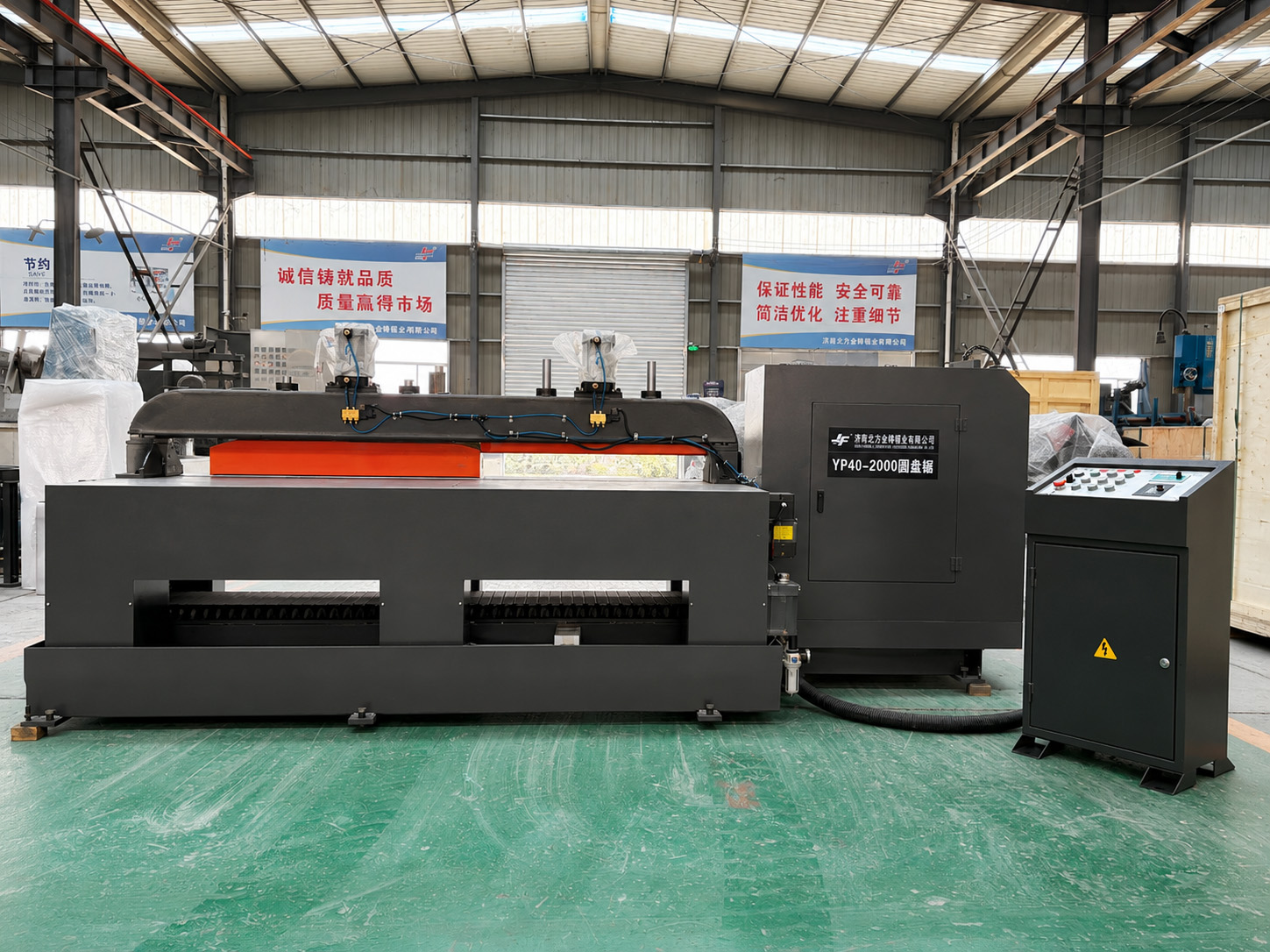

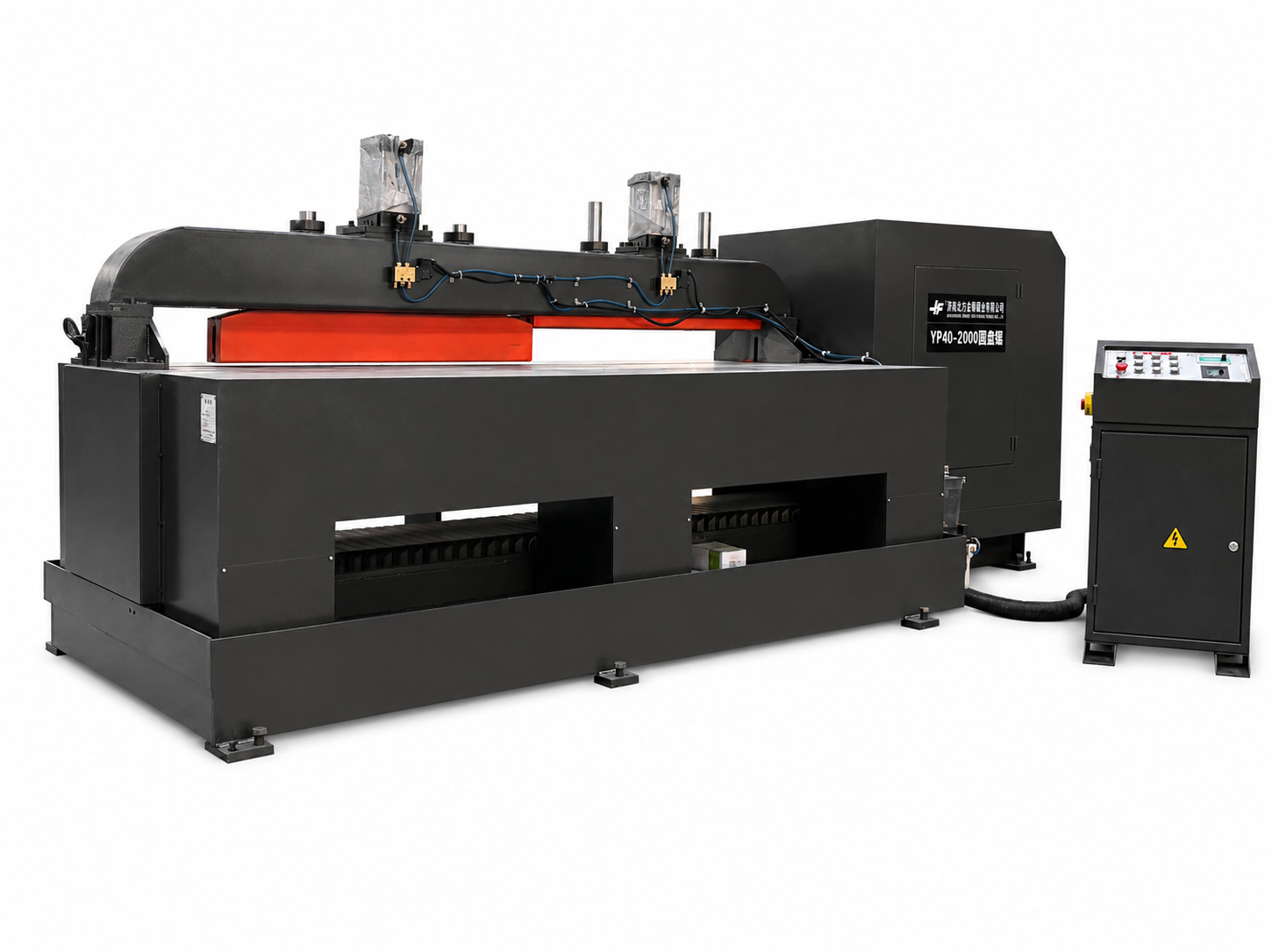

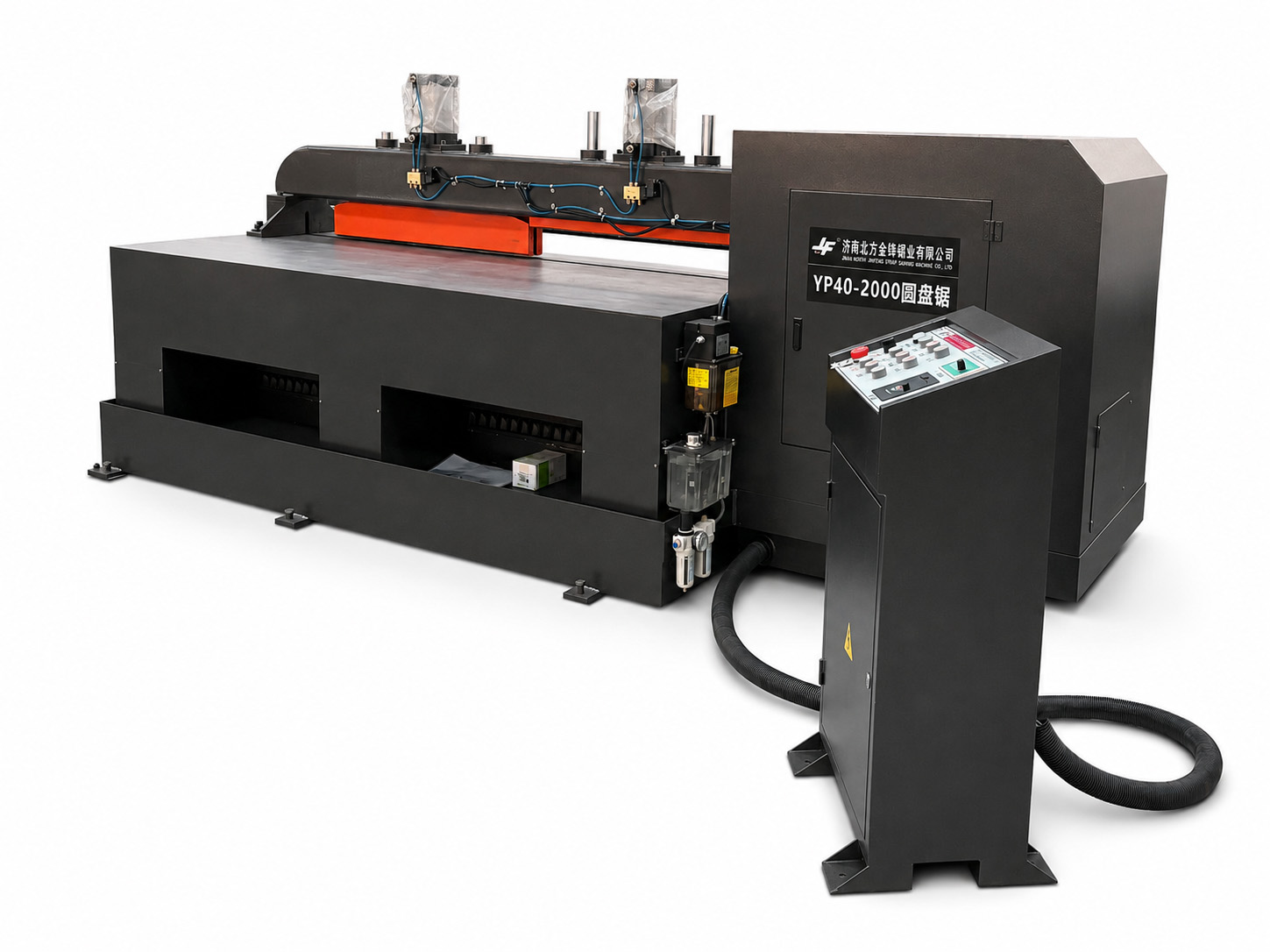

YP40-200 Circular Saw Machine
The YP40-200 circular saw machine is specially designed for efficient cutting of copper plates and flat metal materials. The machine features high cutting efficiency, narrow kerf width, energy-saving performance, and simple operation. Equipped with a full protective cover and independent electrical control system, it provides safer and more stable cutting performance for industrial batch processing applications.
The machine adopts a servo pulse-controlled feeding system combined with ball screw transmission and linear guide rail guidance, ensuring high cutting precision and stable feeding movement during operation. Pneumatic clamping structures improve workpiece stability while increasing cutting efficiency.

Features:

✓ Designed specifically for copper plate and flat metal material cutting applications.
✓ High cutting efficiency with narrow kerf design for material saving.
✓ Servo pulse-controlled blade feeding system for accurate and stable cutting movement.
✓ Pneumatic workpiece clamping system with four clamping groups for secure fixing.
✓ Ball screw transmission combined with linear guide rails improves guiding precision.
✓ Direct spindle connection structure ensures stable power transmission and smooth operation.

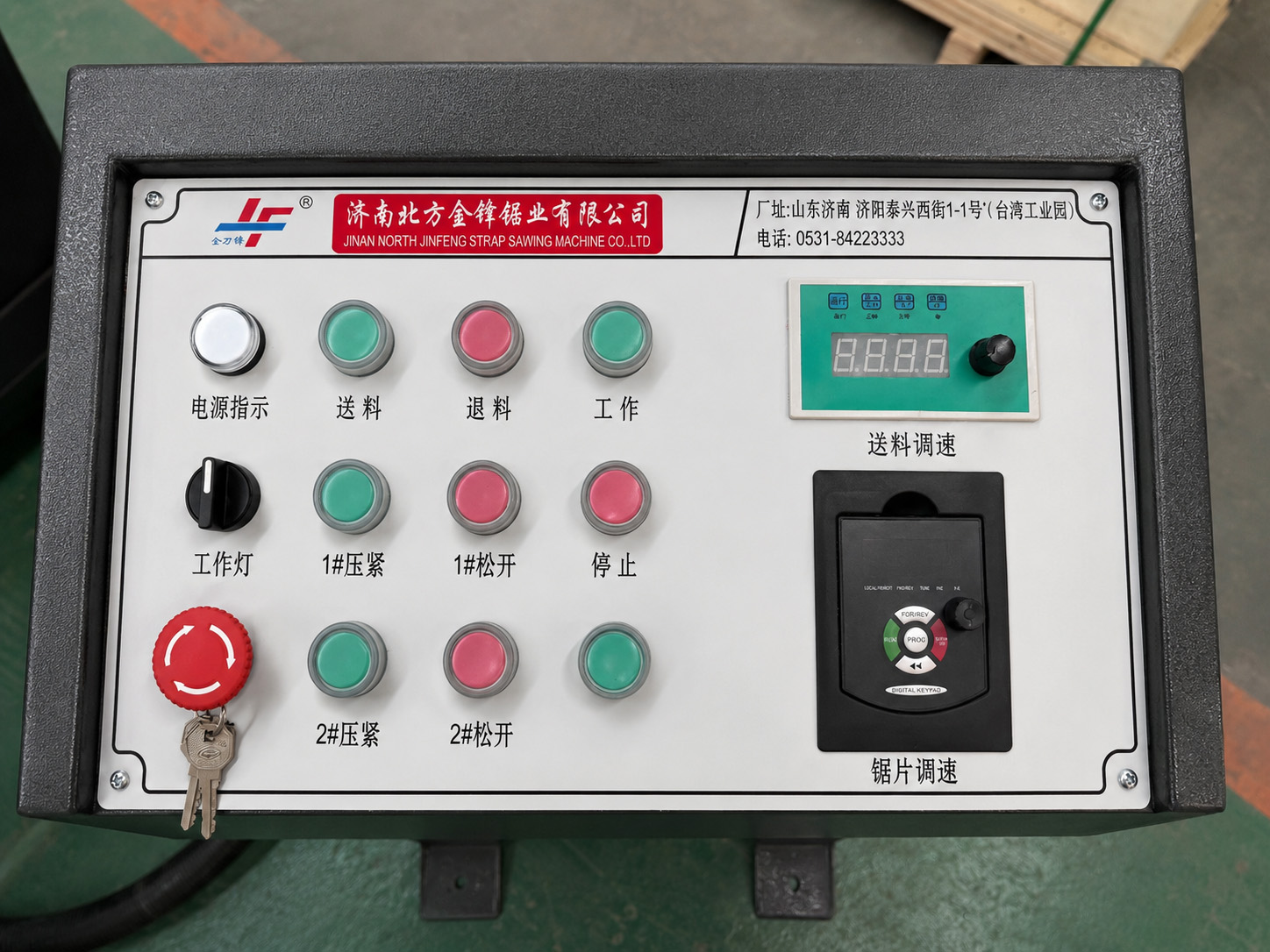

✓ Semi-automatic push-button control simplifies machine operation.
✓ Spray cooling system improves cooling efficiency and extends saw blade life.
✓ Infrared blade alignment device improves positioning accuracy during cutting.
✓ Fully enclosed blade protection cover enhances operational safety.
✓ Independent electrical control cabinet with interlock protection system for safe operation.
✓ Heavy-duty welded steel structure processed with aging treatment for improved stability and reduced deformation.

Typical Applications:

Suitable for cutting copper plates, aluminum plates, flat metal sheets, and non-ferrous metal materials in metal processing workshops, industrial manufacturing plants, and batch production applications.
