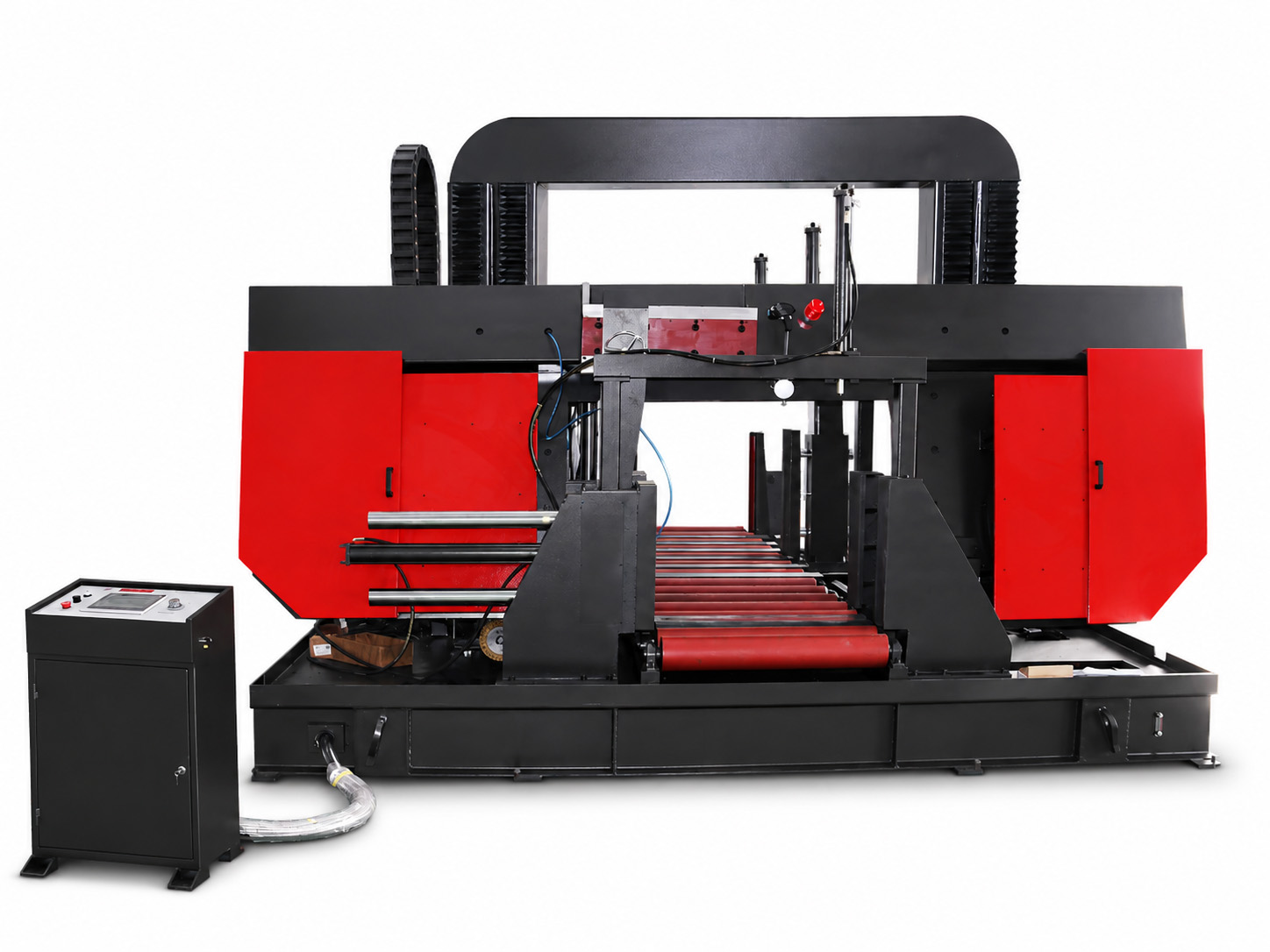

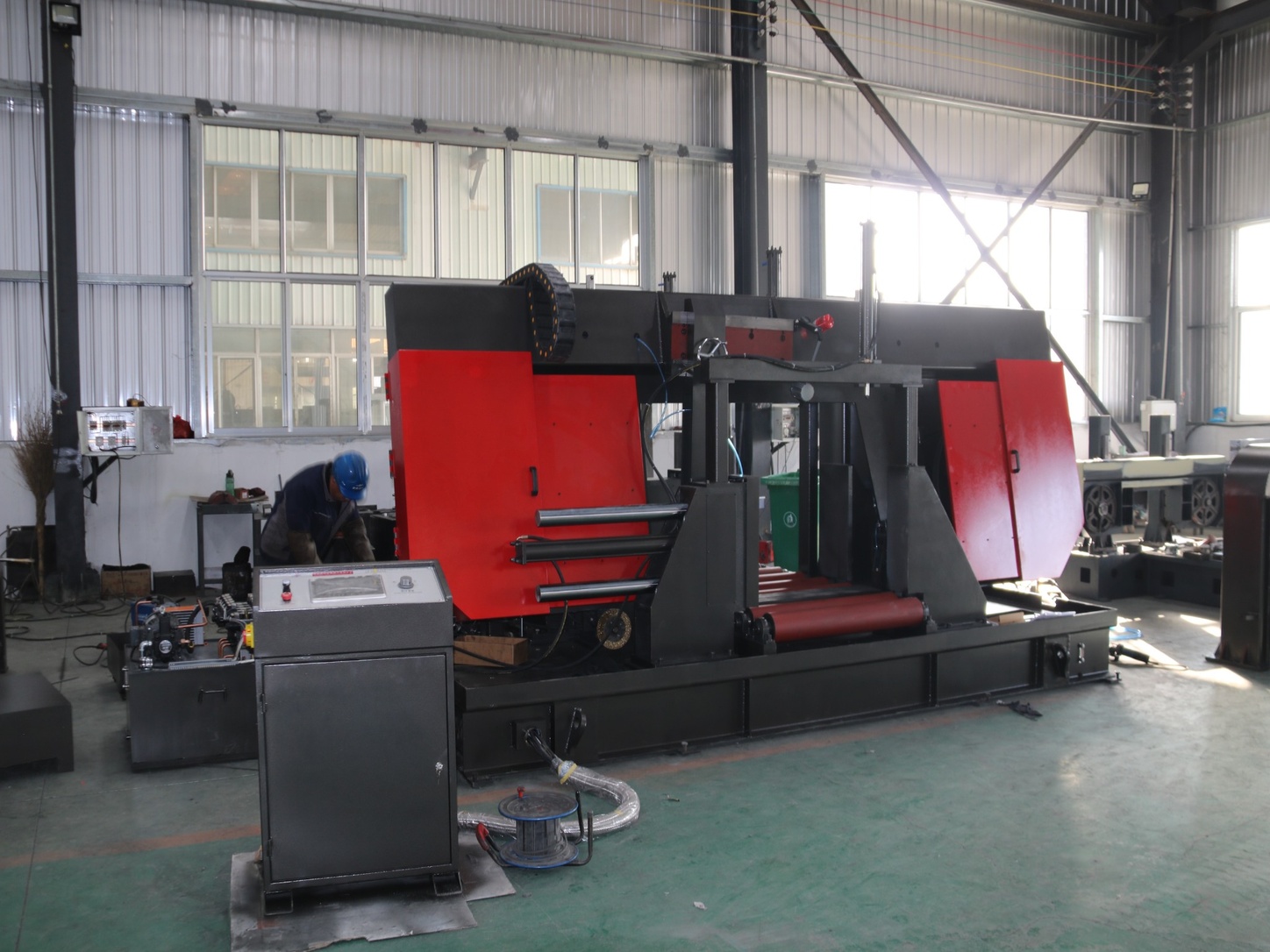

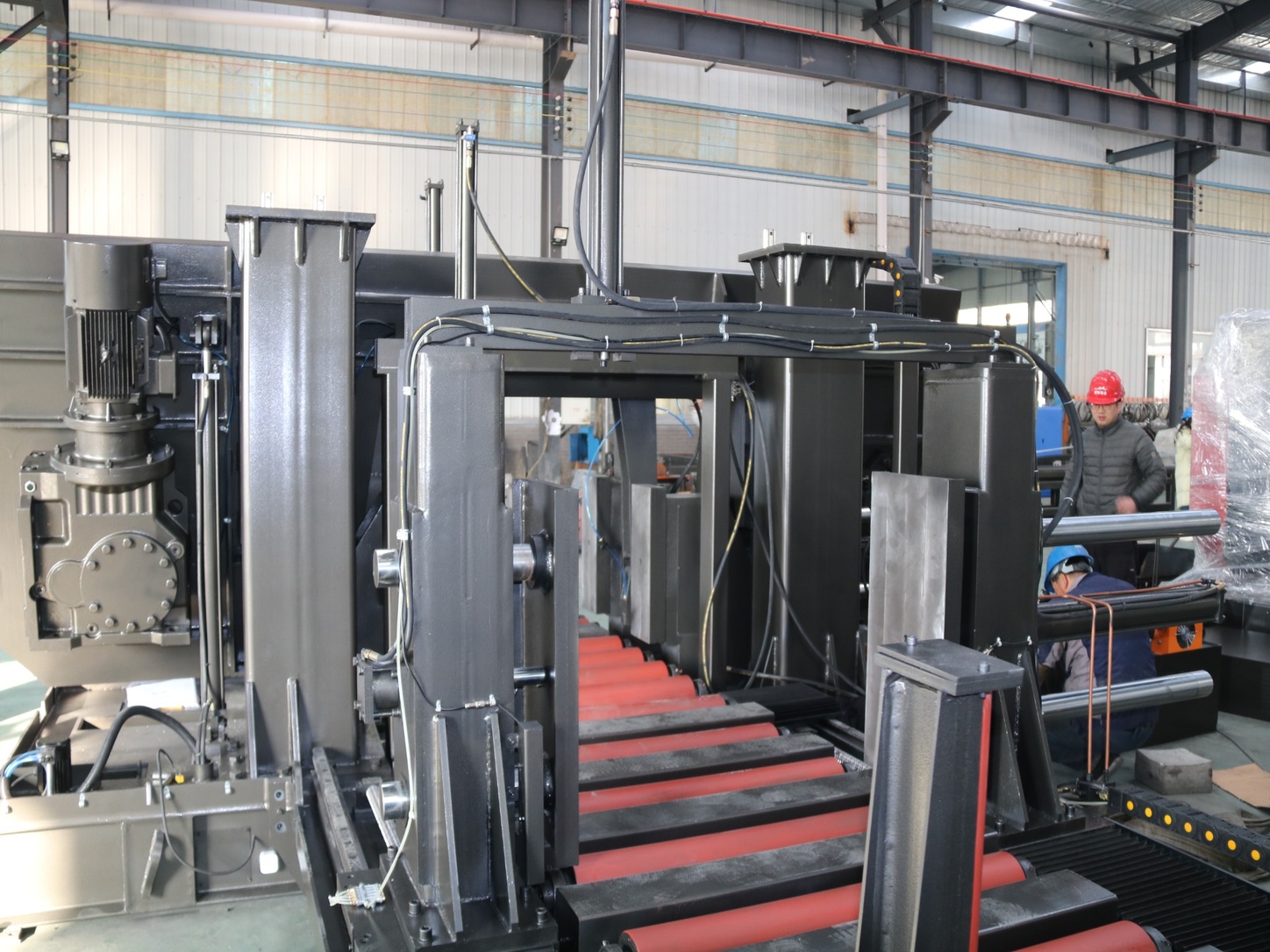

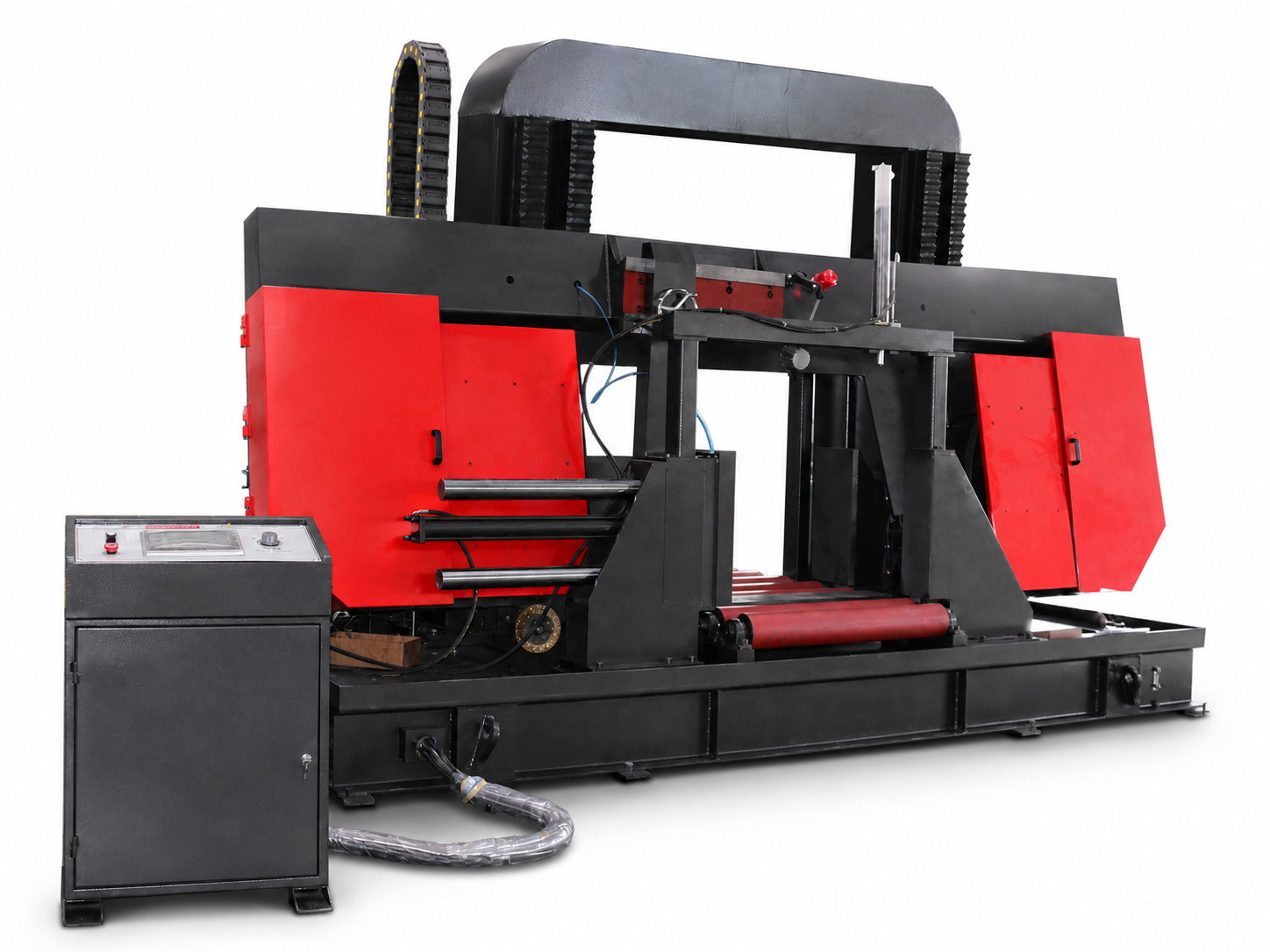

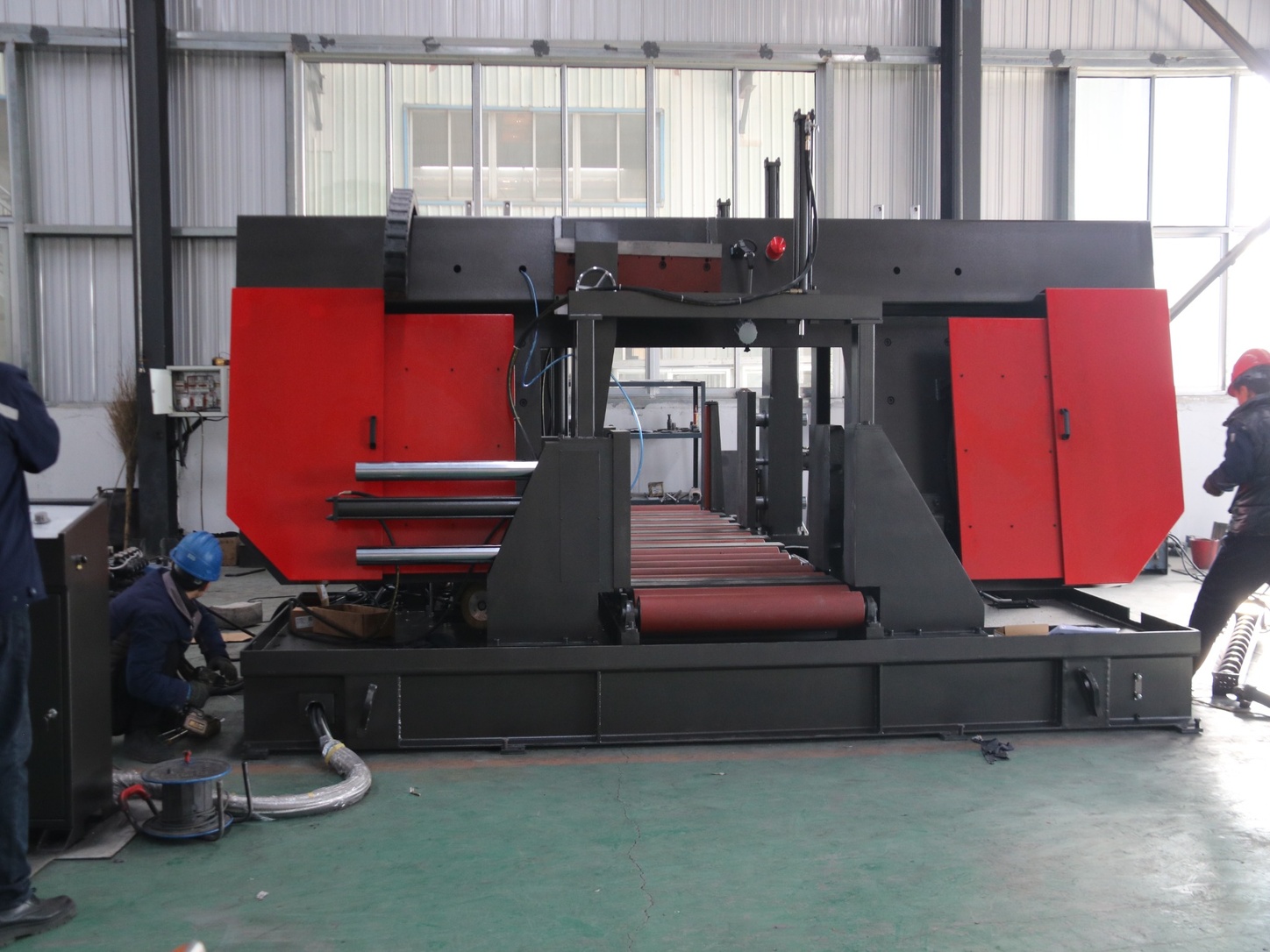

Fully automatic CNC gantry band sawing machine designed for large-size and heavy-duty metal cutting applications. Suitable for continuous cutting operations in industrial manufacturing and steel processing environments.
Features:
√ CNC parameterized control system for automatic operation. √ Servo-driven feeding system with 2000mm single feeding length. √ Hydraulic double vise and double pressure clamping structure. √ Variable frequency blade speed adjustment: 20–100m/min. √ Hydraulic stepless feed speed control. √ Roller-assisted material rack system. √ Front and rear roller feeding tables with side protection structure. √ Suitable for heavy-duty continuous cutting applications.
Typical Applications:
Mainly designed for cutting large metal bars, square materials, heavy structural steel, and industrial metal sections. Suitable for heavy-duty straight cutting applications in steel processing plants, machinery manufacturing workshops, metal fabrication factories, and industrial production lines.
MODEL
GS1000
Maximum Cutting Capacity (mm)
● Ø1000mm
■ W1000 × H1000mm
Saw Blade Size
10000 × 67 × 1.6mm
Saw Blade Speed
20–100m/min (Variable Frequency Speed Regulation)
Feed Speed
Hydraulic Stepless Speed Regulation
Input Power Supply
AC380V 50Hz
Main Motor Power
11KW
Hydraulic Motor Power
2.2KW
Clamping Method
Hydraulic Double Vise Double Pressure Clamping
Feeding Method
Servo Drive
Single Feeding Length
2000mm
Control System
CNC Parameterized Control
Material Rack
Roller-Assisted Feeding Rack
Roller Table Length
Front and Rear 2m Roller Tables
Safety Protection
Side Plate Protection Device
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
