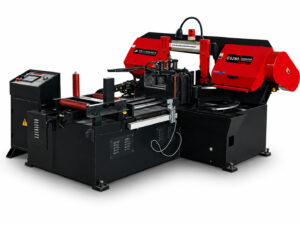

Fully automatic NC sawing machine, suitable for continuous cutting in mass production.
Features:
✓ Using a PLC control system, one or several sets of data can be set for continuous cutting. ✓ Color touch screen operation replaces the traditional button control panel with a human-machine interface. ✓ Manual and automatic dual-function selection. ✓ Using a grating ruler to control the feeding length, with high accuracy.
Typical Applications:
Mainly designed for bars, tubes/pipes, or structural sections of metal materials. It is well suited for cutting round or square stock with a diameter or side length within 260 mm, as well as bundles of small workpieces up to 240 × 80 mm. As a general-purpose model, it is capable of handling most routine cutting and blanking tasks in metalworking.
MODEL
GS260
Maximum Cutting capacity(mm)
● Ø260mm
■ W260×H260mm
Maximum bundle cutting capacity
260W × 80H
Main motor power(kw)
2.2kw 3 phase 380v/50hz or customized
Hydraulic motor power(kw)
0.42kw 3 phase 380v/50hz or customized
Cooling motor power(kw)
0.04kw 3 phase 380v/50hz or customized
Saw blade speed(m/min)
40/60/80m/min(regulated by cone pulley)
Saw blade size(mm)
3152×27×0.9mm
Maximum feeding length/time
Maximum feeding length is 400mm/time, if cut longer than 400mm,
the feeding table could feed several times repeatedly.
Work piece clamping
Hydraulic vise
Saw blade tension
manual
Machine Size (L×W×H)
2100×1550×1400mm
Weight(kg)
820kg
Optional configuration
1, 20-80m/min regulated by inverter
2, saw blade tension: hydraulic
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
