GS400

GS400

  • Saw Type:Bandsaw
  • Cutting Option:Straight cut
  • Automation:Fully Automatic CNC
  • Cutting Materials:Metal material
  • Material Width:400MM
  • Material Height:400MM

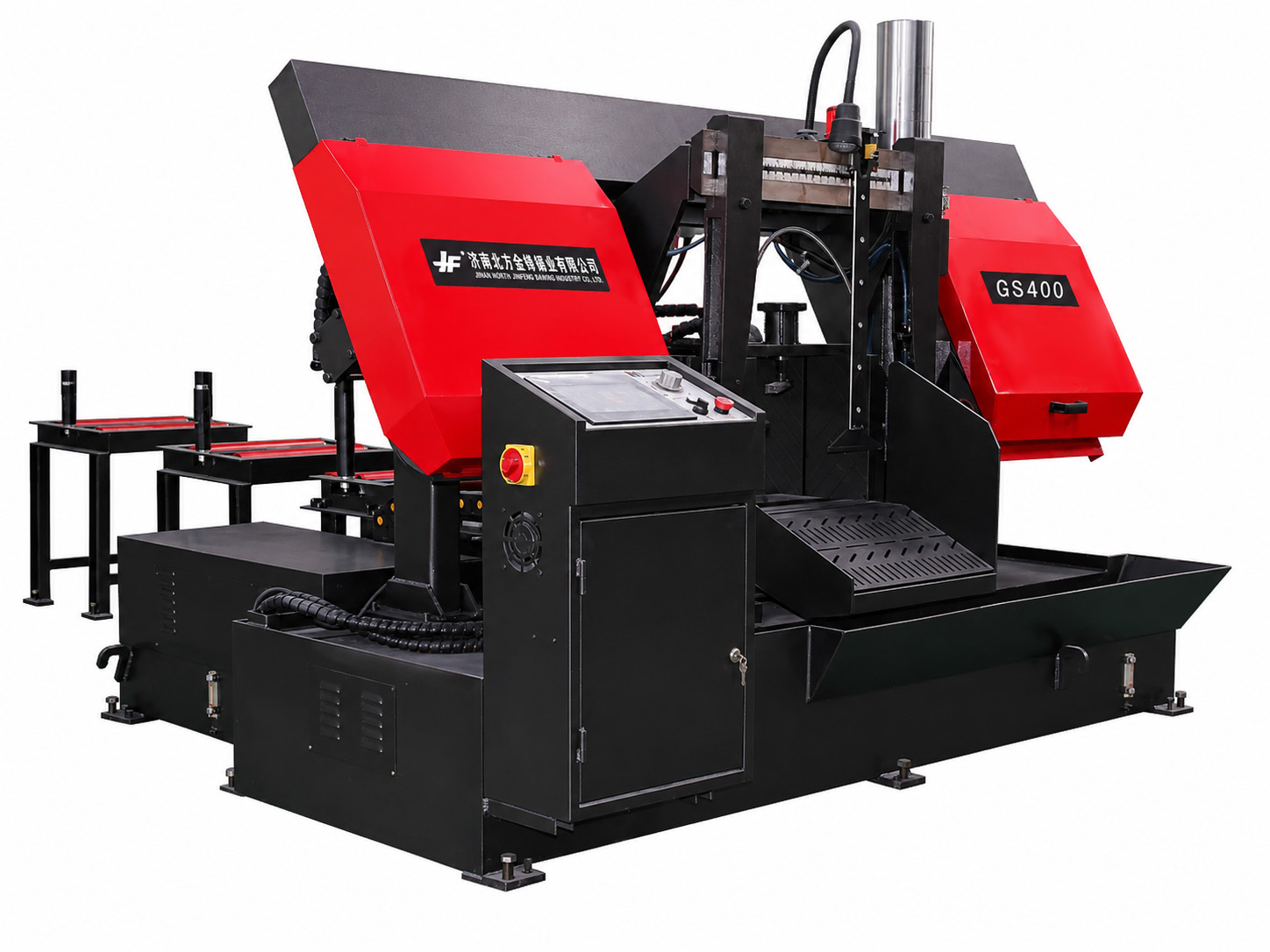

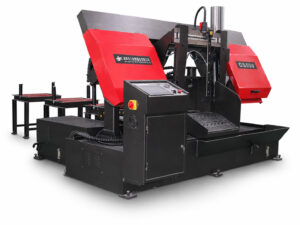

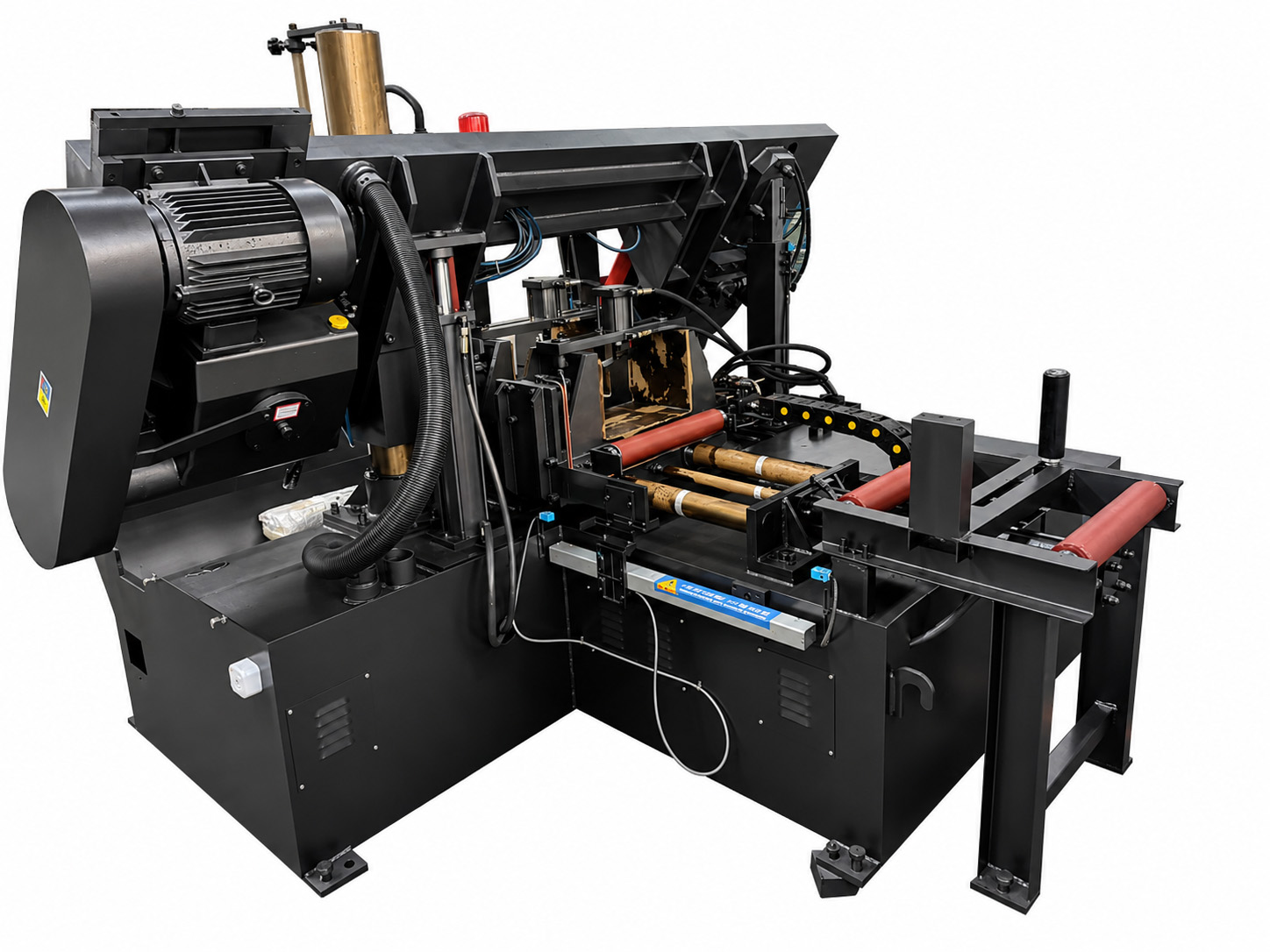

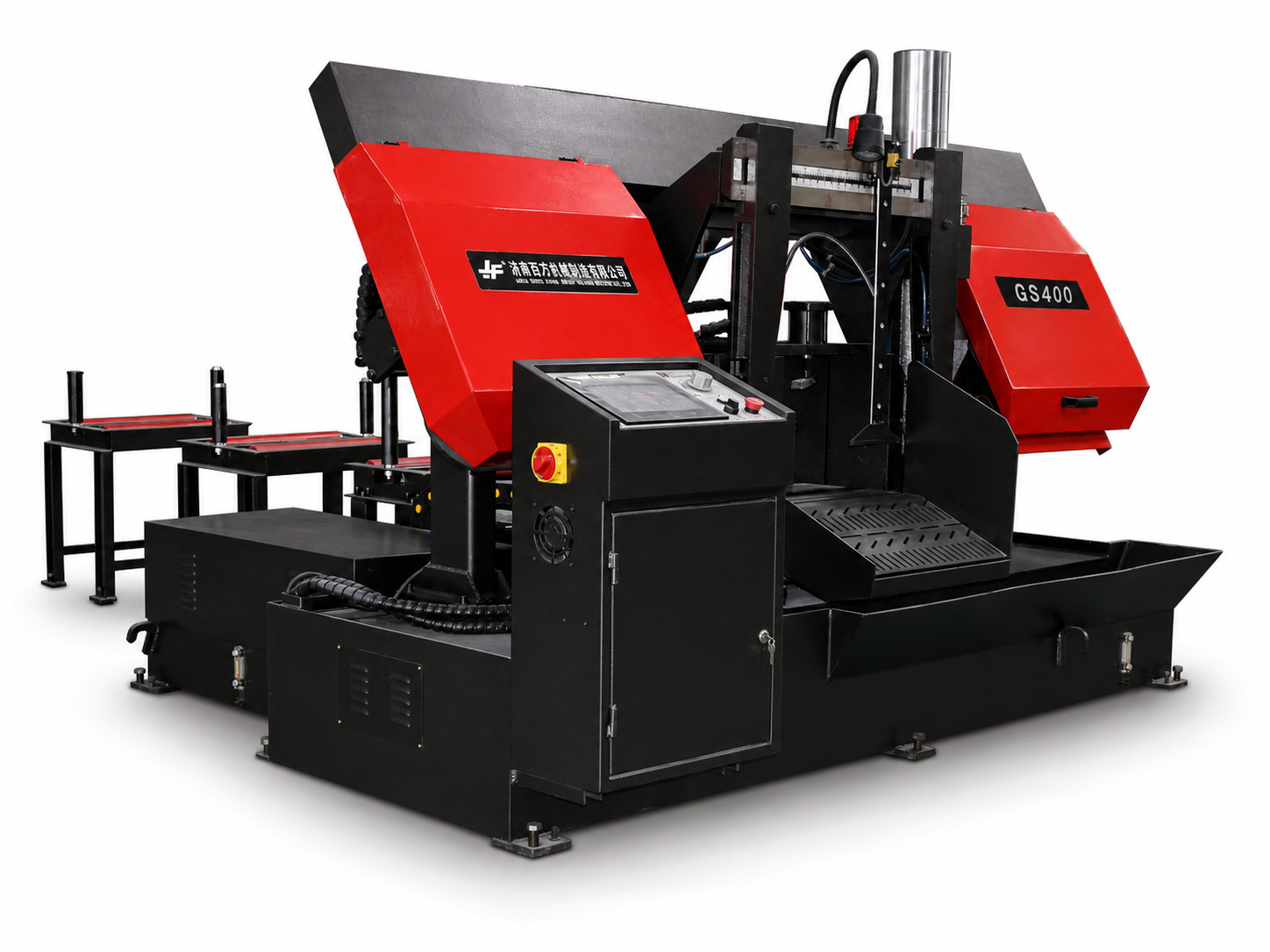

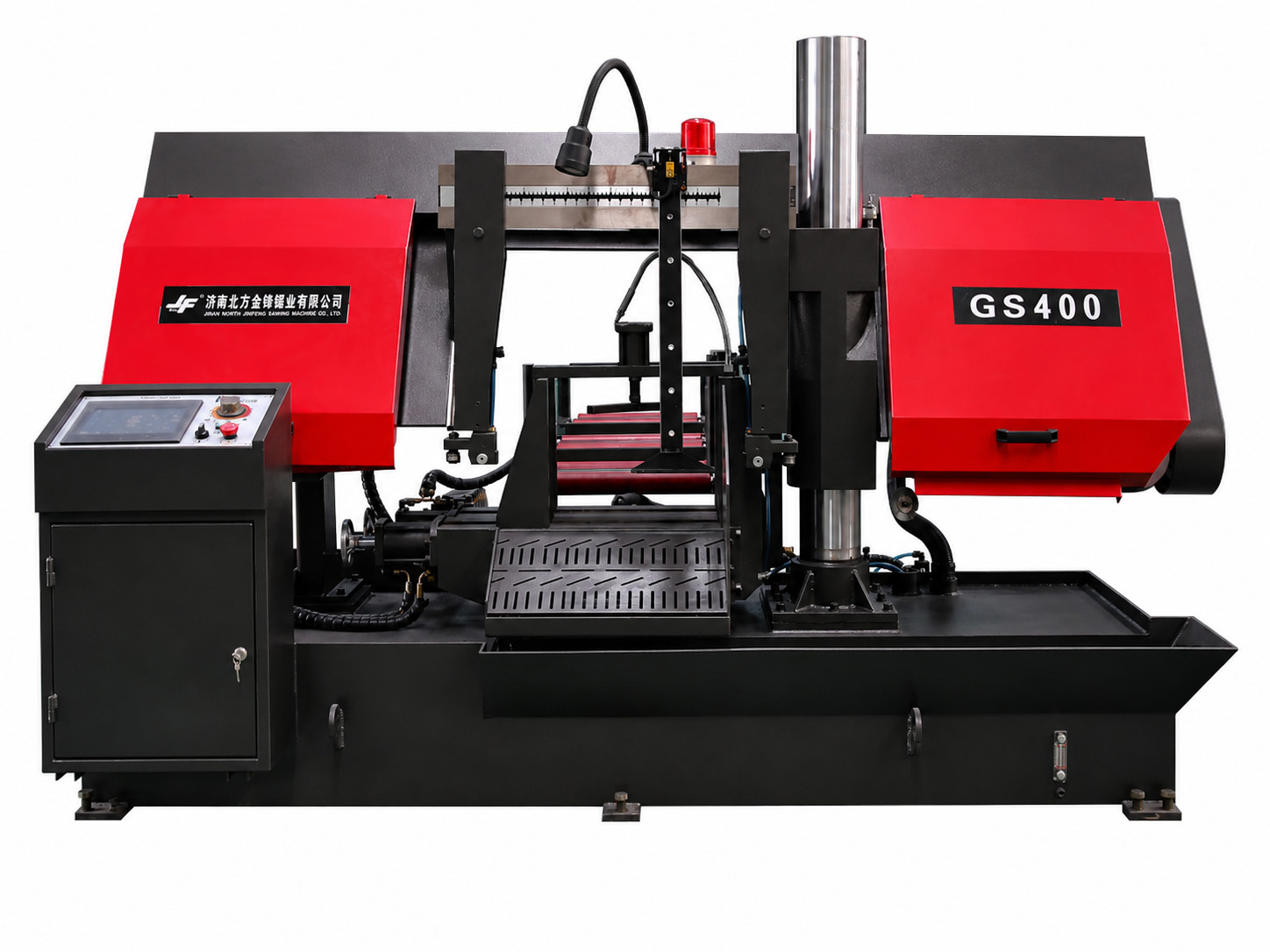

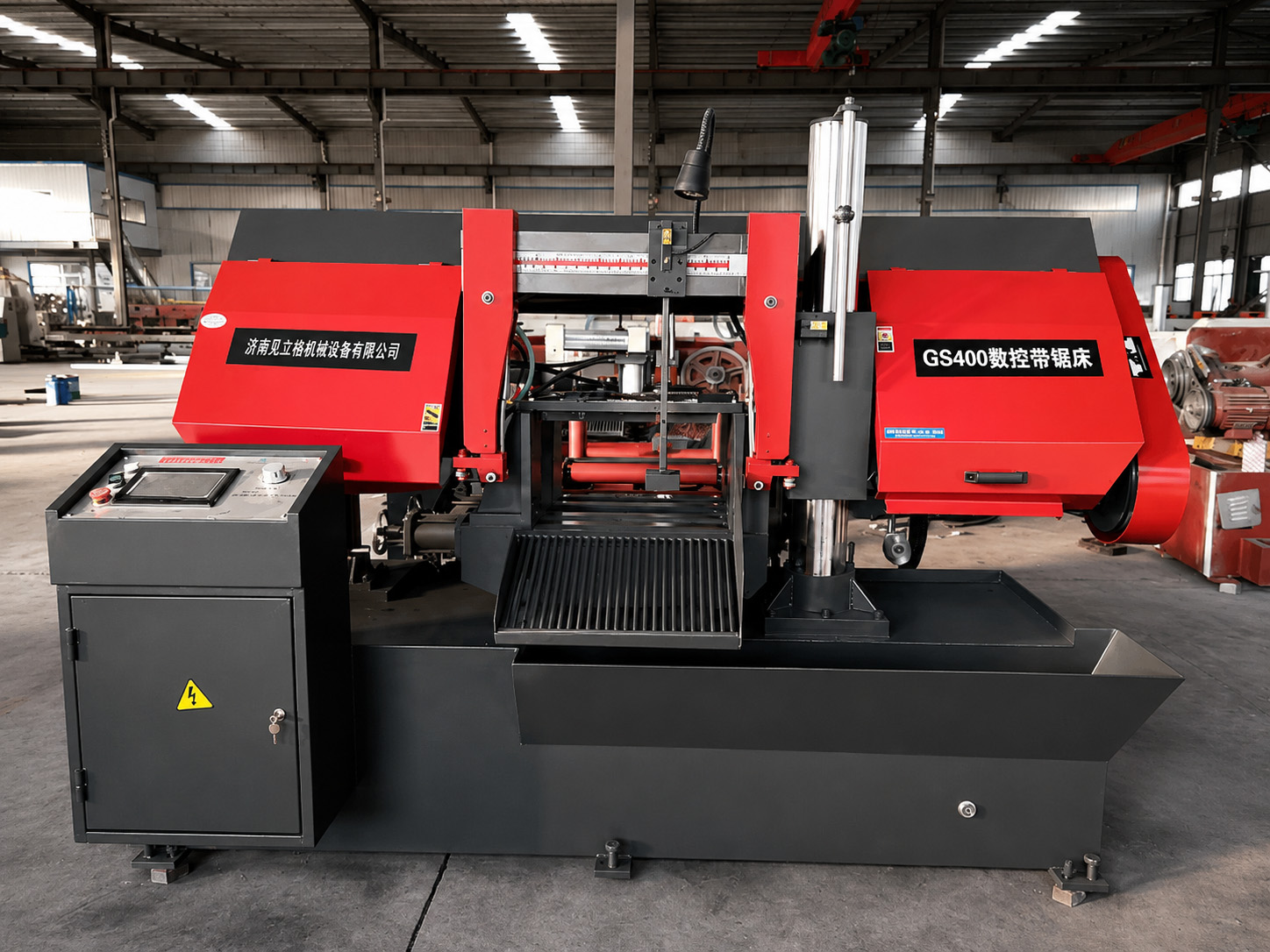

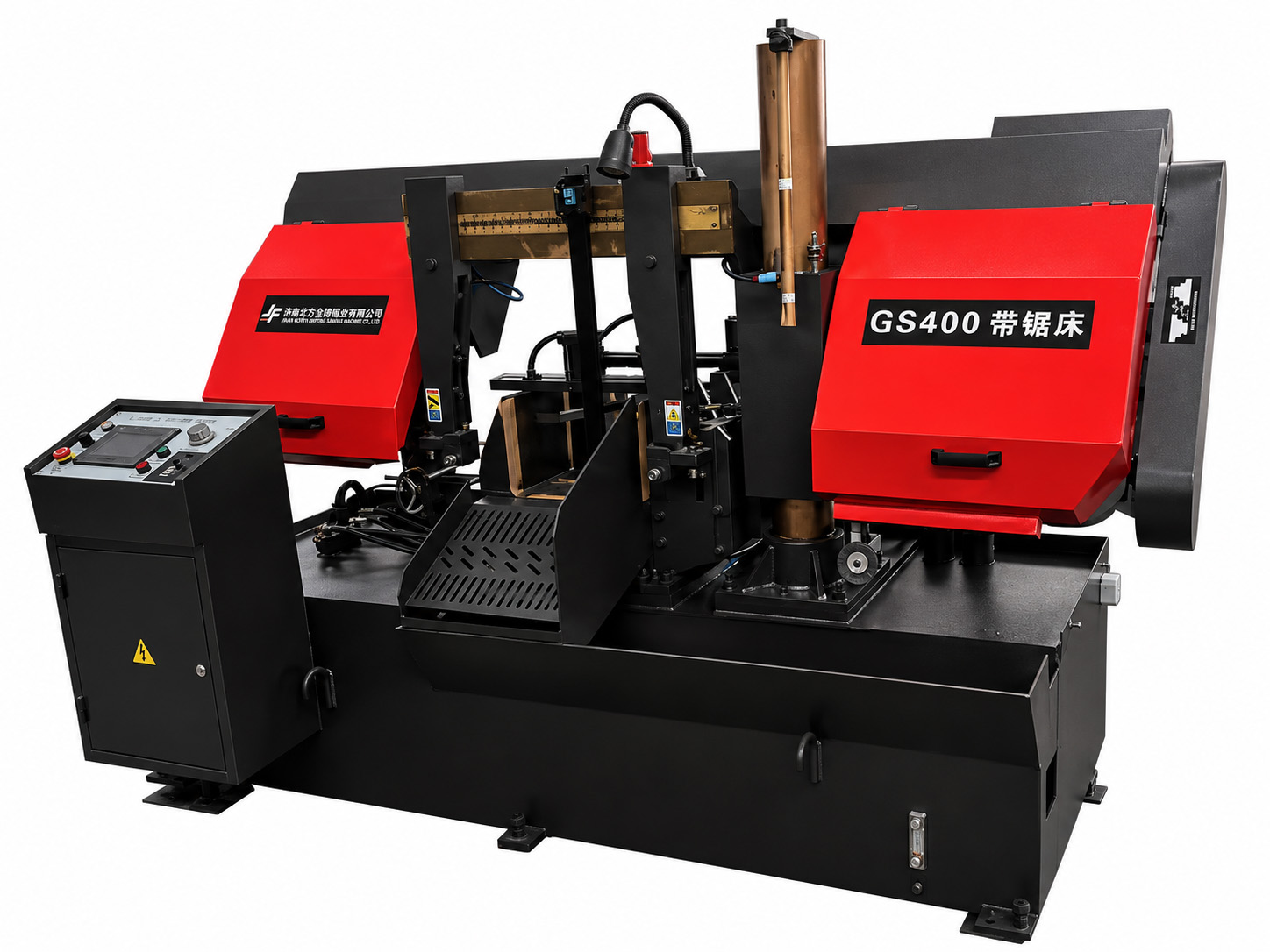

Fully Automatic CNC Band Saw Machine

Fully automatic CNC band saw machine suitable for continuous cutting in mass production.
Designed for round materials, square materials, tubes, profiles and bundle cutting applications.

Features:

✓ PLC control system for continuous automatic cutting.
✓ Color touch screen operation with human-machine interface.
✓ Feeding accuracy reaches ±0.2mm.
✓ Roller feeding system for stable material transportation.
✓ Maximum feeding stroke is 500mm with repeated feeding support.
✓ Hydraulic vise clamping for stable cutting performance.

Typical Applications:

Mainly designed for cutting round steel, square steel, metal tubes, structural materials, and bundle materials. Suitable for industrial metal processing applications and workshop production environments.

MODEL GS400
Maximum Cutting Capacity(mm) ● Round: Φ400mm
■ Rectangular: 400mm(W) × 400mm(H)
Bundle Cutting Capacity Maximum: 300×160mm(W×H) Minimum: 200×90mm(W×H)
Main Motor Power(kw) 4.0KW 3 phase 380v/50hz
Hydraulic Motor Power(kw) 0.75KW 3 phase 380v/50hz
Coolant Pump Power(kw) 0.09KW 3 phase 380v/50hz
Blade Speed(m/min) 40/60/80m/min by inverter
Saw Blade Size(mm) 4900×41×1.3mm
Work Piece Clamping Hydraulic Vise
Blade Tension Manual
Maximum Feeding Stroke/Time 500mm, repeated feeding supported for longer materials
Feeding Accuracy ±0.2mm
Feeding Mode Roller feeding
Table Height 650mm
Machine Size (L×W×H) 2500×2250×1720mm
Machine Weight(kg) 1800kg
Optional Configuration 1. 20-80m/min inverter controlled blade speed 2. Hydraulic blade tension 3. Spiral chips conveying device
REQUEST A QUOTE

All machinery models are fully customizable

We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
