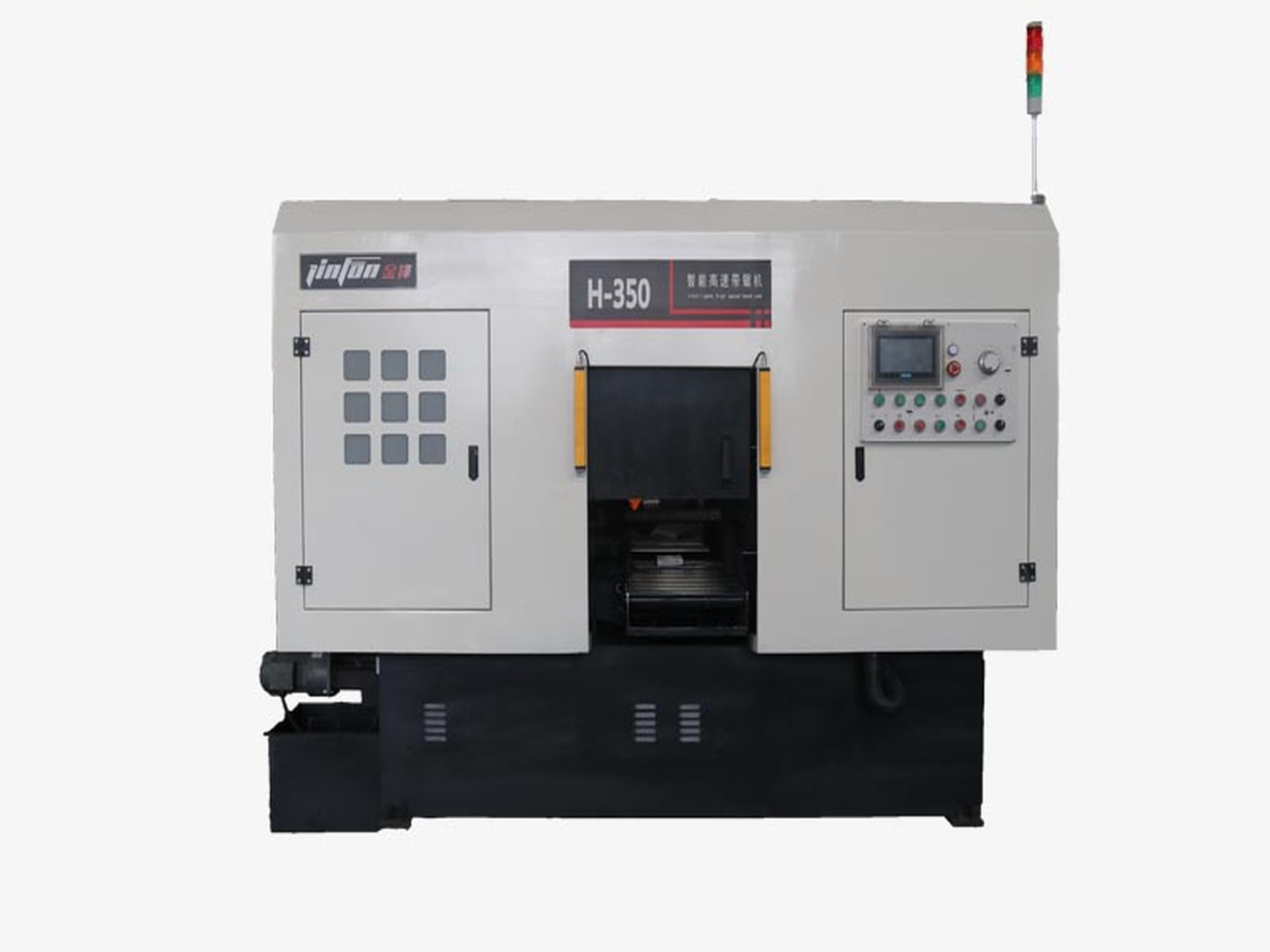

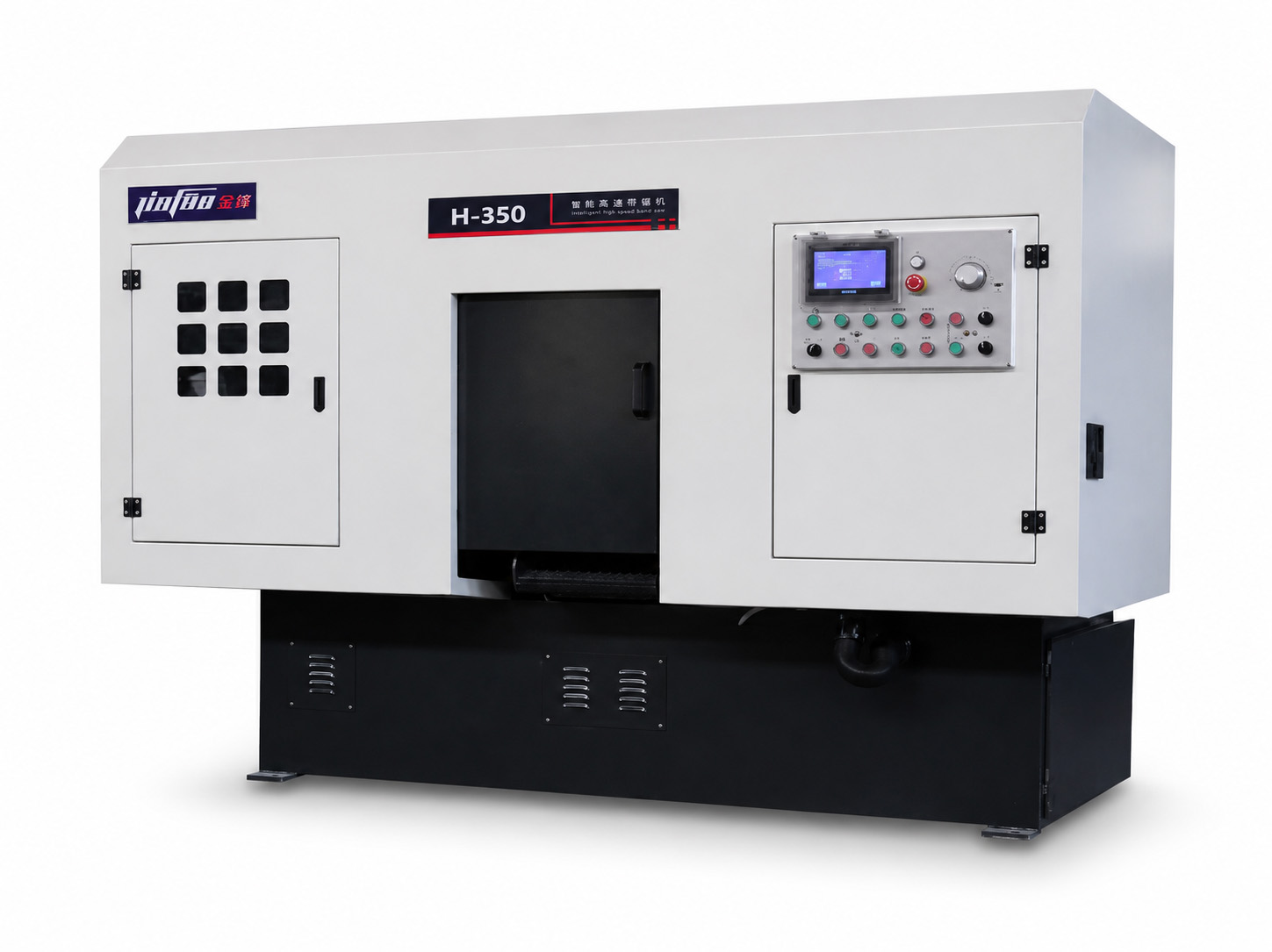

H-350 Intelligent CNC High-Speed Band Sawing Machine
Fully automatic CNC horizontal band sawing machine designed for continuous batch cutting applications. Suitable for high-efficiency metal cutting operations in industrial production environments.
Features:
√ PLC control system with touch screen human-machine interface. √ Double column gantry structure with linear guide rail system. √ Hydraulic cylinder driven lifting system for stable cutting accuracy. √ Hydraulic vise clamping structure with stable and fast clamping performance. √ Intelligent cutting program automatically adjusts cutting speed according to cutting force changes. √ High-precision feeding control system driven by servo motor or grating ruler system. √ Steel brush chip cleaning system for efficient chip removal. √ Optional spiral chip conveyor available. √ Variable frequency blade speed regulation system.
Typical Applications:
Mainly designed for cutting metal bars, tubes, pipes, and structural steel materials. Suitable for continuous straight cutting applications in machinery manufacturing, metal processing workshops, industrial fabrication plants, and batch production environments.
MODEL
H-350
Maximum Cutting Capacity (mm)
● Ø350mm
■ W350 × H350mm
Maximum Bundle Cutting Capacity
350 × 150mm
Saw Blade Size
4600 × 41 × 1.3mm
Saw Blade Speed
20–100m/min (Variable Frequency Speed Regulation)
Main Motor Power
5.5KW
Hydraulic Motor Power
1.5KW
Cooling Motor Power
0.09KW
Clamping Method
Hydraulic
Saw Blade Tension
Hydraulic
Main Transmission Structure
Worm Gear
Maximum Single Feeding Stroke
≤500mm
Feeding Method
Reciprocating Feeding for Long Materials
Worktable Height
680mm
Machine Weight
2000kg
Machine Size (L×W×H)
2350 × 2150 × 1780mm
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
