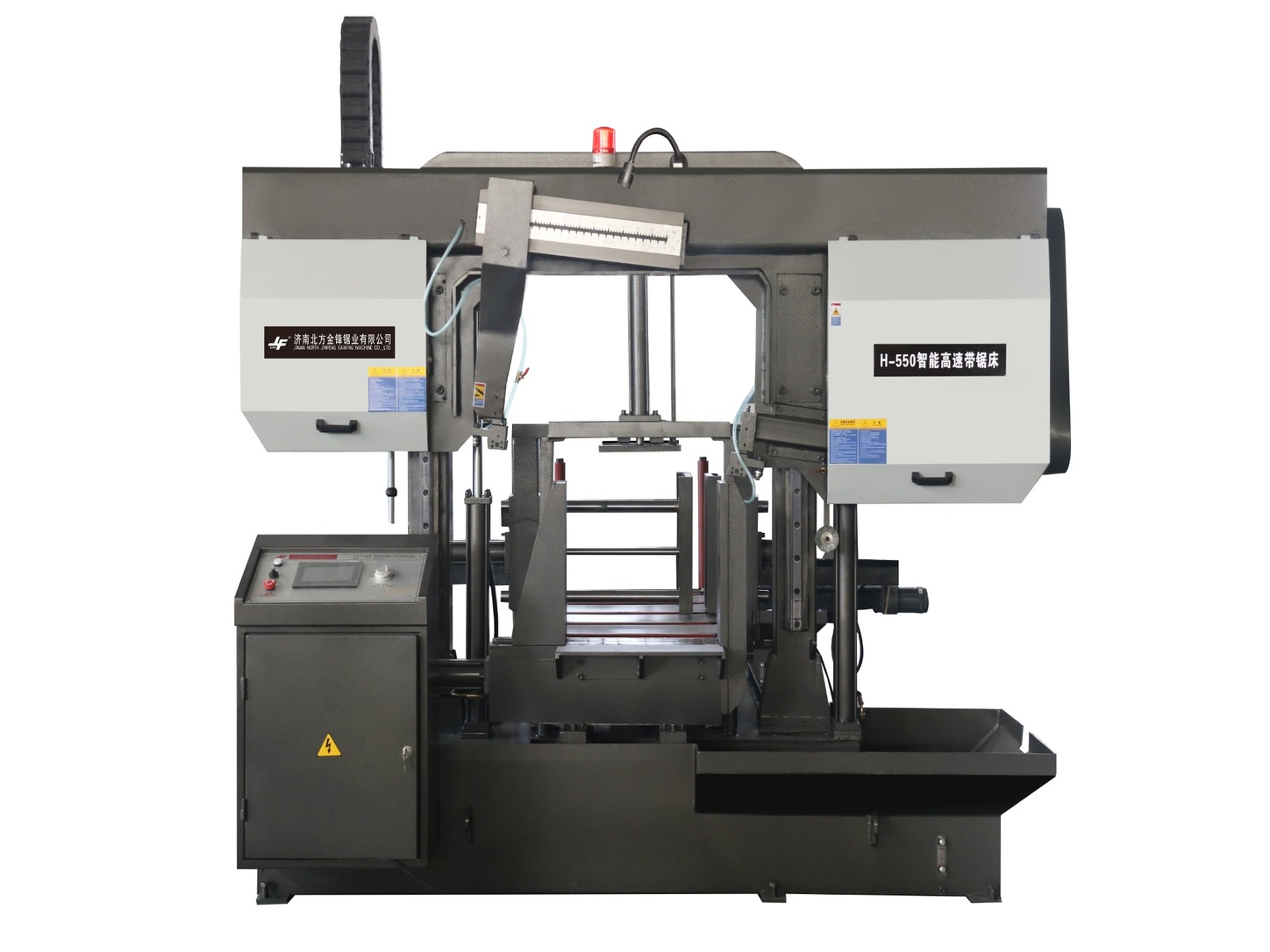

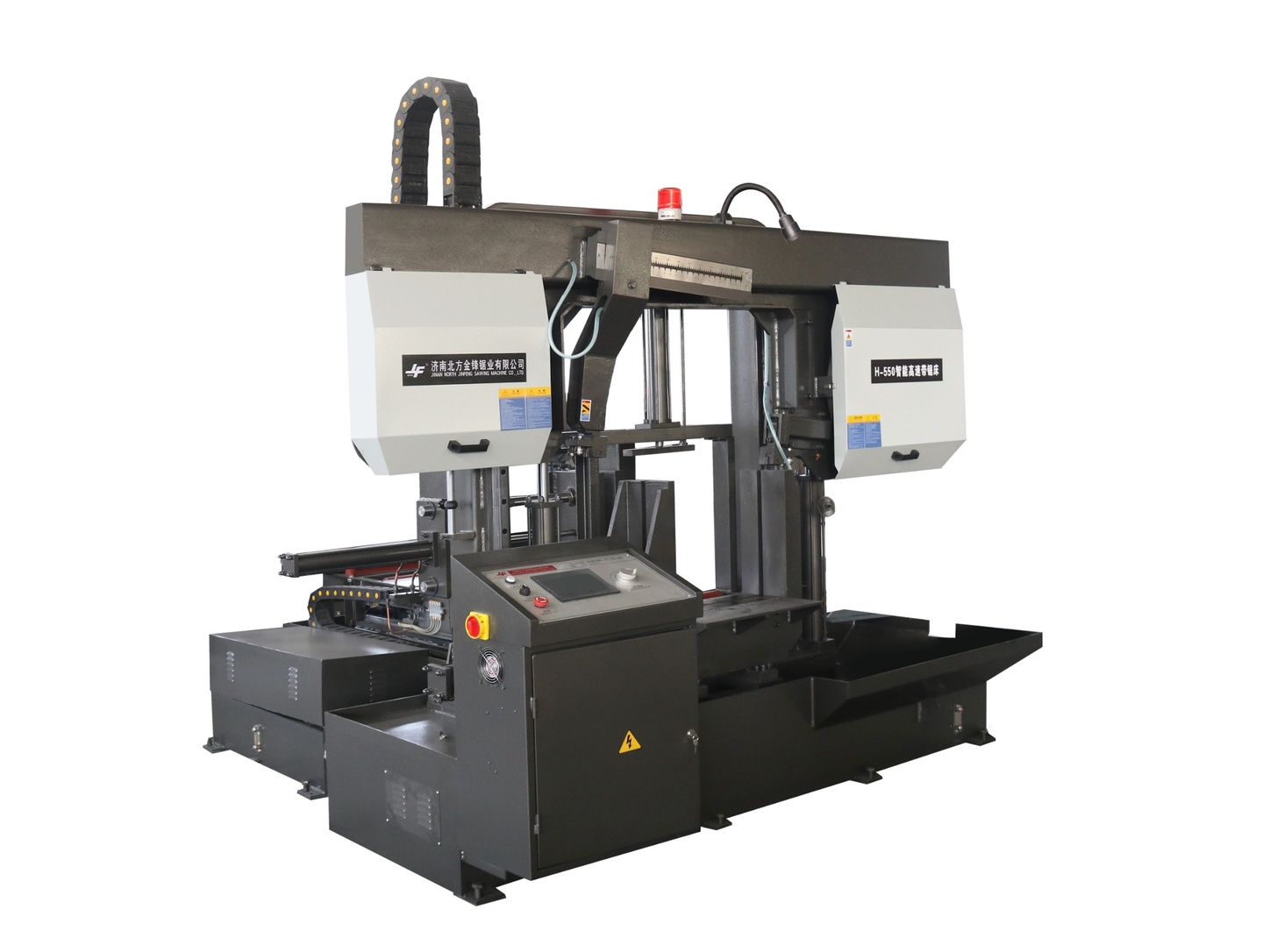

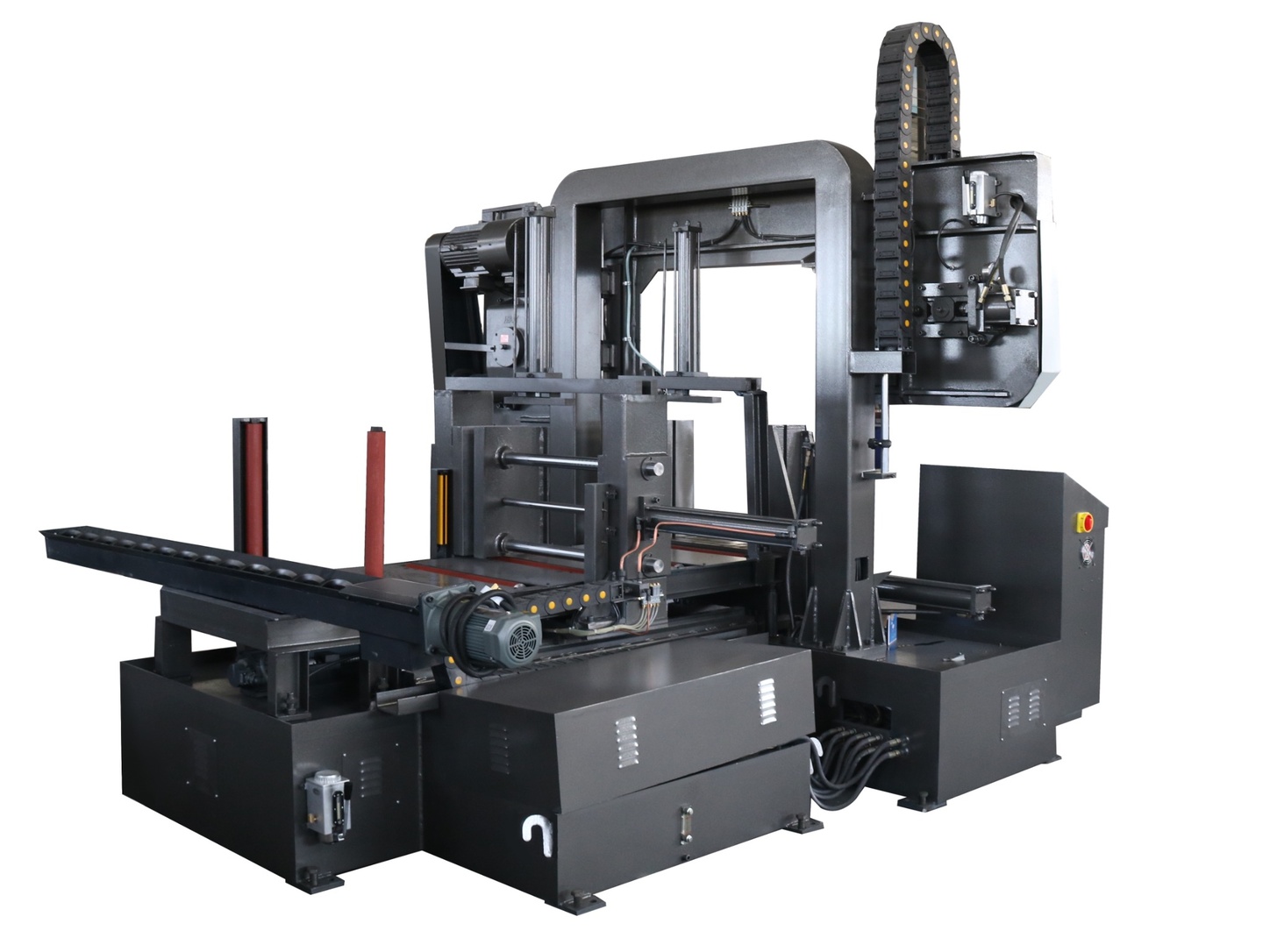

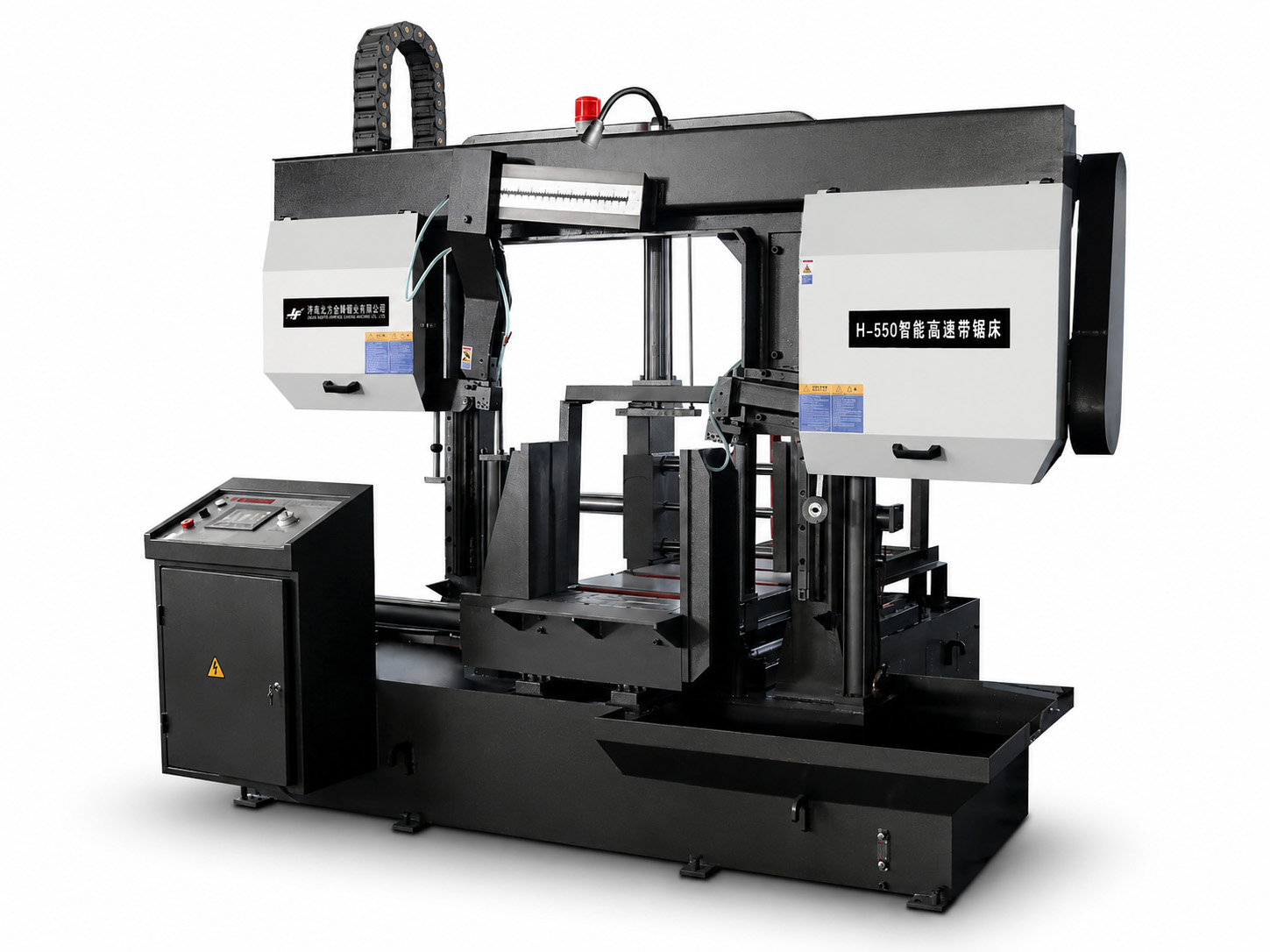

The H-550 intelligent CNC band saw machine is a newly developed electromechanical integrated sawing equipment with high automation, high cutting precision, and high efficiency. It is an ideal solution for batch cutting production.
Features:
✓ Intelligent PLC control system with touch screen operation interface. ✓ Servo feeding system with high positioning accuracy. ✓ Double-column gantry structure with stable cutting performance. ✓ Intelligent cutting program automatically adjusts feed speed according to cutting load. ✓ Hydraulic clamping structure ensures stable and reliable workpiece holding. ✓ Variable frequency blade speed adjustment for different materials. ✓ Carbide guide system effectively extends blade service life. ✓ Automatic chip brush cleaning system for continuous operation. ✓ Automatic feeding and repeated feeding for long material cutting. ✓ Hydraulic blade tensioning system with stable operation. ✓ Automatic blade break and overload protection alarm system. ✓ Equipped with automatic chip conveyor for centralized chip collection.
Typical Applications:
Mainly designed for high-efficiency cutting of round steel, square steel, structural steel, tubes, pipes, and large-section metal materials. Suitable for continuous batch production and intelligent metal cutting applications in industrial manufacturing workshops.
MODEL
H-550
Maximum Cutting Capacity(mm)
550×550mm
Feeding Length
1000mm (automatic repeated feeding for longer materials)
Feeding Type
Servo Feeding
Blade Speed
20~80m/min (Variable Frequency Speed Regulation)
Main Motor Power
7.5KW
Hydraulic Motor Power
1.5KW
Cooling Motor Power
0.09KW
Hydraulic Pressure
3-4.5MPa
Saw Blade Size
41×1.3mm
Length Accuracy
±0.2mm
Section Plane Accuracy(200mm)
0.2mm
Workpiece Clamping
Hydraulic Vise + Upper Press Device
Blade Tension
Hydraulic
Chip Removal System
Automatic Chip Conveyor
Machine Weight
About 4.0T
Cutting Control
Intelligent Constant Load Feed
Short Tail Material
Automatic: 470mm / Manual: 100mm
Optional Function
Automatic frequency conversion & intelligent speed adjustment
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
