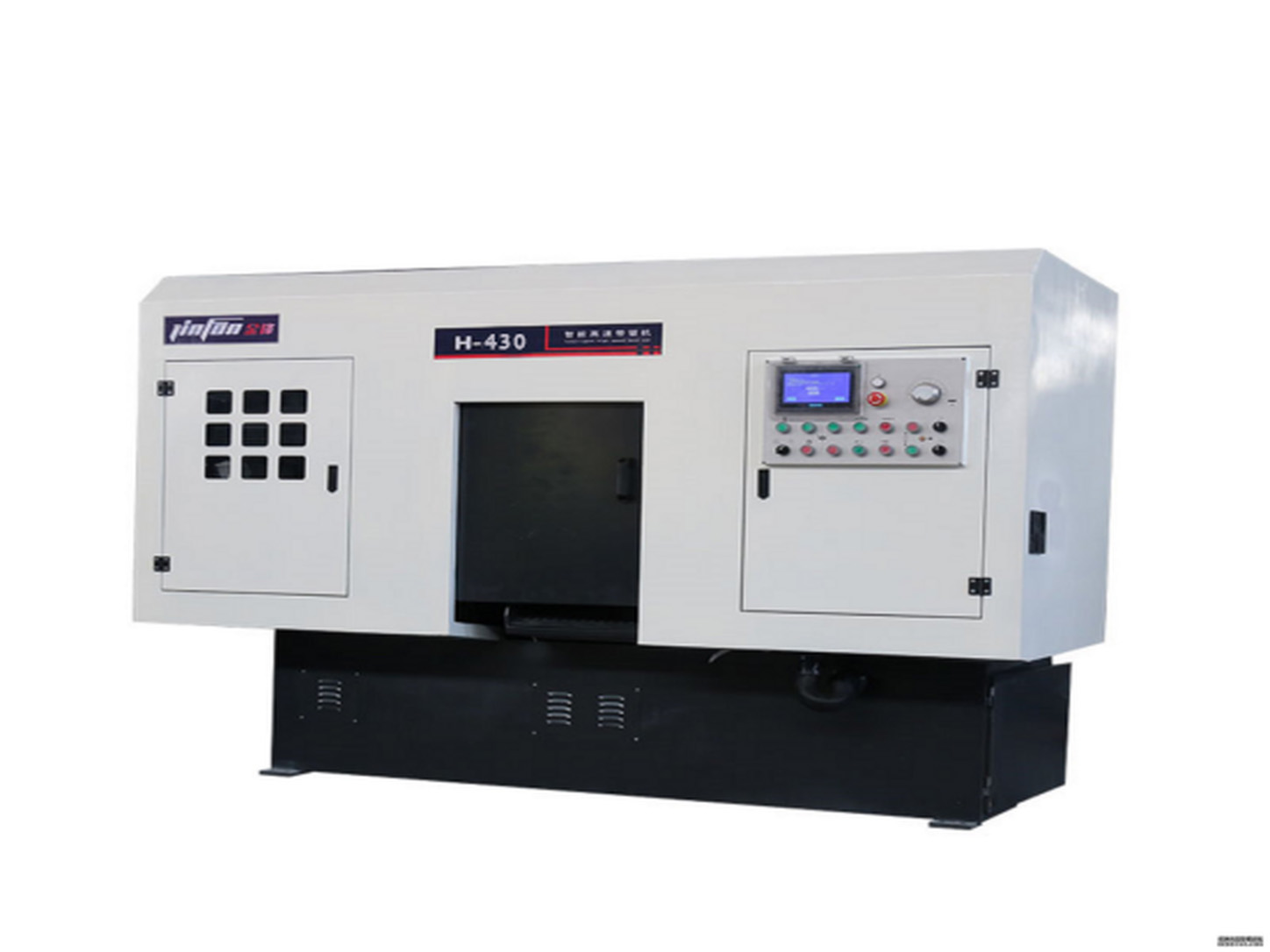

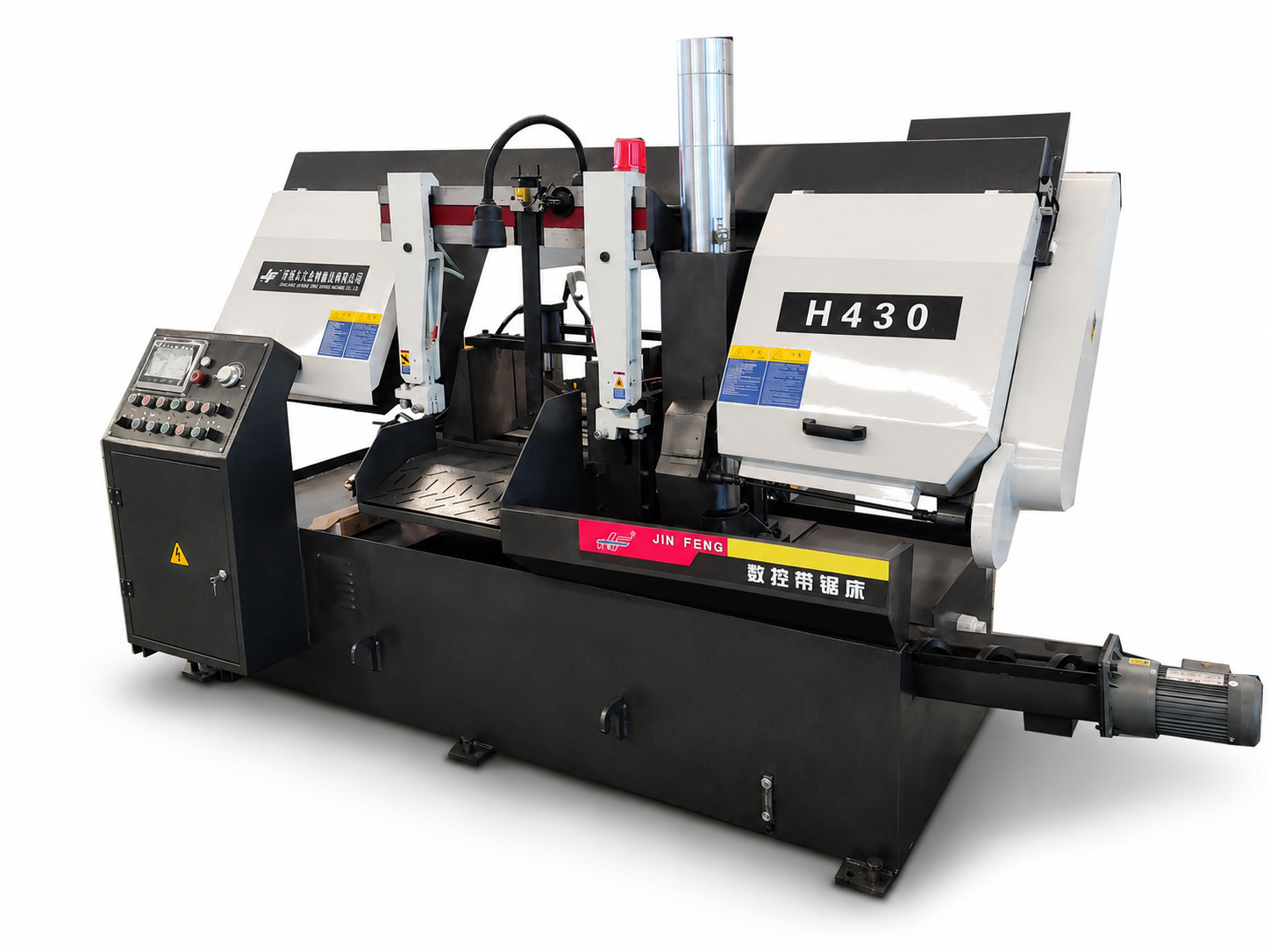

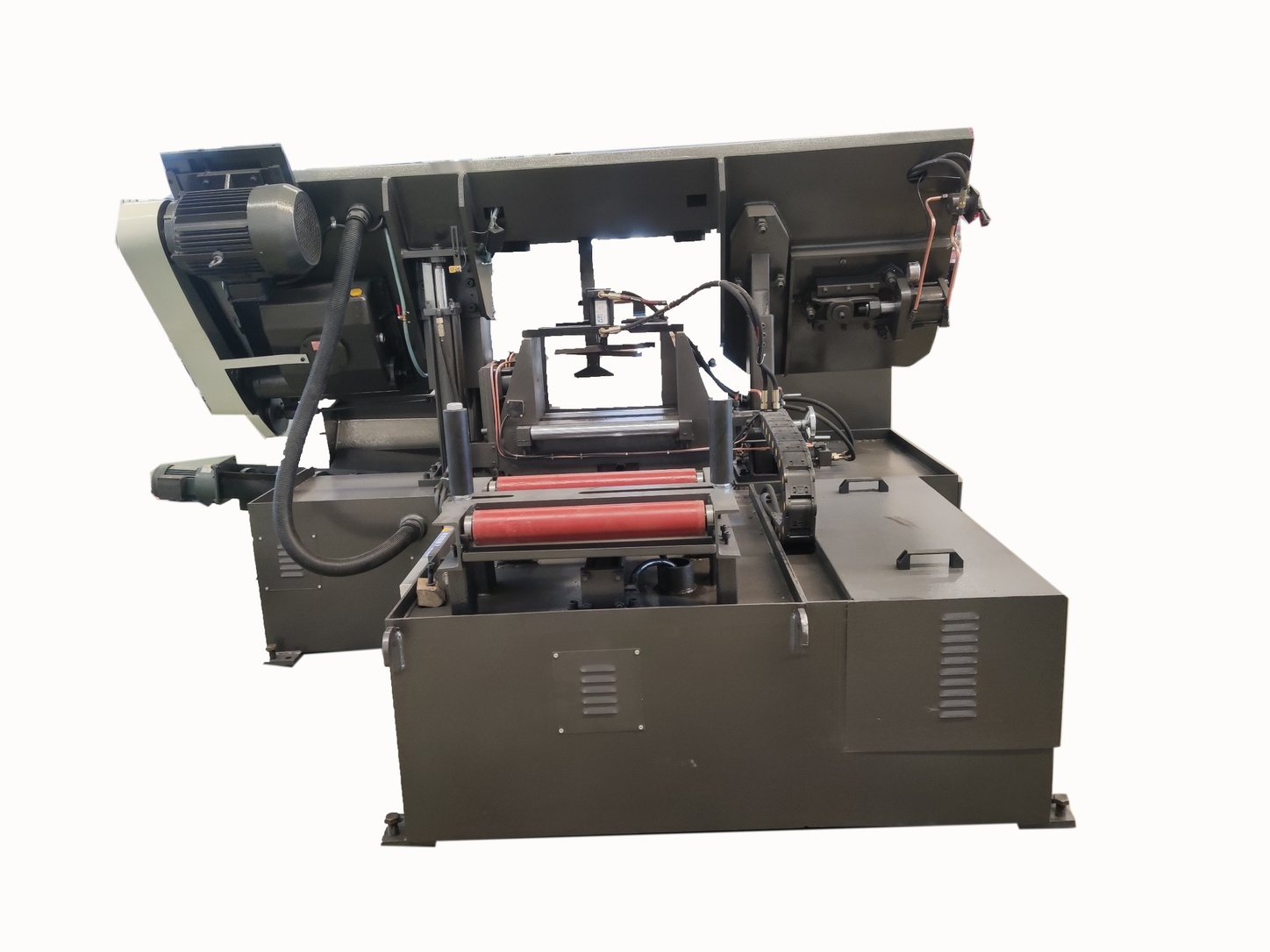

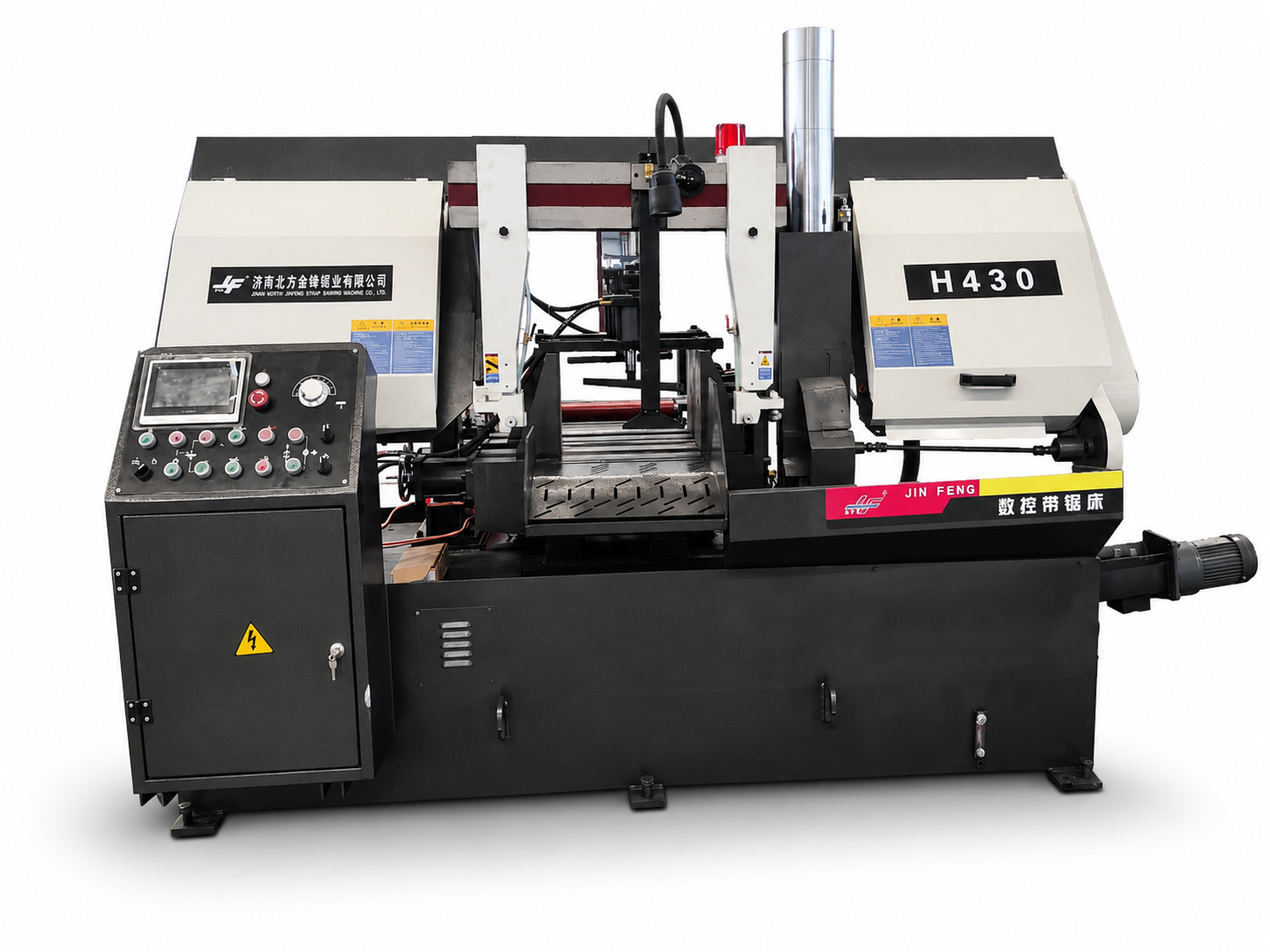

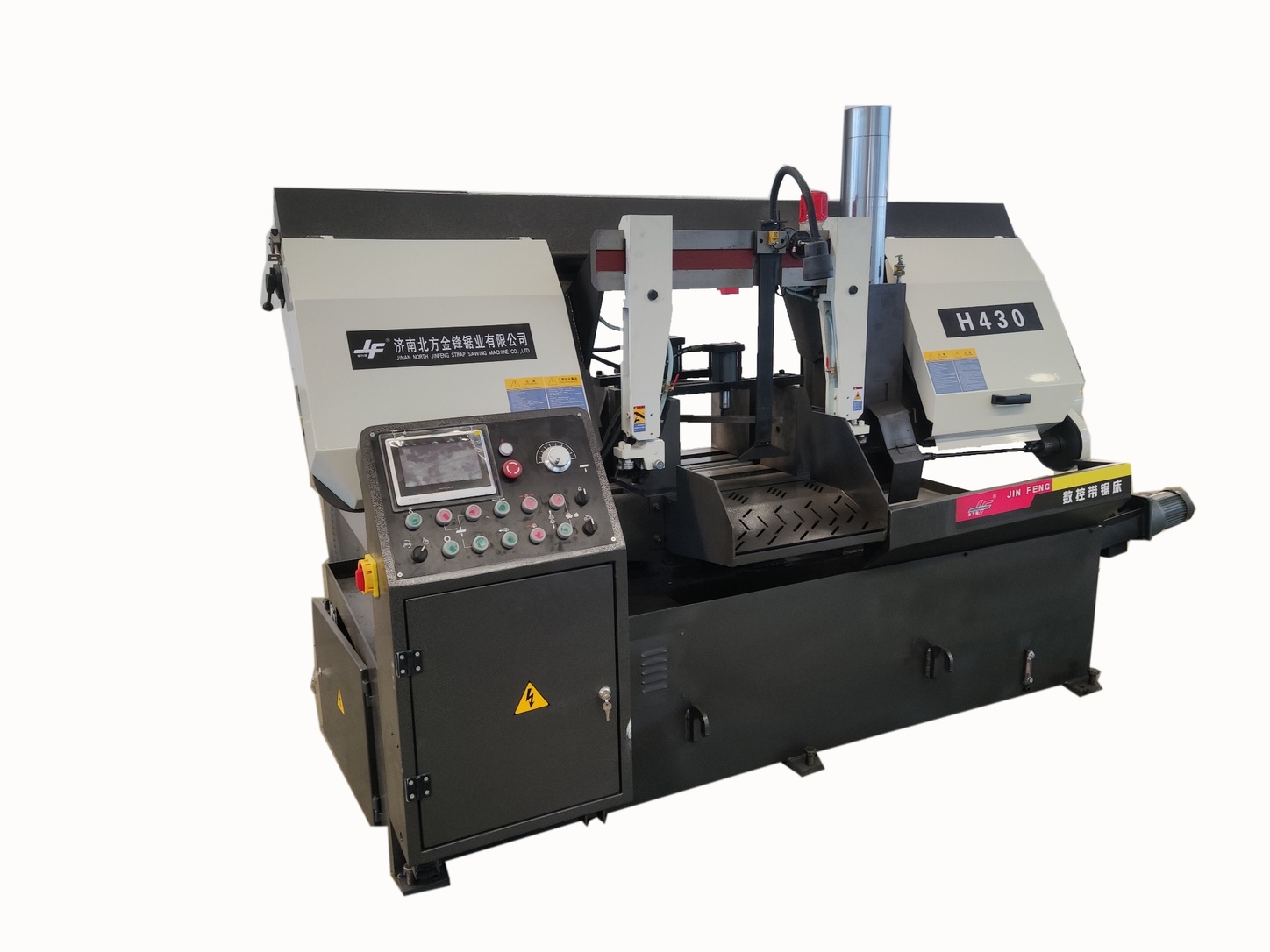

H-430 Intelligent CNC High-Speed Band Sawing Machine
Fully automatic CNC high-speed horizontal band sawing machine designed for high-efficiency and high-precision metal cutting applications. Suitable for continuous batch cutting operations in industrial production environments.
Features:
√ PLC control system with touch screen intelligent human-machine interface. √ Double column structure with hydraulic cylinder lifting system. √ Intelligent cutting feed system automatically adjusts cutting speed according to cutting force changes. √ Hydraulic vise clamping structure with upper material pressing device. √ Linear guide rail feeding system with grating ruler control. √ Variable frequency blade speed regulation system. √ Hydraulic blade tension system for stable cutting performance. √ Steel brush chip cleaning system with optional spiral chip conveyor. √ Automatic blade break and overload alarm stop function. √ Energy-saving electrical control system with reliable operation performance.
Typical Applications:
Mainly designed for cutting metal bars, tubes, pipes, and structural steel materials. Suitable for high-speed straight cutting applications in machinery manufacturing, steel fabrication workshops, automotive parts processing, and industrial metal production environments.
MODEL
H-430
Maximum Cutting Capacity (mm)
● Ø430mm
■ W430 × H430mm
Main Motor Power
7.5KW 380V/50HZ
Hydraulic Motor Power
1.5KW 380V/50HZ
Cooling Pump Motor
0.09KW 380V/50HZ
Saw Blade Size
5150 × 41 × 1.3mm
Saw Blade Tension
Hydraulic
Saw Blade Speed
20–80m/min (Variable Frequency Speed Regulation)
Feed System
Intelligent Automatic Feed Control
Clamping Method
Hydraulic
Feeding Method
Grating Ruler Control + Linear Guide Feeding
Worktable Load Capacity
5000kg
Main Transmission Structure
Worm Gear Reducer
Vise Height
300mm
Maximum Single Feeding Length
500mm
Remaining Material Length
≤300mm
Single Feeding Accuracy
＜±0.2mm
Chip Removal System
Spiral Chip Conveyor
Control System
PLC + Touch Screen HMI
Alarm Protection
Blade Break & Overload Automatic Stop
All machinery models are fully customizable
We offer highly flexible customization to meet your diverse needs. All machine dimensions and colors are fully customizable, and the voltage can be modified upon request. Furthermore, every unit can be tailored to align perfectly with your specific production processes.
